| Accessory Type | : | Replacement Integrated Furnace Control |
| Amperage Rating | : | 0.45 A |
| Depth | : | 1-1/4 in |
| Domestic/Import | : | Import |
| Gas Type | : | Natural, Manufactured, Mixed, LP Gas |
| Height | : | 7 in |
| Igniter Warm-Up Time | : | 17 s |
| Mounting Type | : | Surface |
| Voltage Rating | : | 25 VAC |
| Width | : | 4.825 in |

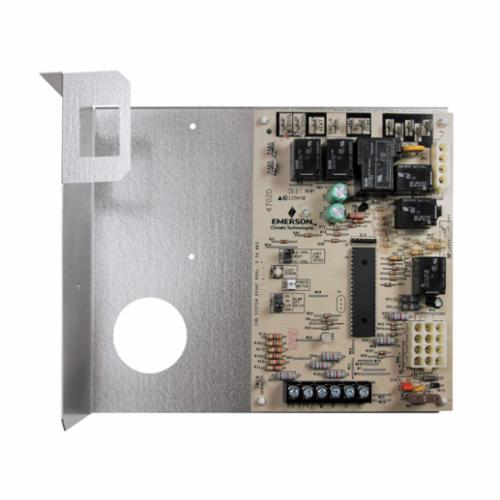

The 50A56-956 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
White-Rodgers™ Replacement Integrated Furnace Control, Accessory Type: Replacement Integrated Furnace Control, 25 VAC, 0.45 A, Natural, Manufactured, Mixed, LP Gas Gas, 17 s Igniter Warm-Up, Surface Mounting, 4.825 in Width, 1-1/4 in Depth, 7 in Height, Import
- System diagnostics LED with fault recall
- Twinning connection
- Fused to protect low voltage system transformers
- Selectable continuous fan speed
- Third fan speed
- Two stage cooling Y2 input
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 77 deg F electrical rating
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- 1 uA DC min current
- 0.10 uA DC max current
- 100 M ohm leakage resistance
- Maximum timing specification
- 0.8 sec flame establishing
- 2 sec flame failure response
