| Coil Voltage | : | 24 V |
| Domestic/Import | : | Import |
| Gas Type | : | Liquid Propane/Natural Gas |
| Ignition Type | : | HSI/DSI |
| Nominal Capacity | : | 140000 Btu/hr |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | 36J |
| Temperature Rating | : | -40 to 175 deg F |
| Type | : | 2-Stage |

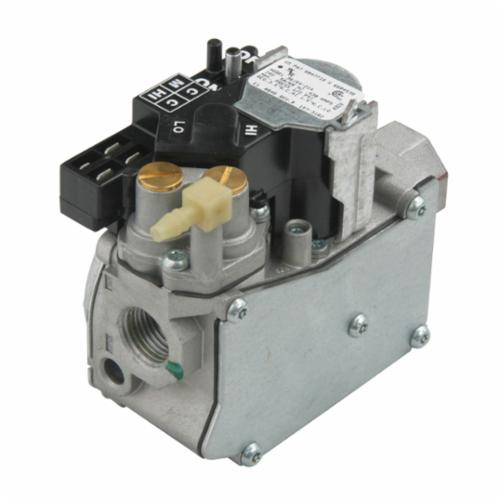

The 36J is a combination gas control valve designed for use with non-piloted intermittent ignition systems. the control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.
White-Rodgers™ Gas Valve, 2-Stage, Series: 36J, 1/2 in Nominal, 0.5 psi Pressure, HSI/DSI Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F, Import
- Fast opening
- Hi-Fire regulator calibrated to 3-1/2 in +/-0.3 in W.C. at 100000 KBtu/hr (natural gas)
- Lo-fire regulator calibrated to 1.5 +/- 0.3 in W.C
- Quiet redundant
- 0.43 A
- 1-1/2 to 3-1/2 in (low to high) regulator setting
- Straight-thru
- Filter screen
- Replaces 36G54-214
- For non-piloted intermittent ignition systems
- 226800 Btu/hr LPG nominal capacity
