Wagner by Diversitech WG840727

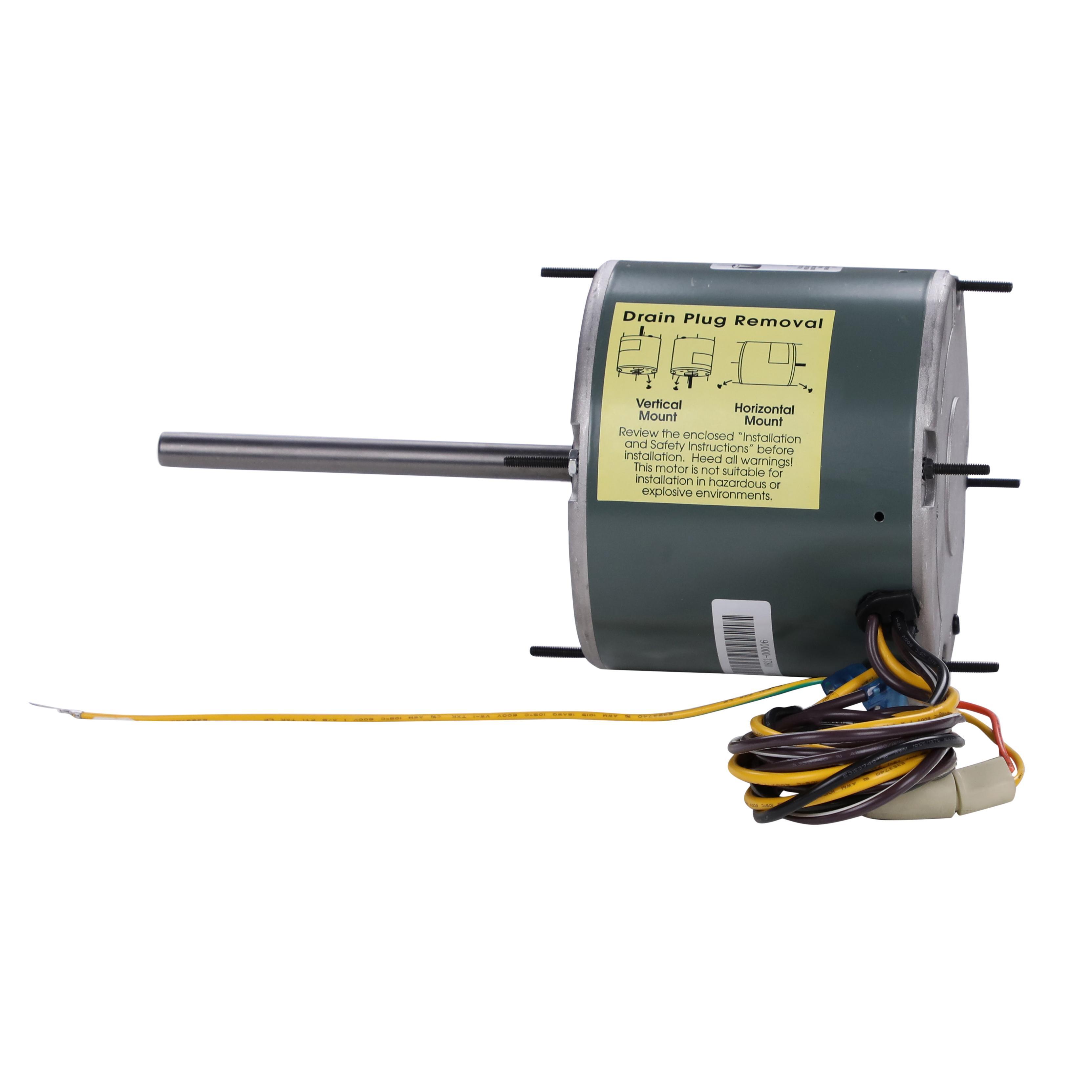

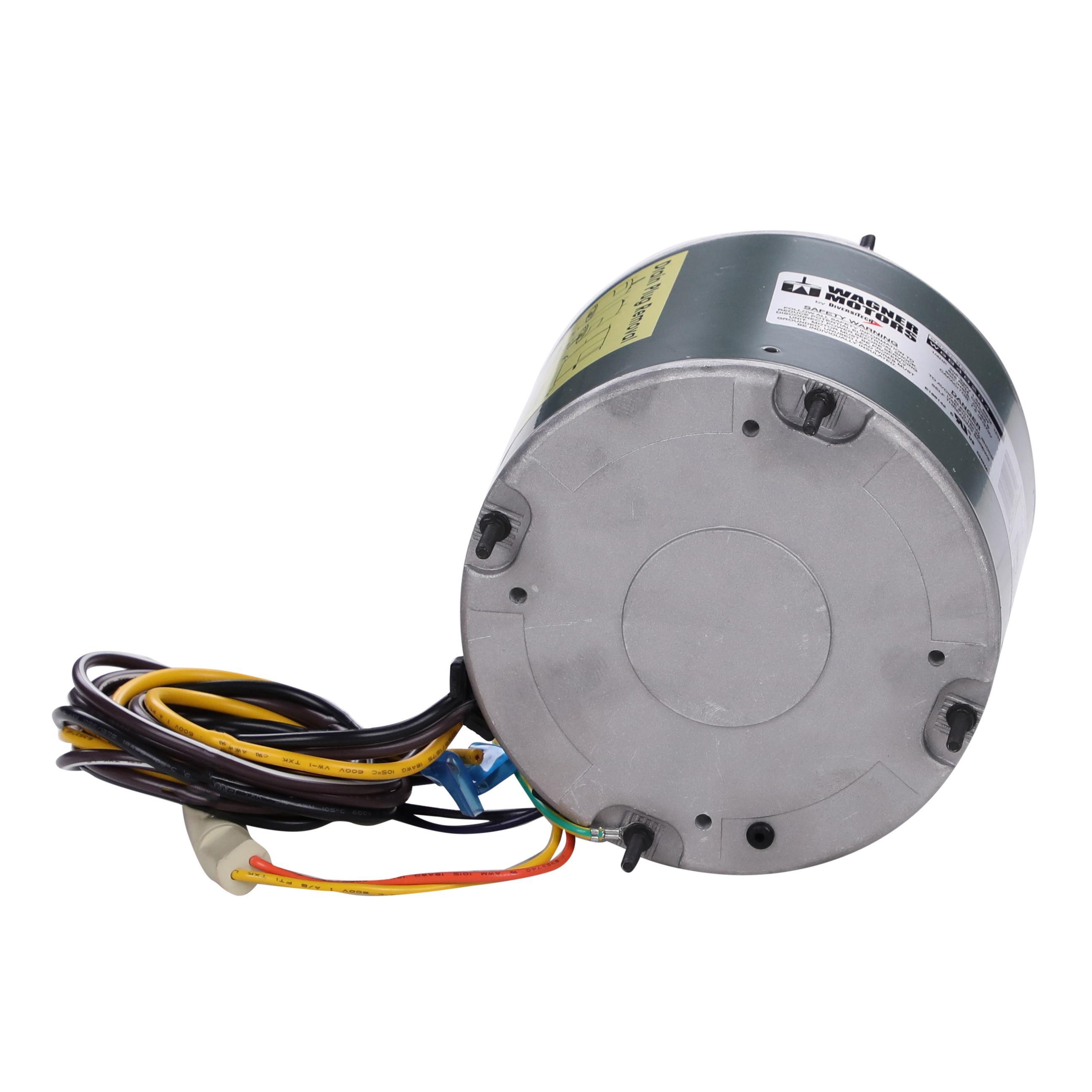

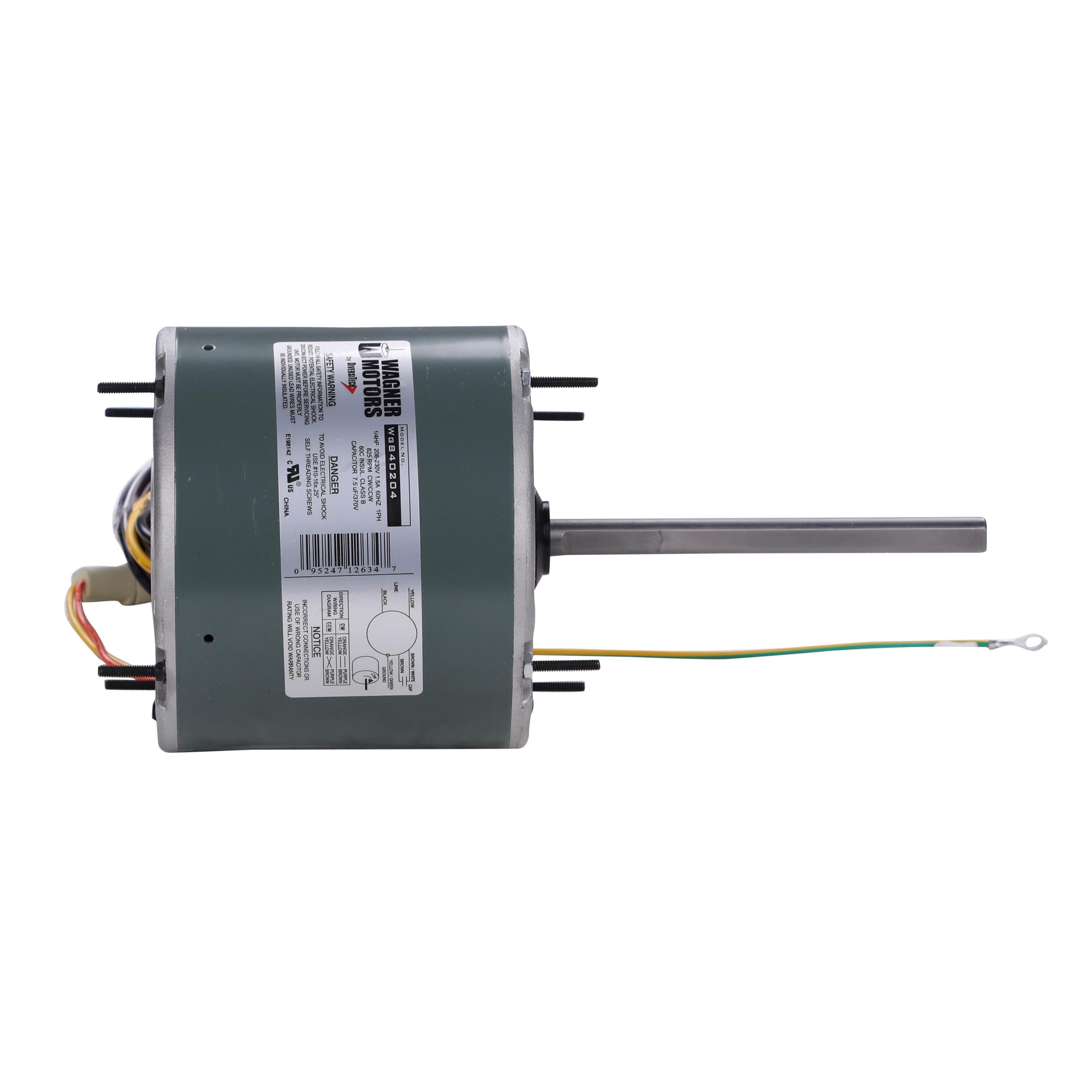

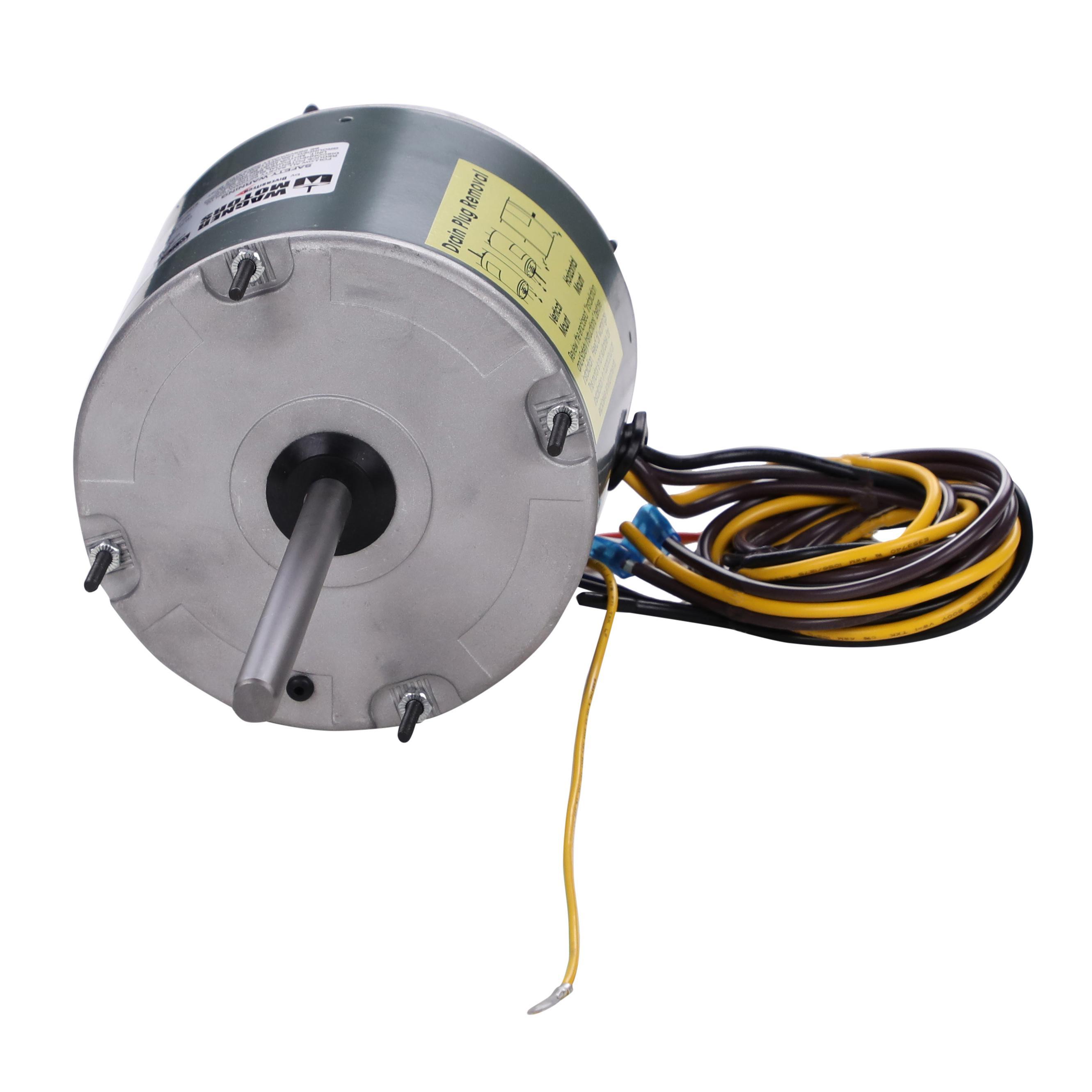

Wagner by Diversitech WG840727 Condenser Fan Motor, TEAO Enclosure, 1/6 hp, 208 to 230 VAC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
| Amperage Rating | : | 1.3 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5.59 in Dia x 10.584 in L |
| Enclosure Type | : | TEAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/6 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band/Shaft Up/Down |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 208 to 230 VAC |
This Wagner® WG840727 Condenser Fan Motors, Single Speed, 1/6HP, 1075/1 RPM, 1.2FLA, 208-230V, 60C ambient condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in. leads and operates on 60 Hz frequency with low power consumption.
Wagner by Diversitech Condenser Fan Motor, Condenser Fan Motors Application, 1/6 hp, 208 to 230 VAC, 1.3 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TEAO Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, Belly Band/Shaft Up/Down Mounting, 140 deg F, Insulation Class: Class B, 5.59 in Dia x 10.584 in L Dimensions
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
