Wagner by Diversitech WG840585

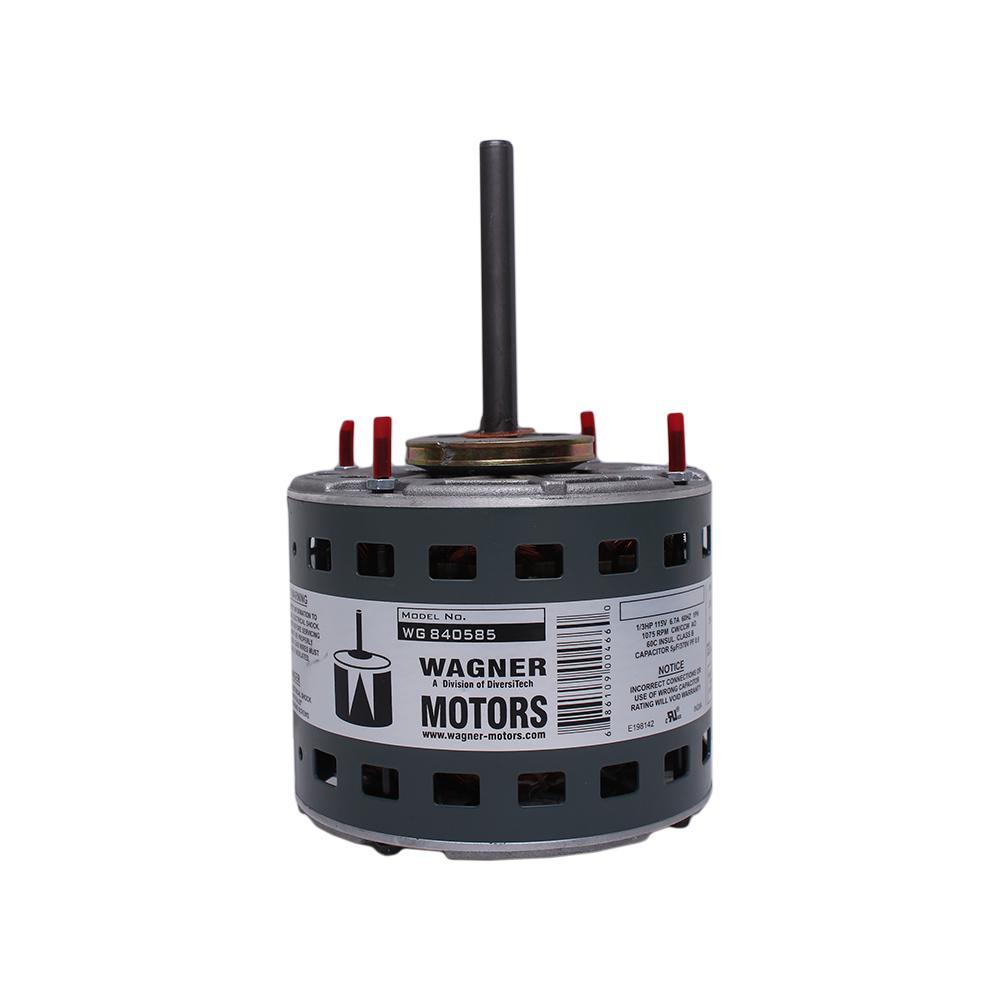

Wagner by Diversitech WG840585 Direct Drive Furnace Blower Motor, OAO Enclosure, 1/3 hp, 115 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Belly Band/Shaft Up/Down Mount
| Amperage Rating | : | 6.7 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5.59 in Dia x 9.39 in L |
| Enclosure Type | : | OAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/3 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Belly Band/Shaft Up/Down |
| Number of Speeds | : | 3 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 4-1/2 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 115 V AC |
This Wagner® WG840585 Direct Drive Furnace Blower Motors, 1/3hp, 1075/3 RPM, 5.0FLA, 115V motor installs with all standard 48 frame mounting brackets. It is protected by an automatic overload and class B insulation. The motor is electrically reversible and features 36 in. leads to ease installation.
Wagner by Diversitech Direct Drive Furnace Blower Motor, Condenser Fan Motors Application, 1/3 hp, 115 V AC, 6.7 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, 1 Service Factor, Sleeve Bearing, Belly Band/Shaft Up/Down Mounting, 140 deg F, Insulation Class: Class B, 5.59 in Dia x 9.39 in L Dimensions
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption
- Ball bearing design allows for greater heat endurance, improved performance, increased reliability, and enhanced motor life
- Extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
