System Sensor® RTS2-AOS

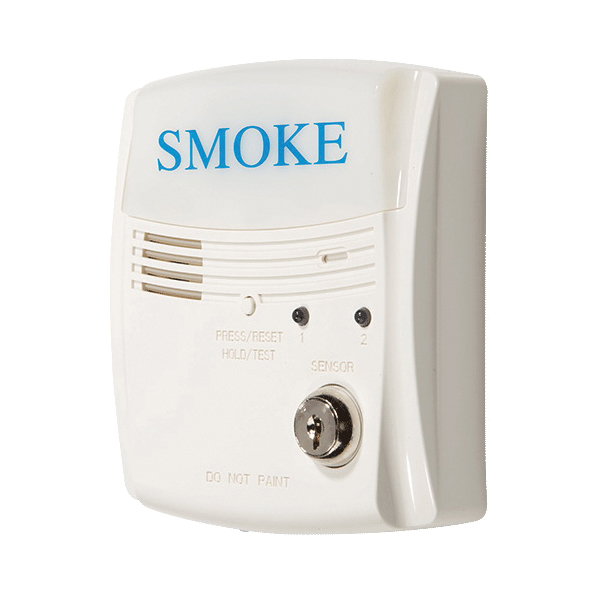

System Sensor® Innovair Flex® RTS2-AOS Multi-Signaling Unit, LED Display, 85 dB at 10 ft

Manufacturer: System Sensor
Brand Name: System Sensor®
Part#: RTS2-AOS
MPN: RTS2-AOS
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Audible Alert      :      85 dB at 10 ft
Color      :      White
Dimensions      :      5.3 in H x 4.8 in W x 1.6 in D
Display Type      :      LED
Humidity Rating      :      95%
Operating Temperature      :      14 to 140 deg F

The National Fire Protection Association (NFPA) has published codes, standards, and recommended practices for the installation and use of this product. It is recommended that the installer be familiar with theses requirements, with local codes, and any special requirements of the local authority having jurisdiction. For further information, consult NFPA 72 and 90 A requirements. The system sensor RTS2 and RTS2-AOS multi-signaling accessories are designed for use with system sensor InnovairFlex 4-wire conventional duct smoke detectors only. The accessory has two bi-colored LEDs that indicate the sensor status of up to two connected duct smoke detectors. The key switch on the unit can be used to select a connected duct detector sensor (either sensor 1 or sensor 2), and the selected sensor can be tested or both sensors can be reset simultaneously using the test/reset button. LED status indications include, standby (green blink), trouble (amber), maintenance (amber blink) and alarm (red). With the key switch selected, there is also the capability of obtaining a sensitivity measurement of the selected sensor using the SENS-RDR sensitivity reader (sold separately).

System Sensor® Innovair Flex® Multi-Signaling Unit, 85 dB at 10 ft Alert, 95% Humidity Rating, LED, 14 to 140 deg F Operating, White, 5.3 in H x 4.8 in W x 1.6 in D

  • RTS2-AOS is a multi-signaling accessory, with strobe, designed to work with InnovairFlex 4-wire conventional duct smoke detectors, AOS stands for Add On Strobe
  • Standby (green blink), trouble (amber), maintenance (amber blink) and alarm (red) LEDs to indicate detector status
  • Keyswitch to select desired sensor, enable test/reset button and sensitivity reading
  • Test/reset button
  • Selectable continuous or temporal tone

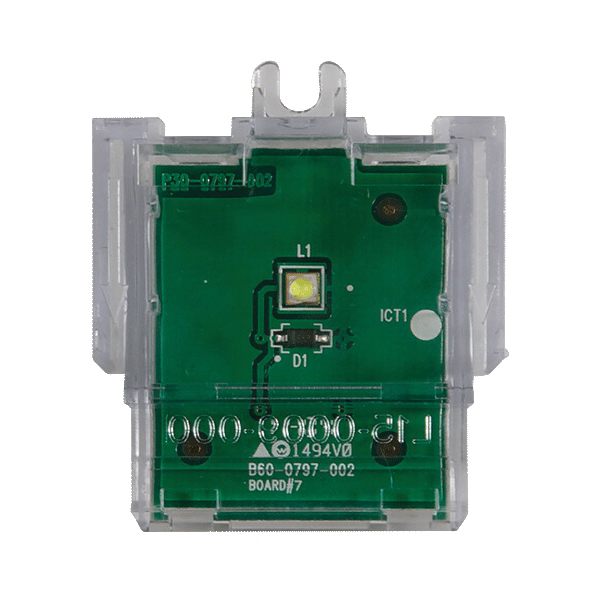

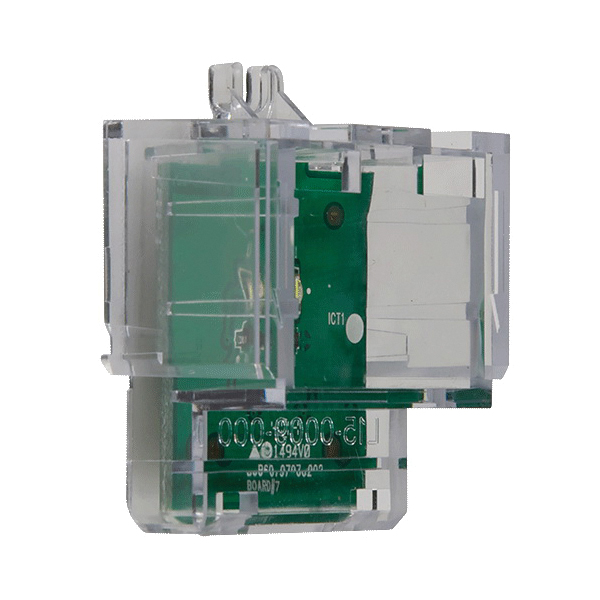

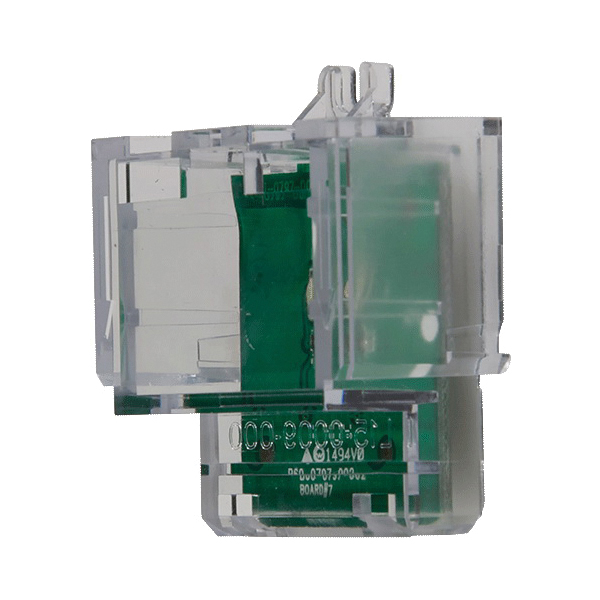

  • AOS add on strobe (included on RTS2-AOS model)
  • Provisions for single or double gang box mounting
  • Ability to discretely monitor two sensors when duct smoke detectors are configured in a 2 to 1 set up (See InnovairFlex duct smoke detector manual for reference)
  • Sounder 85 dBA at 10 ft
  • 20 to 29 VDC
  • Strip terminal, 22 to 14 AWG wire connections
