| Amperage Rating | : | 8 FLA |
| Capacity | : | 175000 Btu/hr |
| Dimensions | : | 37-1/4 in D |
| Domestic/Import | : | Domestic |
| Flow Rate | : | 2850 cfm |
| Frequency Rating | : | 60 Hz |
| Gas Connection | : | 1/2 in |
| Gas Type | : | Natural Gas |
| Power Rating | : | 1/3 hp |
| Series | : | TF Series |
| Temperature Rating | : | 46 deg F |
| Type | : | Tubular Design Power Vented |
| Voltage Rating | : | 120 VAC |

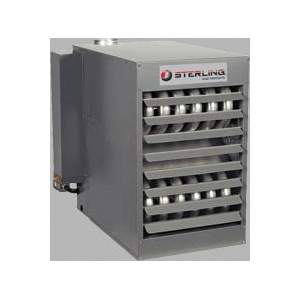

The Tubular unit heater (Model TF) is a propeller type unit heater that combines the latest tubular heat exchanger and in shot burner technology with the quality and reliability you have come to know with Sterling.
STERLING Gas Fired Unit Heater, Tubular Design Power Vented, Series: TF Series, 175000 Btu/hr Capacity, 120 VAC, 8 FLA, 60 Hz Frequency, 1/3 hp Power, 2850 cfm Flow Rate, Natural Gas, 1/2 in Gas Connection, 46 deg F, 37-1/4 in D, Domestic
- Up to 83%+ thermal efficiency
- 20 gauge tubular heat exchangers
- 9 sizes ranging from 100 to 400 MBH
- Inshot type burner
- Hot surface pilot ignition system
- 20 ga jacket panels with baked enamel finish
- Power vented
- Easy access control panel
- Certified for category I and III venting
- Terminal strip low voltage wiring
- Factory fire tested
