| Coil Voltage | : | 208/240 VAC |
| Dimensions | : | 2.87 in W x 4.04 in D x 3.11 in H |
| Frequency Rating | : | 50/60 Hz |
| Maximum Load Current | : | 75 FLA |
| Number of Poles | : | 3 |
| Series | : | 780 |
| Type | : | Definite Purpose |

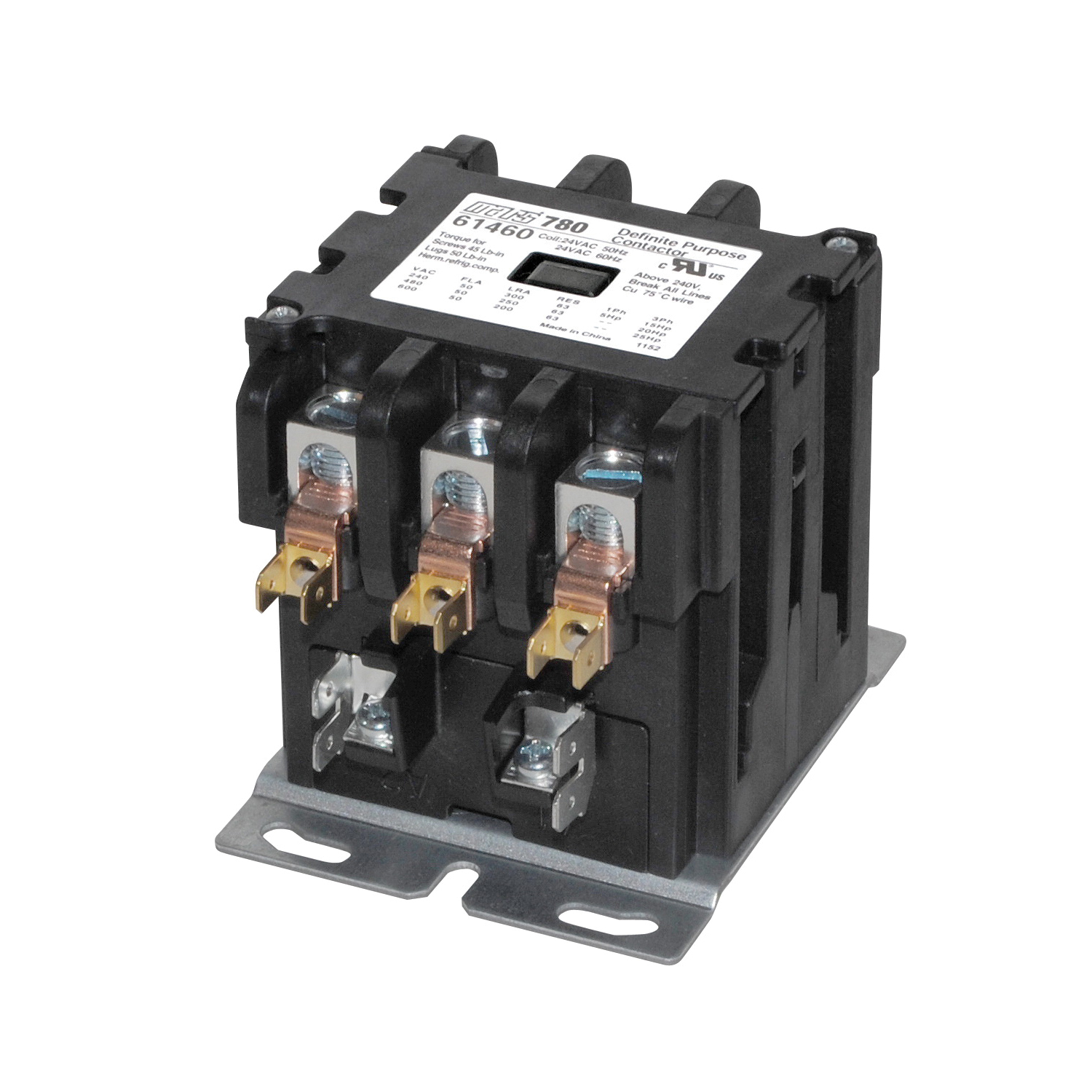

Mars® 780 - 3-pole contactors are designed for demanding applications. The enclosed body design provides quiet operation and improved durability by reducing the intrusion of dust and dirt. Side attachment rails for auxiliary switches (30 to 60 A contactors) allow attachment of Mars® 780 or Furnas auxiliary switches. Silver-cadmium oxide contacts provide increased contact life when switching inductive loads.
Siemens/Furnas by Mars® Contactor, Definite Purpose, Series: 780, 208/240 VAC Coil, 75 FLA Maximum Load Current, 3 Pole, 50/60 Hz, 2.87 in W x 4.04 in D x 3.11 in H
- Large arch window box lugs
- Recessed push to test button
- Enclosed body design
- Use standard Mars® 780 replacement coils
- Dual QC coil terminals plus screw terminal for easy termination and jumper arrangements
- Class F insulation and foot print compatible
- Replacement of Siemens Furnas DP contactors - 42EF35AG
- 60 A full load/75 A non-inductive
