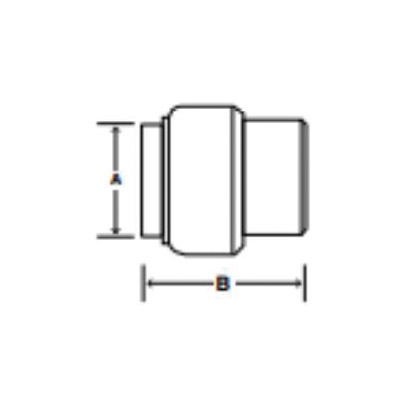

| Dimensions | : | 1.32 in L |
| Domestic/Import | : | Import |
| End Style | : | Push-Fit |
| Finish | : | Natural Brass/Polished Chrome |
| Fitting/Connector Type | : | Cap |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 200 deg F |

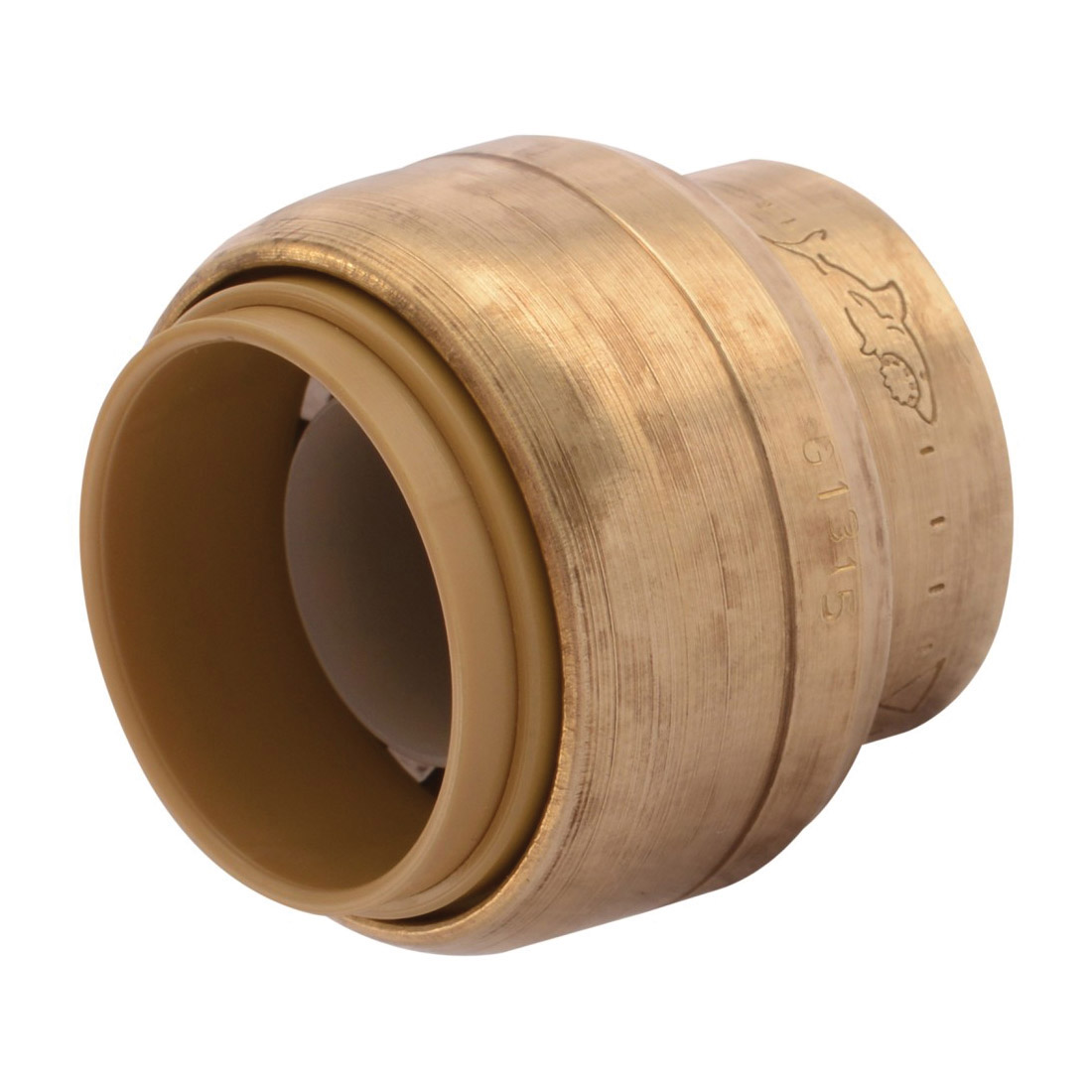

SharkBite® End Caps are push-to-connect and are the easiest way to cap off your Copper, PEX, CPVC or PE-RT pipe lines. There is no soldering, clamps, unions or glue required. These fittings are great for stub outs and pressure testing a home as they take no time to cure. They are easily removed with a Disconnect Clip. All SharkBite® fittings are capable of being installed on either wet or dry pipe. This product is rated for up to 200 psi and 200 deg F.
Sharkbite® Pipe End Cap, Fitting/Connector Type: Cap, 3/4 in Nominal, Push-Fit, 200 psi, 200 deg F, Brass, Natural Brass/Polished Chrome, 1.32 in L, Import
- Instant push-fit connection for increased ease-of-use: no soldering, clamps, unions or glue required
- Fittings certified to 200 psi and 200 deg F (93 deg C) - Proven durability and quality
- Fits copper tubing and CTS CPVC and PEX - Connects all three types in any combination
- Integral pipe liner for PEX installations - Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed inspector friendly, peace of mind
- Compact, robust lead free DZR brass body: Foundation of a strong, corrosion resistant, durable fitting
- Design certified to NSF/ANSI 61, NSF/ANSI 14 and ASSE 1061 product standard for used in potable water and hydronic heating water distribution quality engineered and manufactured
- Approved to be used underground and behind walls without access panels
- Designed for hydronic heating as well as potable water distribution
- EPDM O-ring
- Stainless steel grab ring
- Polysulfone tube support liner
- Potable water service
- For use with copper, CPVC and pex pipe
- 1-1/8 in D insertion
