Sharkbite® SB343414V

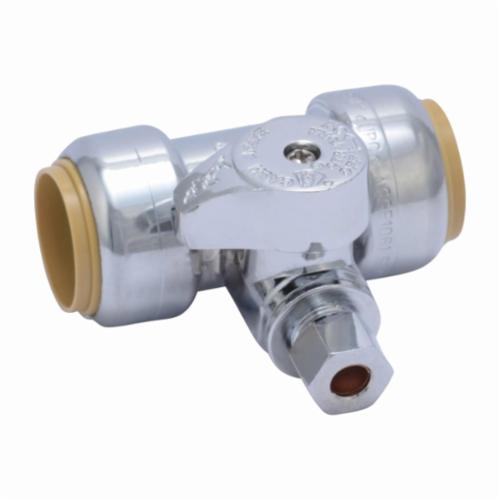

Sharkbite® 24985 1/4 Turn Tee Stop, 3/4 x 3/4 x 1/4 in Nominal, SB x SB x Compression End Style, 200 psi Pressure, Brass Body, Import
| Body Material | : | Brass |
| Dimensions | : | 3.61 in L |
| Domestic/Import | : | Import |
| End Style | : | SB x SB x Compression |
| Media | : | Water |
| Nominal Size | : | 3/4 x 3/4 x 1/4 in |
| Pressure Rating | : | 200 psi |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | 200 deg F |
| Type | : | 1/4 Turn |
The Sharkbite® Tee Stop combines a Sharkbite® Push-to-Connect tee with a 1/4 in Compression line and a quarter turn valve for easy on/off control of the supply line. This product is particularly useful for adding supply lines to fixtures such as dishwashers, humidifiers and ice makers. The Tee Stop also commonly serves as an alternative to a saddle valve. It can be used on Copper, PEX, CPVC or PE-RT tubing. The valve is easily rotated after assembly for easy installation, even in tight spaces.
Sharkbite® Tee Stop, 1/4 Turn, 3/4 x 3/4 x 1/4 in Nominal, SB x SB x Compression, 200 psi, Media: Water, Brass Body, EPDM, 200 deg F, 3.61 in L, Import
- Instant push-fit connection for increased ease of use-no soldering, clamps, unions or glue required
- Fits copper tubing, CTS CPVC, PEX and PE-RT pipe-connects all four types in any combination
- Integral tube liner for PEX installations-means no loose components and ensures a secure, reliable connection
- Stainless steel grade 316 grab ring
- Veradel tube support liner
- EPDM O-ring
