| Bearing Type | : | Ball |
| Duct Size | : | 10 in Dia |
| Frequency Rating | : | 60 Hz |
| Housing Material | : | Die Cast Aluminum |
| Length | : | 15-3/16 in |
| Motor Speed | : | 3200 rpm |
| Motor Type | : | 1-ph Induction Asynchronous |
| Number of Speeds | : | 2 |
| Power Rating | : | 241 W |
| Series | : | TD Series |
| Temperature Rating | : | 140 deg F |
| Voltage Rating | : | 120 VAC |

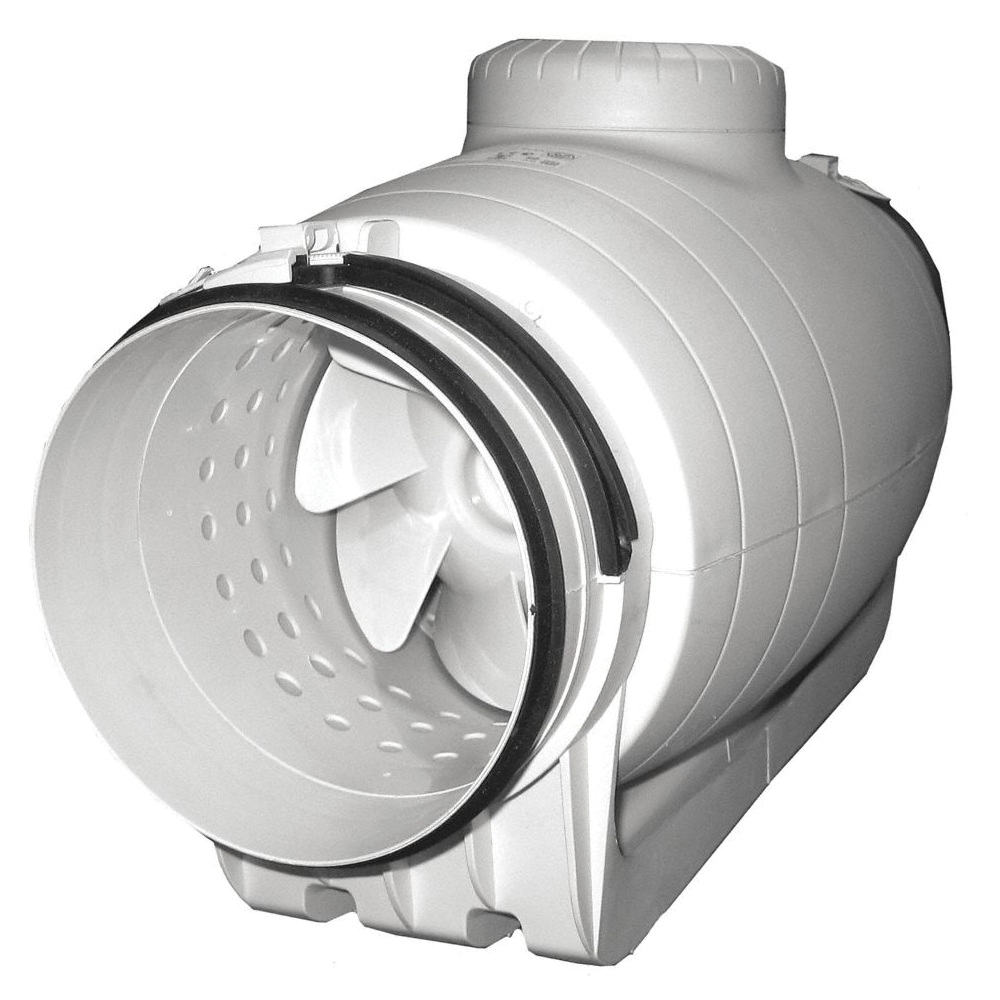

The TD-MIXVENT series of in-line duct fans have been specially designed to maximize the airflow performance with minimal noise levels within the smallest and most compact of housing sizes. This makes the TD-MIXVENT series the ultimate solution for small to medium sized ventilation installations which require a high airflow to pressure ratio and occupy only the minimum space possible. Example: false ceiling voids, cabinets and many other limited space environments.
S&P Inline Mixed Flow Duct Fan, Series: TD Series, 120 VAC, 241 W Power, 10 in Dia Duct, 2 Speed, 15-3/16 in Length, 140 deg F, 60 Hz Frequency, 1-ph Induction Asynchronous Motor, 3200 rpm Motor, Ball Bearing, Die Cast Aluminum Housing Material
- Exhaust air up to 2,630 cfm with static pressure capabilities to 1 in w.g
- Mixed flow impeller for excellent air flow to pressure performance ratio
- Direct connection, two-speed motor
- Ideal for applications where space is limited
- AMCA seal for air performance
- Model TD-MIXVENT is available in our Quickship program, all sizes are available for next day shipping from stock
- 5 year fan housing and motor warranty
- Class B motor insulation
- IP 44 protection
- Sealed for life, ball bearings
- Suitable for working airstreams up to 140 deg F
- Class l electrical insulation
- Thermal overload protection
