| Coil Voltage | : | 24 V |
| Gas Type | : | Liquid Propane/Natural Gas |
| Ignition Type | : | Pilot |
| Nominal Capacity | : | 150000 Btu/hr |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | 720 |
| Temperature Rating | : | -40 to 175 deg F |

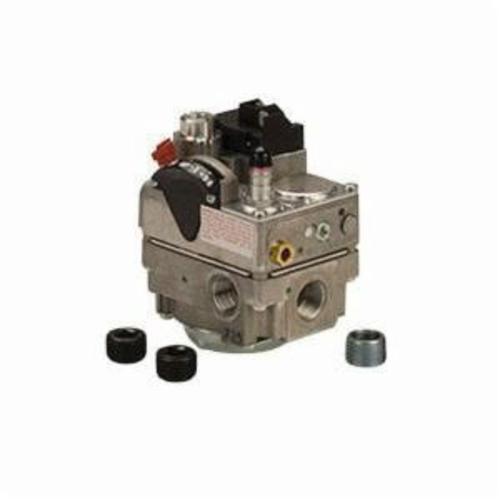

The Robertshaw® 720 Series 24 V Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5 in WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16 in swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.
Robertshaw® Gas Valve, Series: 720, 1/2 in Nominal, 0.5 psi Pressure, Pilot Ignition, 150000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F
- Gas cock dial marking off-pilot-on
- Pilot outlet 1/4 in tubing
- Combination screw/spade terminal type
- Maximum inlet pressure 14 in WC (0.5 psi)
- Standard NEMA terminals
- Inlet filtered screen
- Various gas types - Natural, manufactured, mixed, LP and LP/air mixtures
- Multiple actuators available
- 3-1/2 in WC natural or 11 in LP convertible gas pressure regulation
- (1) 1/2 x 3/8 in NPT reducer bushing
- 1/2 in FPT side outlets with plugs
- Comments - step opening for mobile home
- Factory part number - 7200ERCS
- 24 VAC at 0.5 A, 50/60 Hz
