Resideo VR8345M4302

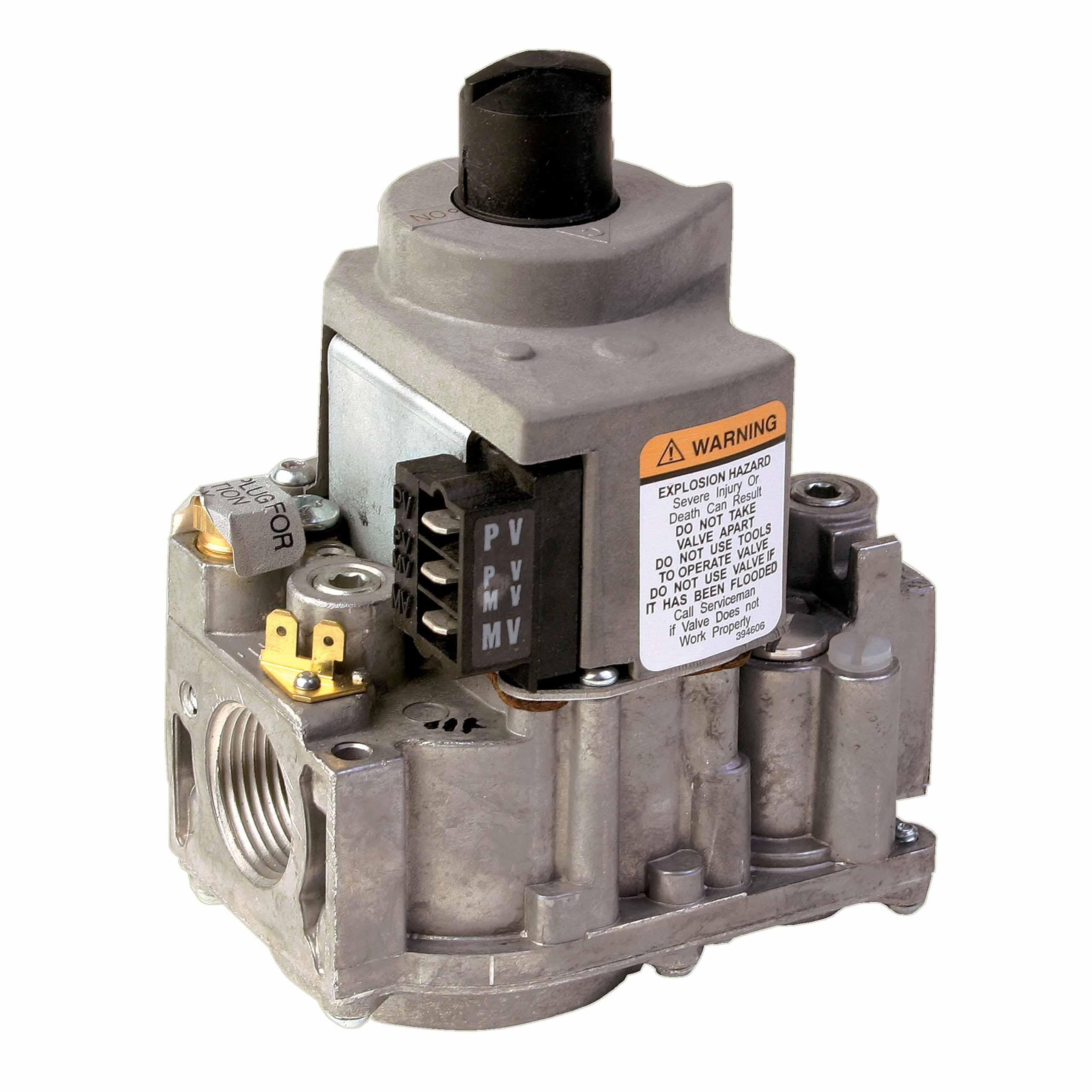

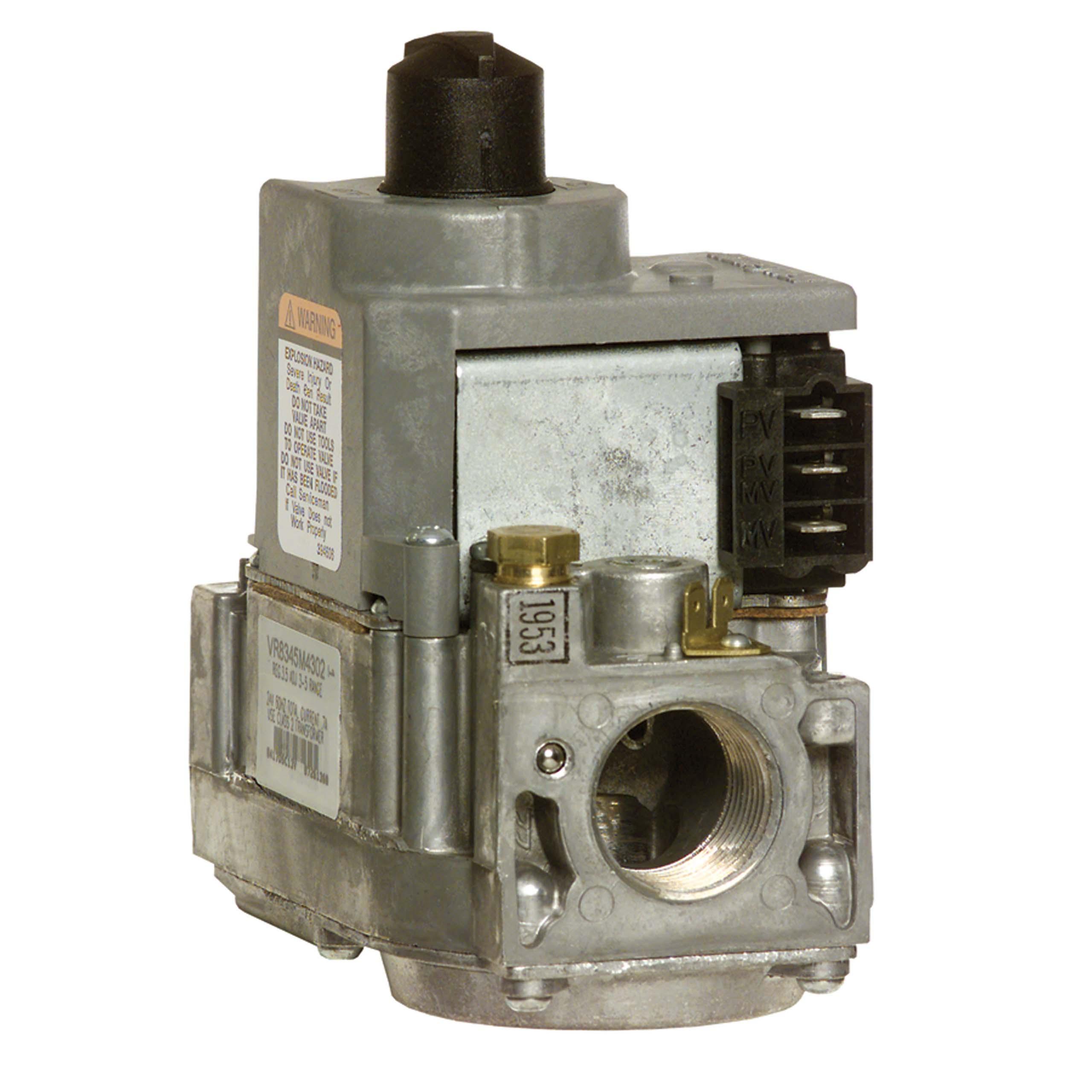

Resideo VR8345M4302/U 1-Stage Gas Valve, 3/4 in, Intermittent Direct Spark Ignition, 30000 to 415000 Btu/hr Nominal Natural Gas, 24 VAC 50/60 Hz Coil
Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: VR8345M4302
MPN: VR8345M4302/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
| Coil Voltage | : | 24 VAC 50/60 Hz |
| Dimensions | : | 5-3/8 in H x 4-1/16 in W x 2-11/16 in D |
| Domestic/Import | : | Import |
| Electrical Connections | : | 1/4 in Male Quick-Connect Terminal |
| Gas Type | : | Natural |
| Ignition Type | : | Intermittent Direct Spark |
| Nominal Capacity | : | 30000 to 415000 Btu/hr |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | VR8345 |
| Temperature Rating | : | -40 to 175 deg F |
| Type | : | 1-Stage |
Universal electronic ignition combination gas control for use with direct spark ignition, hot surface ignition or intermittent pilot ignition in 24 Vac, gas-fired appliances, with capacities of 30 to 415 cfh. Control includes manual valve,
Resideo Gas Valve, 1-Stage, Series: VR8345, 3/4 in Nominal, 0.5 psi Pressure, Intermittent Direct Spark Ignition, 30000 to 415000 Btu/hr Nominal, Natural Gas, 24 VAC 50/60 Hz Coil, 1/4 in Male Quick-Connect Terminal Electrical Connections, -40 to 175 deg F, 5-3/8 in H x 4-1/16 in W x 2-11/16 in D Dimensions, Import
- Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter
- Replaces many IP, HSI, or DSI gas control
- Compact size
- All adjustments and wiring connections accessible from top of control
- Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules
- Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper
- Internal inlet screen blocks contaminants in gas line from entering valve
