Resideo VR8300A4516

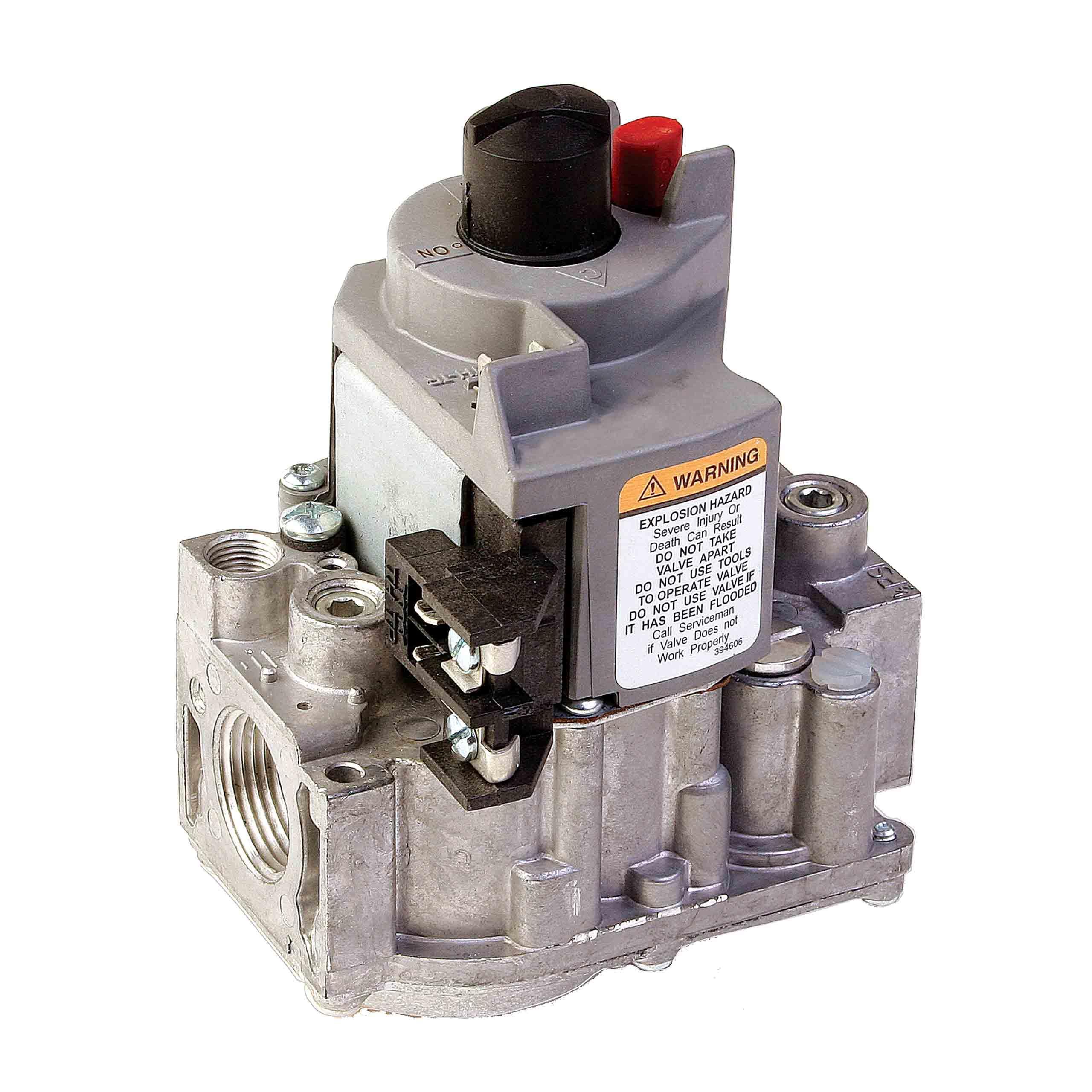

Resideo VR8300A4516/U 1-Stage Gas Valve, 3/4 in Nominal, Standing Pilot Ignition, 30000 to 300000 Btu/hr Nominal Capacity, Natural Gas, 24 V AC 60 Hz Coil
Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: VR8300A4516
MPN: VR8300A4516/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
| Coil Voltage | : | 24 V AC 60 Hz |
| Dimensions | : | 5-3/8 in H x 4-1/16 in W x 2-11/16 in D |
| Domestic/Import | : | Import |
| Electrical Connections | : | 1/4 in Male Quick-Connect Terminal |
| Gas Type | : | Natural |
| Ignition Type | : | Standing Pilot |
| Nominal Capacity | : | 30000 to 300000 Btu/hr |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | VR8300 |
| Temperature Rating | : | 0 to 175 deg F |
| Type | : | 1-Stage |
Combination gas control for use in 24 VAC gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Resideo Gas Valve, 1-Stage, Series: VR8300, 3/4 in Nominal, 0.5 psi, Standing Pilot Ignition, 30000 to 300000 Btu/hr Nominal Capacity, Natural Gas, 24 V AC 60 Hz Coil, 1/4 in Male Quick-Connect Terminal, 0 to 175 deg F, 5-3/8 in H x 4-1/16 in W x 2-11/16 in D, Import
- Lite-Rite (OFF-PILOT-ON) lighting sequence
