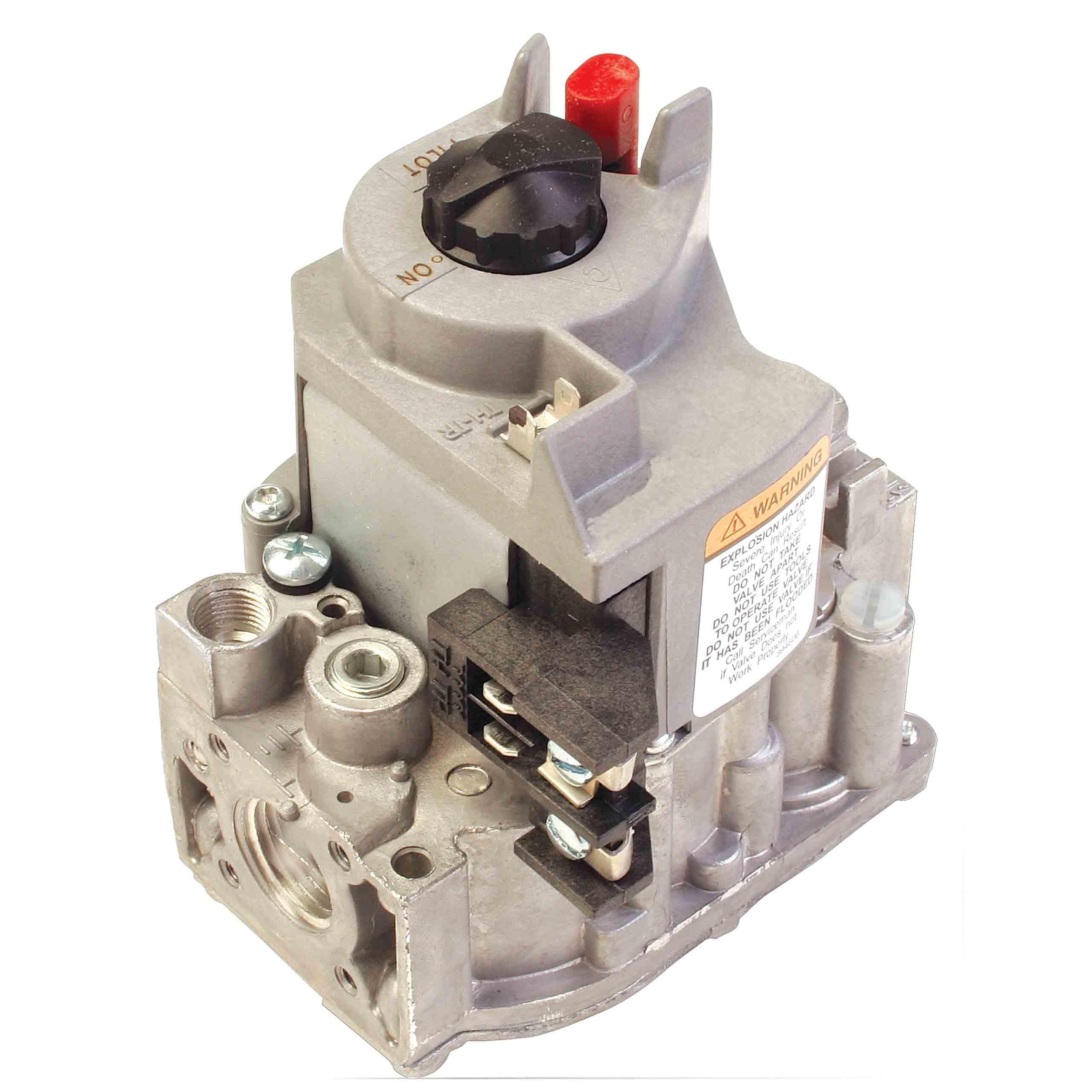

Resideo VR8200A2132
Resideo VR8200A2132/U 1-Stage Gas Valve, 1/2 in Nominal, Standing Pilot Ignition, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil
Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: VR8200A2132
MPN: VR8200A2132/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
| Coil Voltage | : | 24 VAC 60 Hz |
| Dimensions | : | 5-3/16 in H x 4-1/8 in W x 3-1/4 in D |
| Domestic/Import | : | Import |
| Electrical Connections | : | 1/4 in Male Quick-Connect Terminal |
| Gas Type | : | Natural |
| Ignition Type | : | Standing Pilot |
| Nominal Capacity | : | 20000 to 200000 Btu/hr |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 0.5 psi |
| Series | : | VR8200 |
| Temperature Rating | : | 0 to 175 deg F |
| Type | : | 1-Stage |
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh. Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Co
Resideo Gas Valve, 1-Stage, Series: VR8200, 1/2 in Nominal, 0.5 psi, Standing Pilot Ignition, 20000 to 200000 Btu/hr Nominal Capacity, Natural Gas, 24 VAC 60 Hz Coil, 1/4 in Male Quick-Connect Terminal, 0 to 175 deg F, 5-3/16 in H x 4-1/8 in W x 3-1/4 in D, Import
- Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Compact size
- Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator, closes if gas or power supply is interrupted
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
