Resideo TH6220WF2006

Resideo Tradeline® TH6220WF2006/U 6000 Thermostat, Wi-Fi, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S Terminal, Import

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: TH6220WF2006
MPN: TH6220WF2006/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Control Range      :      40 to 90 deg F Heat/50 to 99 deg F Cool
Differential      :      1 deg F
Dimensions      :      4.06 in H x 4.06 in W x 1.09 in D
Display Type      :      LCD Screen
Domestic/Import      :      Import
Fan Switching      :      Auto/On/Circulate/Follow Schedule
Full Load Current      :      0.02 to 1.0 A
Humidity Range      :      5 to 90 %
Mounting Type      :      UWP Mounting System
Number of Stages      :      4
Power Source      :      Battery/Hardwired
Sensor Type      :      Thermistor
Series      :      T6 Pro
Stages Cool      :      1 Heat Pump, 2 Conventional
Stages Heat      :      2 Heat Pump, 2 Conventional
Switch Type      :      Relay
System Switching      :      Heat/Cool/Auto/Off/Emergency Heat
Terminal Designations      :      RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S
Thermostat Type      :      Low Voltage
Type      :      Programmable

The T6 Pro Smart Thermostat offers your customers functionality thats easy to use and smart features that are easy to love. Homeowners can program the T6 Pro Smart Thermostat based on their schedule, or let it adapt to their lifestyle with location-ba

Resideo Tradeline® Thermostat, Series: 6000, Wi-Fi, Programmable Thermostat, 40 to 90 deg F Heat/50 to 99 deg F Cool Control, 1 deg F Differential, Relay Switch, RC, R, C, W, W2 - AUX, Y, Y2, O/B, G, K, E, L/A, S, S Terminal Designations, Heat/Cool/Auto/Off/Emergency Heat System Switching, Auto/On/Circulate/Follow Schedule Fan Switching, 4 Stage, 2 Heat Pump, 2 Conventional Stages Heat, 1 Heat Pump, 2 Conventional Stages Cool, 5 to 90% Non-Condensing Humidity, 6.89 sq-in LED Back-Lit Display, 20 to 30 VAC, Hardwired Power Source, 4-1/16 in L x 4-1/16 in W x 1-3/32 in D, Import

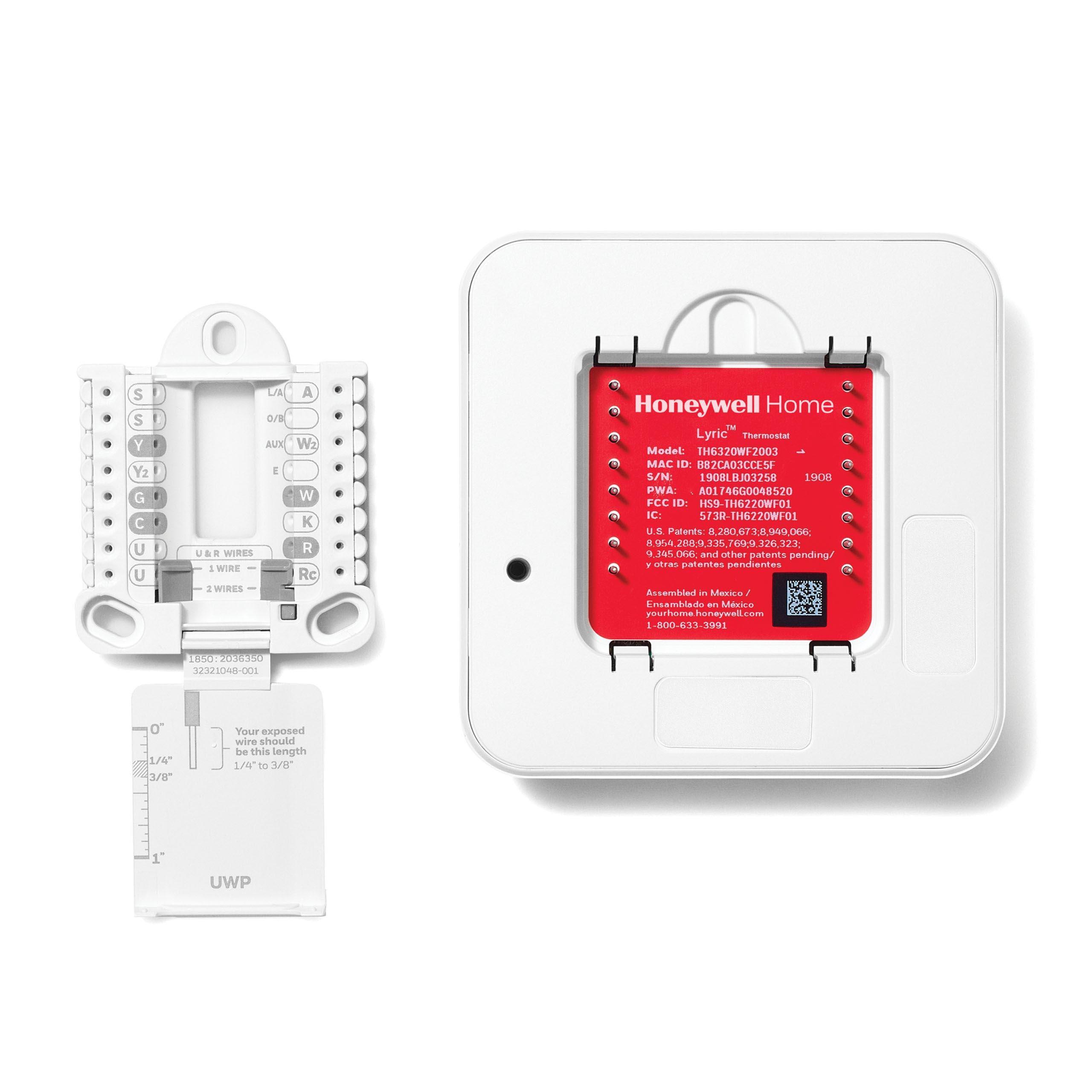

  • Uses the UWP mounting system that's standard across all T Series thermostats
  • Setup and scheduling can be done at the wall on the thermostat, or via our app
  • Install T6 using the Resideo Pro App to enjoy faster installs with more ways to connect with customers
  • Simple homeowner hand-off process enables customers to complete the WiFi connection process on their own
  • Integrates with smart home Apple Home and Amazon Alexa for customers who want to control their smart home devices from a single app
  • Customers can program a schedule or use location-based control with geofence technology, which uses their smartphone location to save energy when they're away and make the home comfortable when they return
  • Optional wired indoor/outdoor sensors
  • Large touchscreen display
