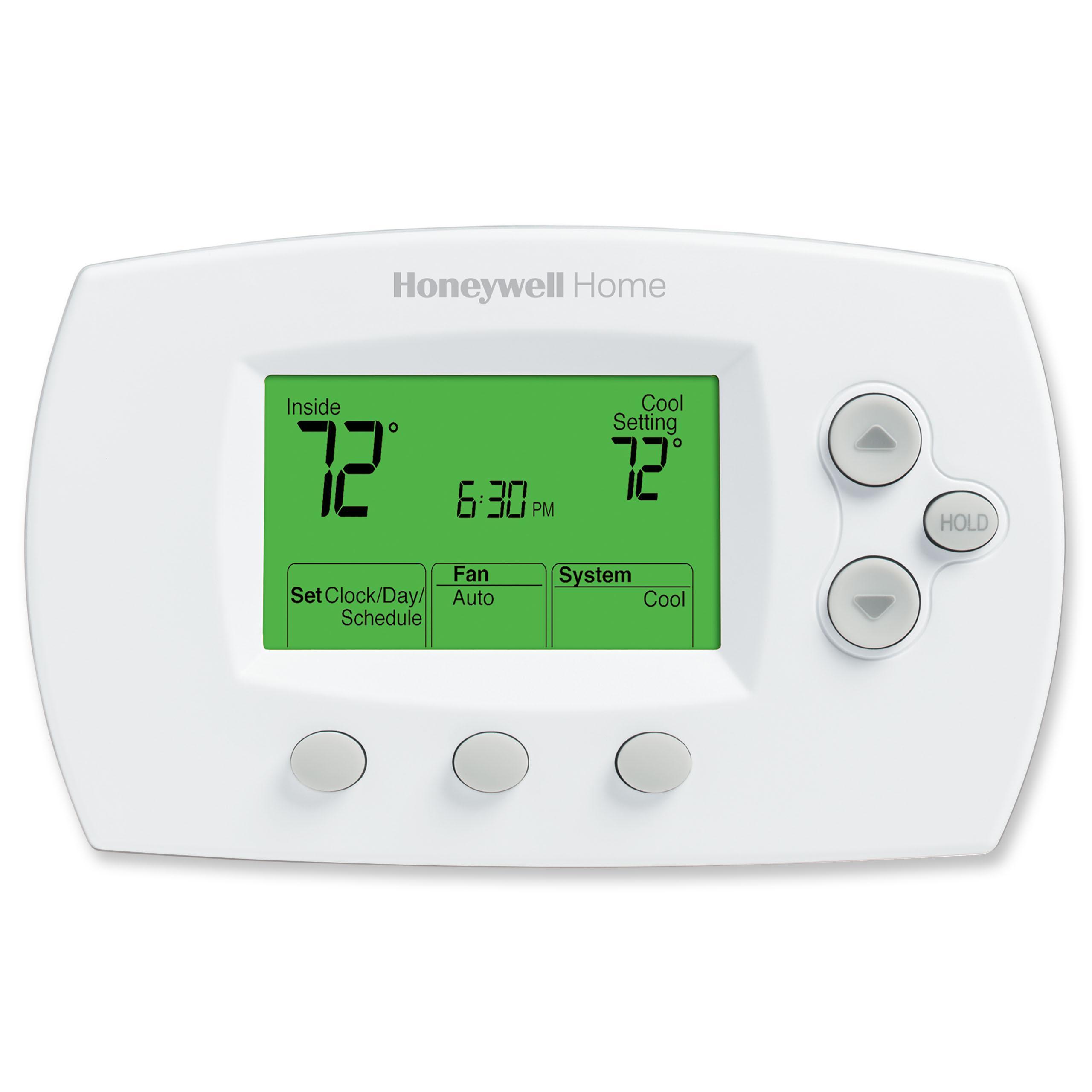

Resideo TH6220D1028

Resideo FocusPRO® TH6220D1028/U 6000 Thermostat, Digital, Programmable Thermostat, 40 to 90 deg F Control, 5-1-1 or 5-2 Days Programs per Week, R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L Terminal, Import

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: TH6220D1028
MPN: TH6220D1028/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
Add / Remove CPN
Color      :      Premier White®
Control Range      :      40 to 90 deg F
Dimensions      :      5-13/16 in W x 1-1/2 in D x 3-9/16 in H
Display Type      :      Digital
Domestic/Import      :      Import
Fan Switching      :      Auto/On
Humidity Range      :      5 to 90% Non-Condensing
Mounting Type      :      Horizontal
Number of Stages      :      4
Power Source      :      Battery/Hardwired
Programs per Week      :      5-1-1 or 5-2 Days
Series      :      6000
Stages Cool      :      1 Heat Pump, 2 Conventional
Stages Heat      :      2 Heat Pump, 2 Conventional
System Switching      :      Heat/Cool/Auto/Off
Terminal Designations      :      R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L
Thermostat Type      :      Digital, Programmable
Voltage Rating      :      20 to 30 VAC

Selectable to 5-1-1 (Weekdays, Saturday, Sunday) or 5-2 (Weekdays, Weekend) programmable thermostat. Large, clear, backlit display - easy to read in various lighting conditions. Precise comfort control (±1 F) - maintains consist

Resideo FocusPRO® Thermostat, Series: 6000, Digital, Programmable Thermostat, 40 to 90 deg F Control, R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L Terminal Designations, Heat/Cool/Auto/Off System Switching, Auto/On Fan Switching, 4 Stage, 2 Heat Pump, 2 Conventional Stages Heat, 1 Heat Pump, 2 Conventional Stages Cool, 5-1-1 or 5-2 Days Programs per Week, 5 to 90% Non-Condensing Humidity, Digital Display, 20 to 30 VAC, Battery/Hardwired Power Source, Horizontal Mounting, Premier White®, 5-13/16 in W x 1-1/2 in D x 3-9/16 in H, Import

  • Temperature range stops - prevents user from setting the temperature too high or too low
  • Large, clear, backlit display - easy to read in various lighting conditions
  • Precise comfort control ((+/-)1 F) - maintains consistent comfort to the highest level of accuracy
  • Simplified programming and operation
  • Easy change battery door - flip out door allows for easy battery replacement without removing or disassembling the thermostat
  • Built in instructions - simple, pull out instruction manual
  • Adaptive Intelligent Recovery - ensures programmed temperature is reached by programmed time
