Resideo SV9641M4510

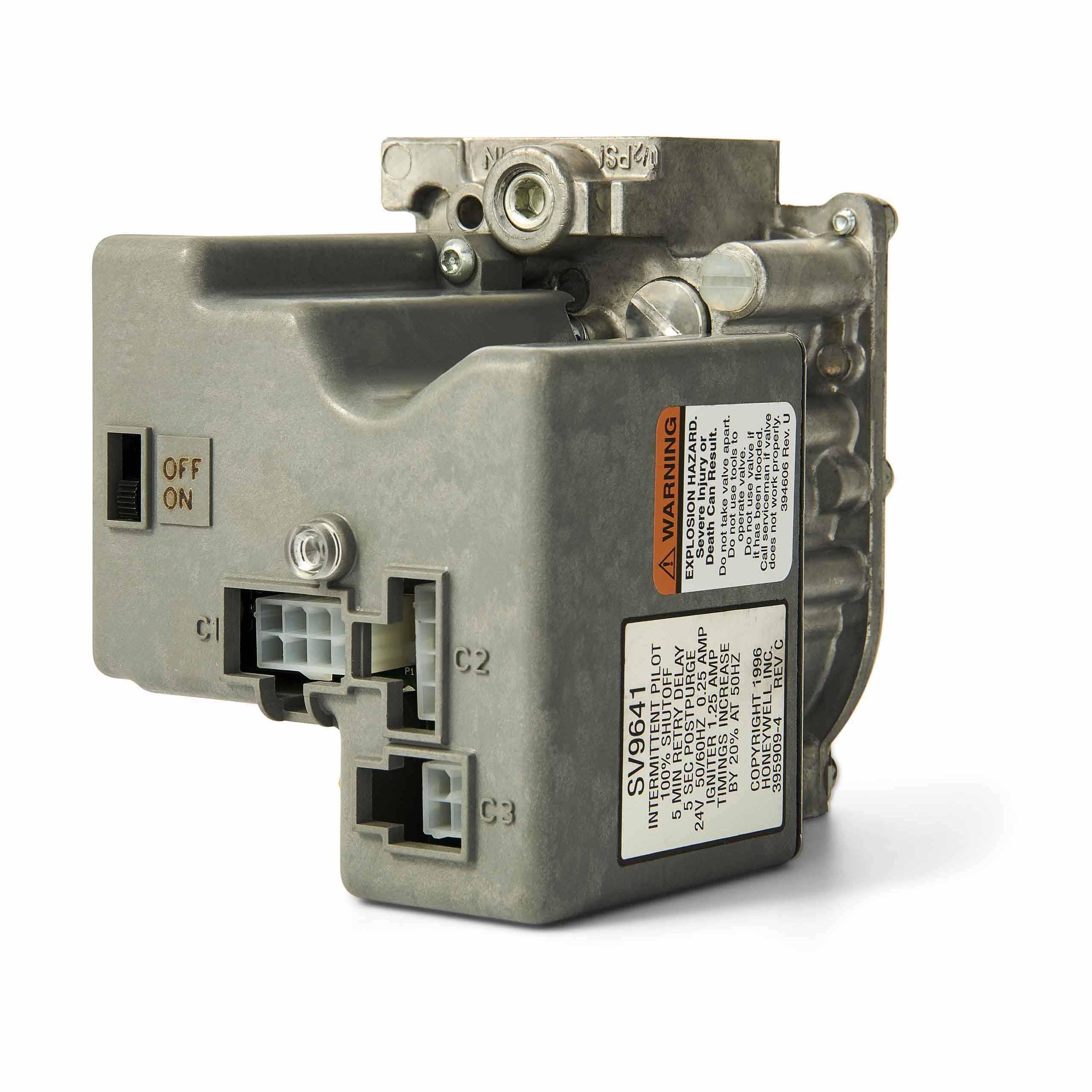

Resideo SmartValve® SV9641M4510/U Gas Valve, 3/4 in Nominal, Intermittent Hot Surface Pilot Ignition, 0.8 to 11.8 cu-m/hr Nominal Capacity, Natural Gas, 24 VAC 50/60 Hz Coil

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: SV9641M4510
MPN: SV9641M4510/U
Min. Order Qty: 1
Sold As: 12/PK
Login for Availability
Login for Price
Add / Remove CPN
Coil Voltage      :      24 VAC 50/60 Hz
Dimensions      :      4.1 in L x 3.2 in W x 4.9 in H
Domestic/Import      :      Import
End Style      :      NPT
Gas Type      :      Natural
Ignition Type      :      Intermittent Hot Surface Pilot
Nominal Capacity      :      0.8 to 11.8 cu-m/hr
Nominal Size      :      3/4 in
Pressure Rating      :      0.5 psi
Series      :      SV9641
Temperature Rating      :      -40 to 175 deg F

The SmartValve® System Controls combine gas flow control and electronic intermittent pilot sequencing functions into a single unit. The Q3450 or Q3480 Pilot hardware supplies the low voltage igniter, flame sensor and pilot burner. These ignition system controls provide all gas ignition safety functions by controlling gas flow, ignition source and a 120 VAC or 240 VAC combustion air blower. The controls also monitor the appliance airflow proving switch and limit string to assure proper appliance operation and provide prepurge, postpurge and timed trial for pilot ignition with 100 percent shutoff and continuous retry. Includes a diagnostic LED indicates system status.

Resideo SmartValve® Gas Valve, Series: SV9641, 3/4 in Nominal, NPT, 0.5 psi, Intermittent Hot Surface Pilot Ignition, 0.8 to 11.8 cu-m/hr Nominal Capacity, Natural Gas, 24 VAC 50/60 Hz Coil, -40 to 175 deg F, 4.1 in L x 3.2 in W x 4.9 in H, Import

  • These controls communicate directly with an electronic fan timer (ST9160 electronic fan timer for single stage applications, ST9162 electronic fan timer for two-stage applications) in typical forced warm air furnace applications
  • It can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications
  • When controlled directly by a thermostat, these controls do not provide a postpurge function, because power to the control is removed when the thermostat call for heat ends
  • This system is suitable for a wide range of fan-assisted combustion, gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances
  • Straight-through body pattern
  • 0 to 90 deg in any direction from the upright position of the gas control knob mounting
  • 3-1/2 in WC pressure regulator setting
