| Depth | : | 7.6 in |
| Domestic/Import | : | Import |
| Height | : | 3-1/2 in |
| Igniter Warm-Up Time | : | 17/27, 30/30 s |
| Prepurge Time | : | 30 s |
| Type | : | Hot Surface Ignition |
| Voltage Rating | : | 120 VAC |
| Width | : | 5.6 in |

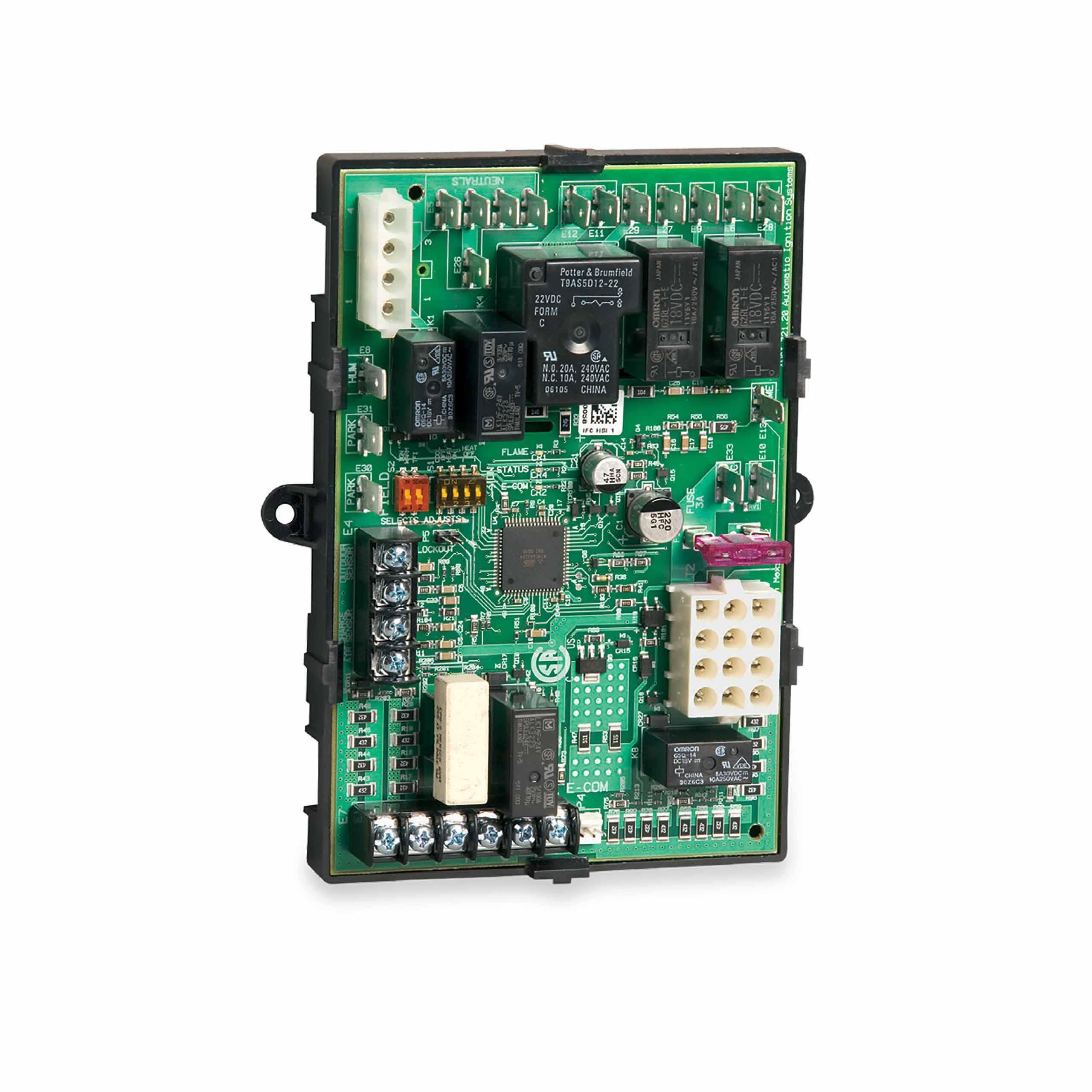

Our integrated furnace controls were designed to keep you on the jobnot waiting for replacement partsand moving forward by offering a board that works for nearly every system. The S9200 hot surface ignition integrated furnace control replaces over 19
Resideo Integrated Furnace Control, Hot Surface Ignition, 120 VAC, 17/27, 30/30 s Igniter Warm-Up Time, 30 s Prepurge, 5.6 in Width, 7.6 in D, 3-1/2 in Height, Import
- Replaces over 195 existing furnace controls
- Controls circulating fan motor based on appliance requirements with a conventional low voltage thermostat
- Flame rectification circuit to monitor flame presence
- Monitoring of system pressure switch, high temperature limit, and rollout functions
- Appliance operation and safety requirements controlled via microprocessor
- LED system status, performance, and diagnostic indication
- Twinning capability
