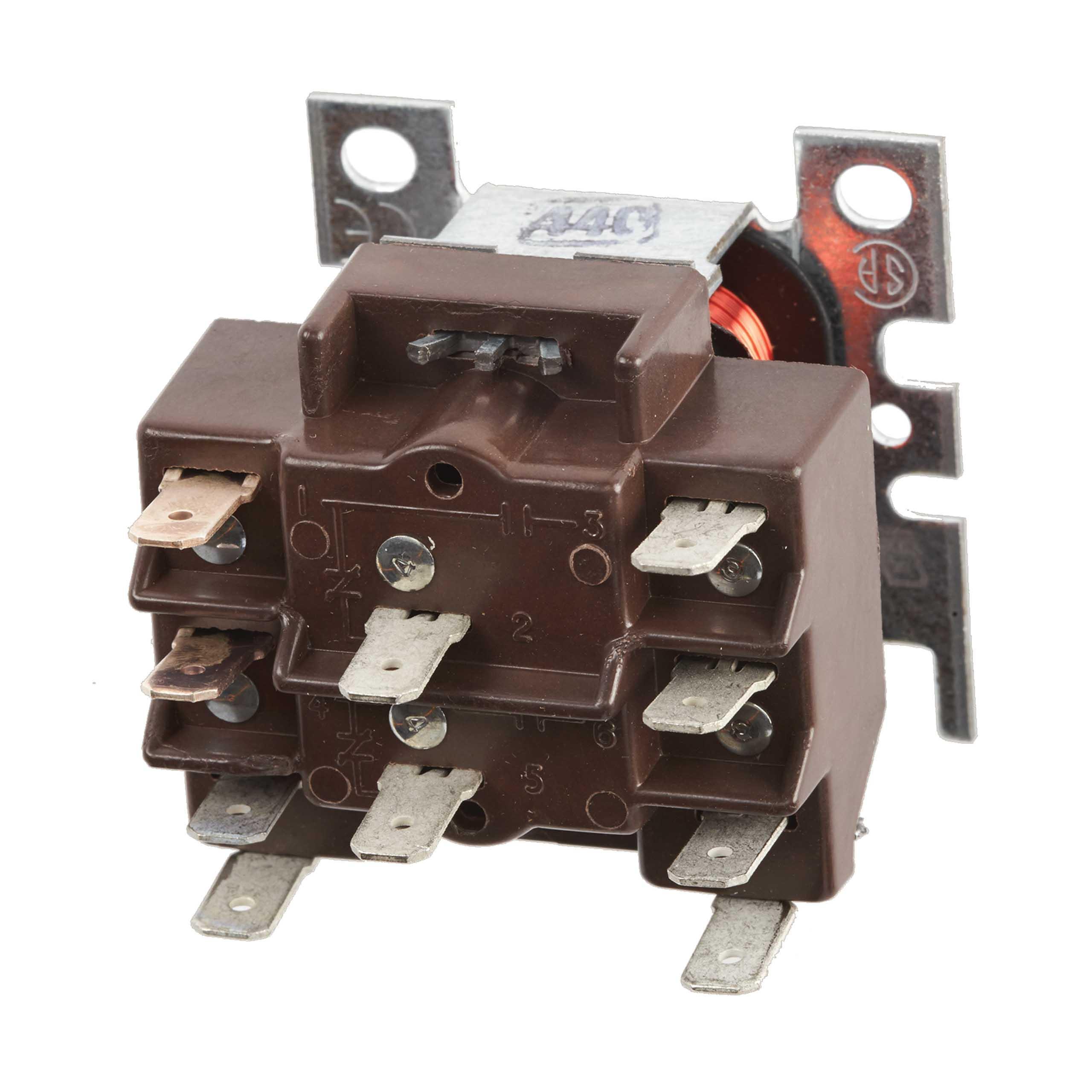

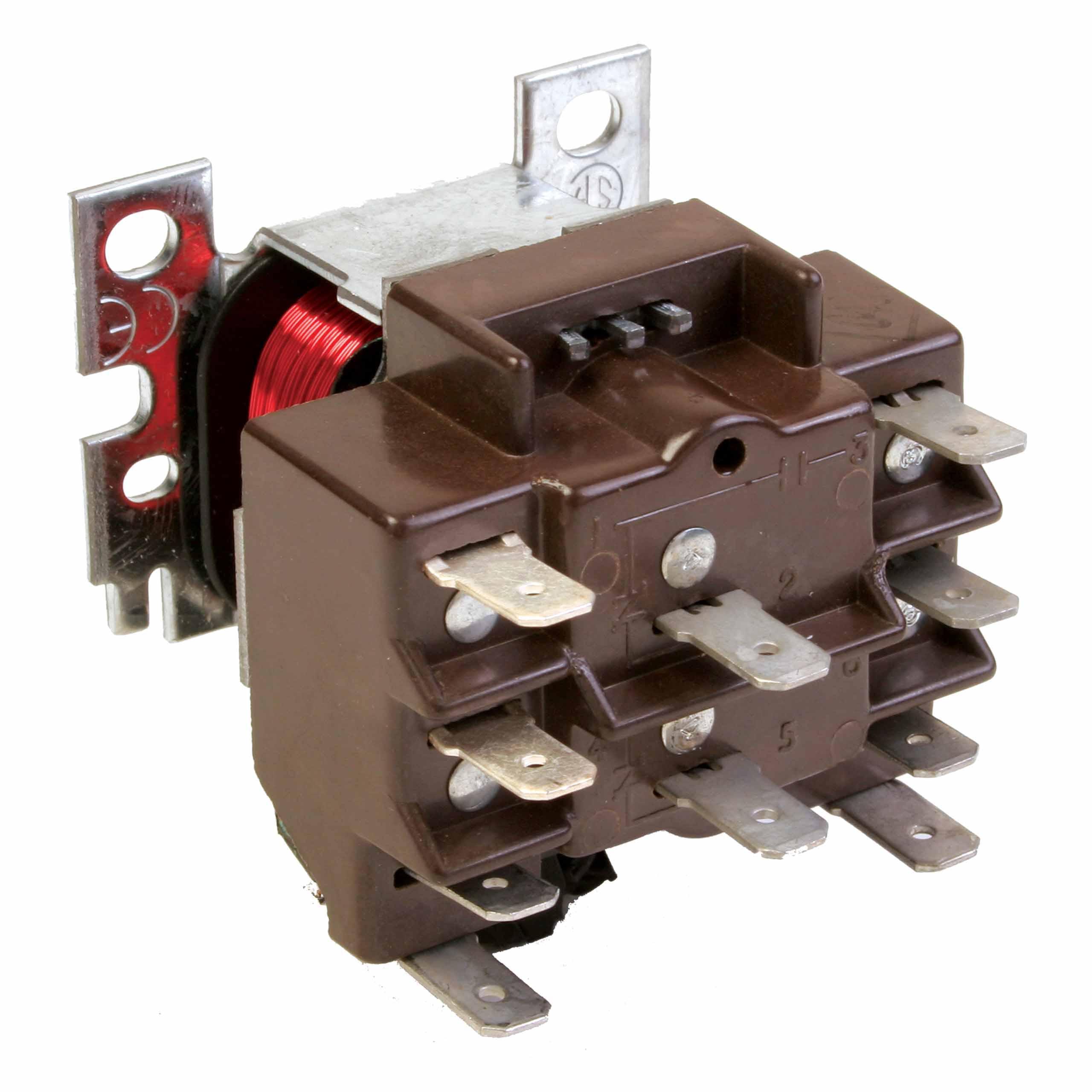

Resideo R8222B1067

Resideo R8222B1067/U R8222 Relay with Switching, 3, 12, 18, 60, 10, 20.8 A, 1 Form C SPDT Contact, 24 VAC V Coil

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: R8222B1067
MPN: R8222B1067/U
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      3/12/18/60/10/20.8 A
Coil Voltage      :      24 V AC
Contact Form      :      1 Form C SPDT
Contact Rating      :      3 A at 480 V AC 6 A at 208 V AC 6 A at 277 V AC 12 A at 120 V AC (AFL./18 A at 480 V AC 35 A at 208 V AC 35 A at 240 V AC 35 A at 277 V AC 60 A at 120 V AC (ALR./10 A at 480 V AC 20.8 A at 120 V AC 20.8 A at 208 V AC 20.8 A at 240 V AC 20.8 A at 277 V AC (Resistive.
Dimensions      :      1-7/8 in H x 2-5/32 in W x 2-3/8 in D
Frequency Rating      :      50/60 Hz
Series      :      R8222
Temperature Rating      :      -20 to 115 deg F
Terminal Type      :      1/4 in Quick-Connect

Resideo, R8222B1067/U, Relay with Switching, Series: R8222, 3, 12, 18, 60, 10, 20.8 A, 50/60 Hz Frequency, 24 VAC Coil, 1 Form C SPDT Contact Form, 3 A at 480 VAC 6 A at 208 VAC 6 A at 277 VAC 12 A at 120 VAC (AFL)/18 A at 480 VAC 35 A at 208 VAC 35 A at 240 VAC 35 A at 277 VAC 60 A at 120 VAC (ALR)/10 A at 480 VAC 20.8 A at 120 VAC 20.8 A at 208 VAC 20.8 A at 240 VAC 20.8 A at 277 VAC (Resistive) Contact, 1/4 in Quick-Connect Terminal, -20 to 115 deg F, 1-7/8 in H x 2-5/32 in W x 2-3/8 in D Dimensions

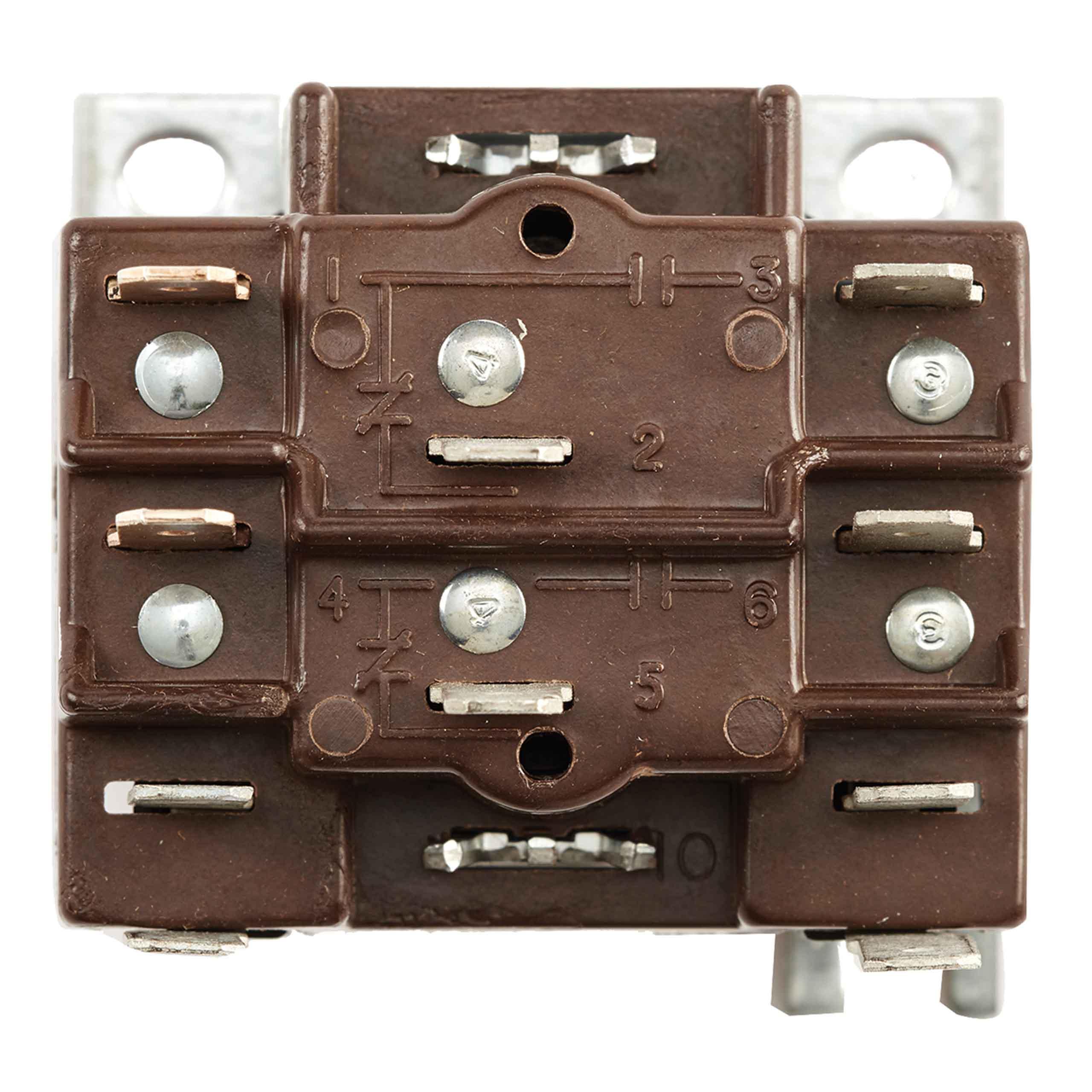

  • Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
  • Open coil assures cooler operation
  • Laminated magnet construction for higher efficiency
  • Plug compatible with Steveco 90
