Resideo FK06103DUSLF

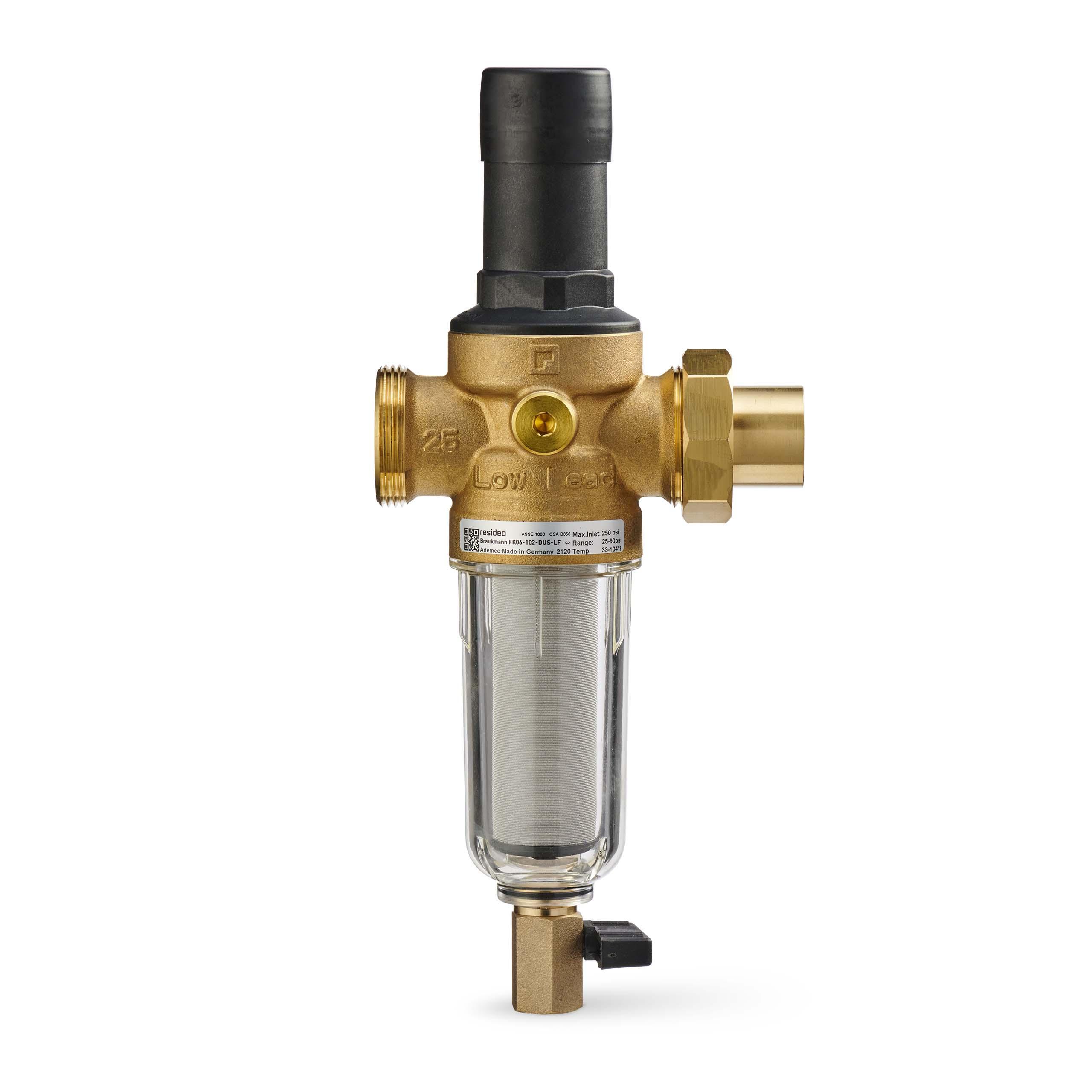

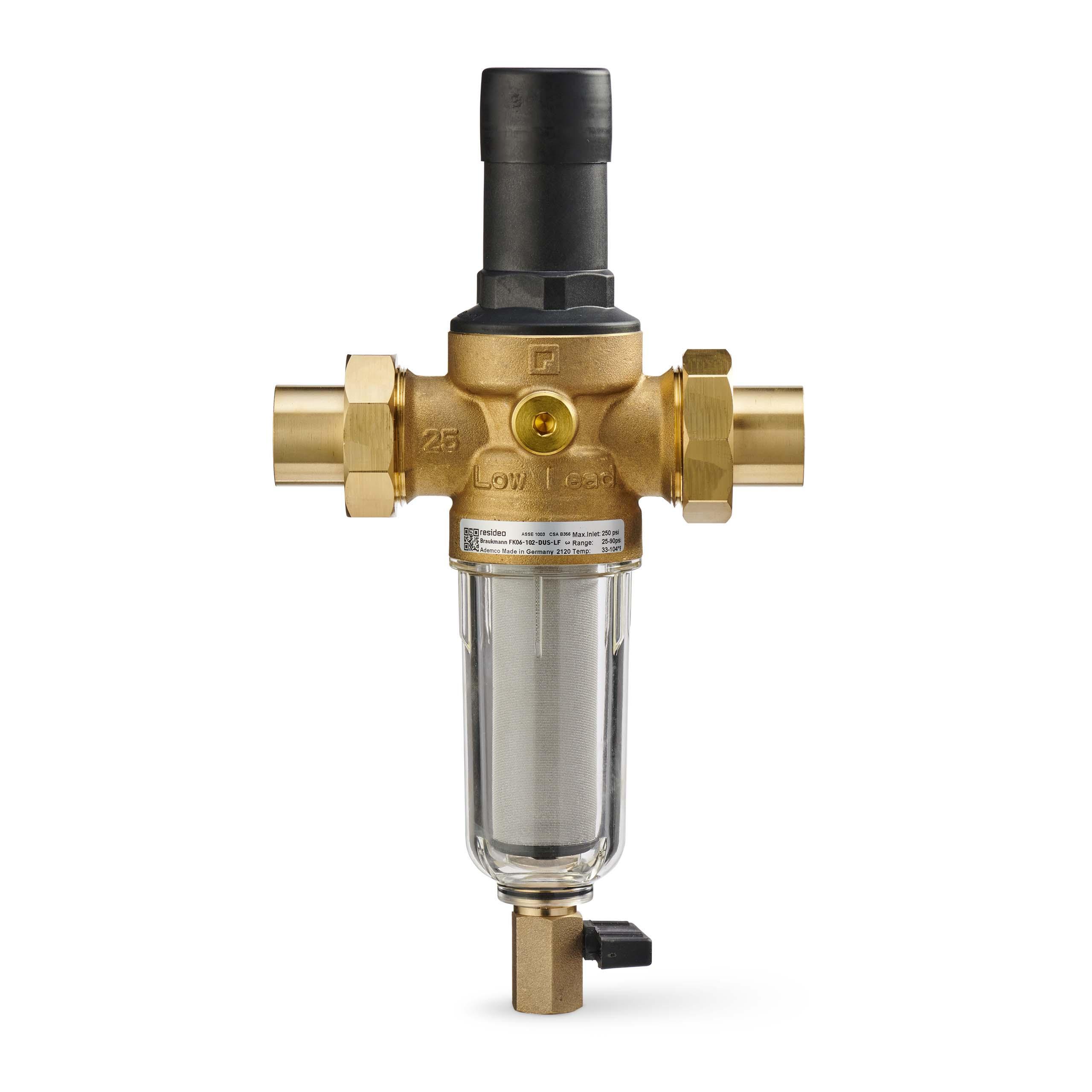

Resideo DialSet® FK06-103-DUS-LF Pressure Regulating Valve With Filter Combination, 1-1/4 in, Double Union C, 25 to 90 psi, 34.87 gpm, Brass Body

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: FK06103DUSLF
MPN: FK06-103-DUS-LF
Min. Order Qty: 1
Sold As: 1/PK
Login for Availability
Login for Price
Add / Remove CPN
Body Material      :      Brass
Dimensions      :      7-1/8 in L x 11-9/16 in H
End Style      :      Double Union C
Flow Rate      :      34.87 gpm
Media      :      Potable Water
Nominal Size      :      1-1/4 in
Pressure Rating      :      25 to 90 psi
Series      :      FK06
Softgoods Material      :      Fabric-Reinforced Diaphragm
Temperature Rating      :      33 to 140 deg F Ambient

MiniPlus FK06 rinsable filter combinations ensure a continuous supply of filtered water. The fine filter prevents the ingress of foreign bodies, for example rust particles, strands of hemp and grains of sand and thus reduces the probability of corrosio

Resideo DialSet® Lead Free Pressure Regulating Valve, Series: FK06, 1-1/4 in Nominal, Double Union C, 25 to 90 psi, 33 to 140 deg F Ambient, 34.87 gpm, Media: Potable Water, Brass Body, Fabric-Reinforced Diaphragm, 7-1/8 in L x 11-9/16 in H

  • The set pressure is directly indicated on the set point scal
  • The adjustment spring is not in contact with the drinking water
  • The valve insert is of high-quality synthetic material and can be fully exchanged
  • Filtered water supplied even during reverse rinsing
  • Inlet pressure balancing - no influence on outlet pressure by fluctuating inlet prressure
  • Shock resistant clear synthetic material filter bowl enables easy checking of filter contamination
  • Filter and complete filter bowl are replaceable
