Resideo AT150F1022

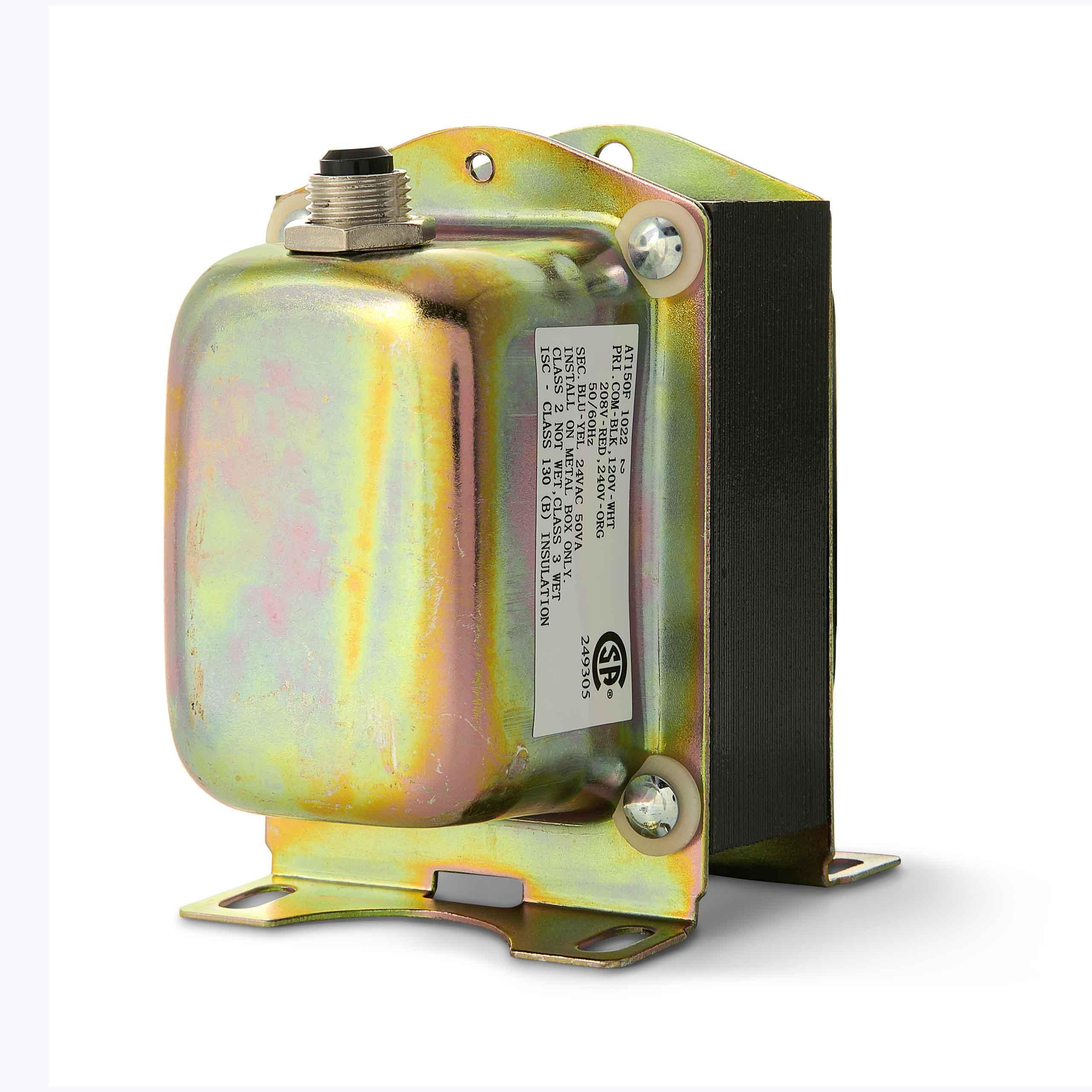

Resideo AT150F1022/U Transformer With 9 in Lead Wires, 120/208/240 V AC Primary, 27.5 VAC Secondary, 50 VA Power Rating

Manufacturer: Resideo Technologies
Brand Name: Resideo
Part#: AT150F1022
MPN: AT150F1022/U
Min. Order Qty: 1
Sold As: 20/PK
Login for Availability
Login for Price
Add / Remove CPN
Dimensions      :      2-3/16 in W x 3-5/8 in D x 3-3/16 in H
Domestic/Import      :      Import
Frequency Rating      :      60 Hz
Mounting Type      :      Surface
Power Rating      :      50 VA
Primary Voltage      :      120/208/240 V AC
Secondary Voltage      :      27.5 V AC
Specifications      :      -20 to 105 deg F

Honeywell 50 VA general purpose transformers power 24 VAC circuits.

Resideo Transformer, 120/208/240 V AC Primary, 27.5 VAC Secondary, 50 VA, 60 Hz, Surface Mount, -20 to 105 deg F, 2-3/16 in W x 3-5/8 in D x 3-3/16 in H, Import

  • Color coded lead wires for primary connections and screw terminals for secondary connections
  • Includes fixed 1/4 in male quick connects (AT150A models only) or Color coded lead wires for primary and secondary connections
  • Meets Underwriters Laboratories standard UL 1585
  • Identified class 2 not wet, class 3 wet
  • Mounting - includes 1/2-14 NPSM conduit connector and locknut for mounting on plate or panel (not included) with 7/8 in knockout and feet for surface mount
