| Dimensions | : | 3-3/16 in W x 1-3/4 in D x 1-11/16 in H |
| Domestic/Import | : | Import |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Footed |
| Power Rating | : | 20 VA |
| Primary Voltage | : | 120 VAC |
| Secondary Voltage | : | 27 VAC |
| Specifications | : | -20 to 105 deg F |

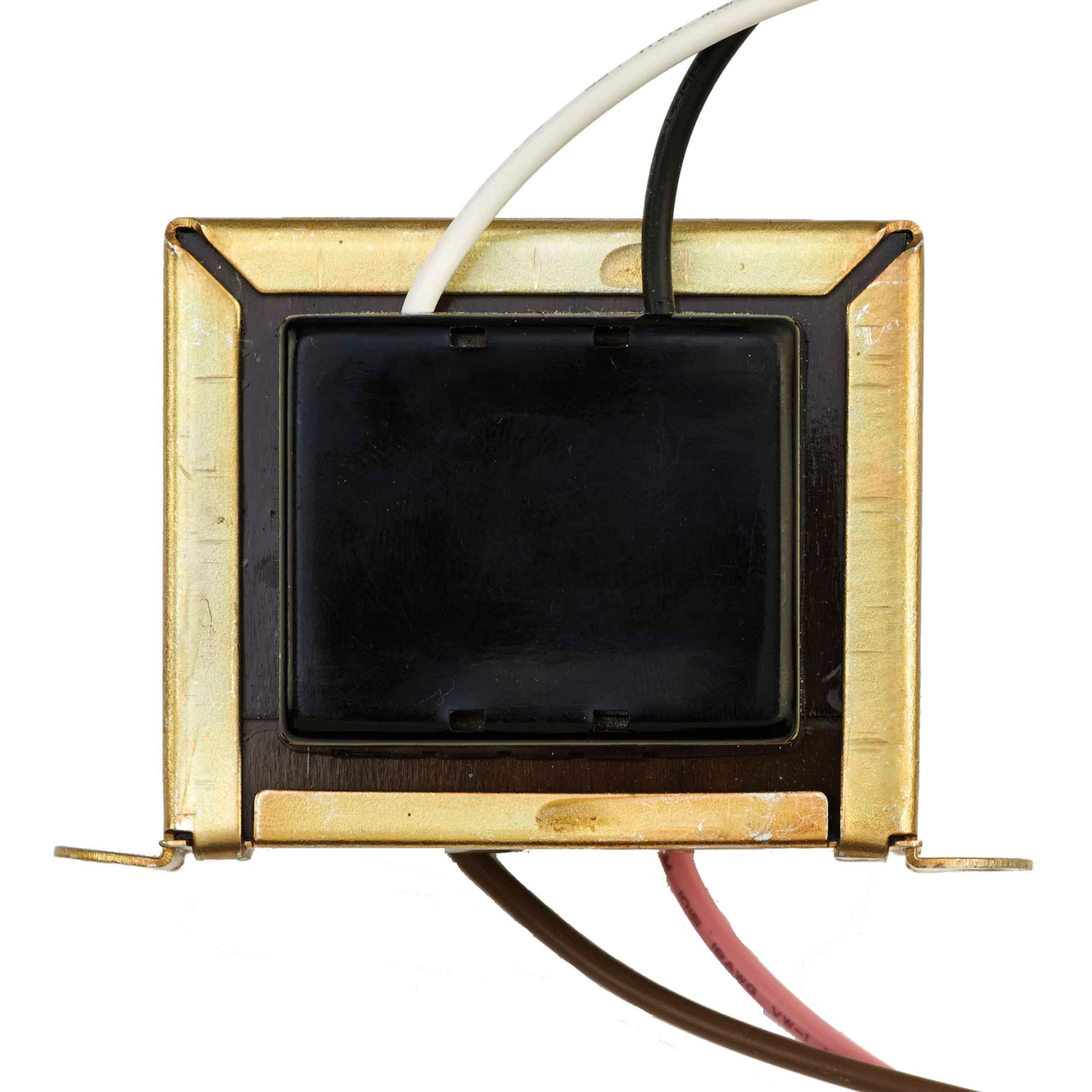

Honeywell 20 VA general purpose transformers power 24 VAC circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings.
Resideo Transformer, 120 VAC Primary, 27 VAC Secondary, 20 VA, 60 Hz, Footed Mount, -20 to 105 deg F, 3-3/16 in W x 1-3/4 in D x 1-11/16 in H, Import
- Includes fixed 1/4 in (6mm) male quick connects or Color coded lead wires for primary and secondary connections
- Identified class 2 not wet, class 3 wet
- Foot mounted, plate-mounted on 2x4 in or 4x4 in outlet box, clamp mounted using outlet box knockout, or panel mounted
