Reflectix FOILWRAPR8

Reflectix® Duct Insulation may be installed by wrapping rectangular or round ductwork in HVAC applications. The product costs less to install due to its lightweight, easy to cut and handle installation characteristics. Reflectix® is extensively tested by either nationally independent laboratories or at leading universities.

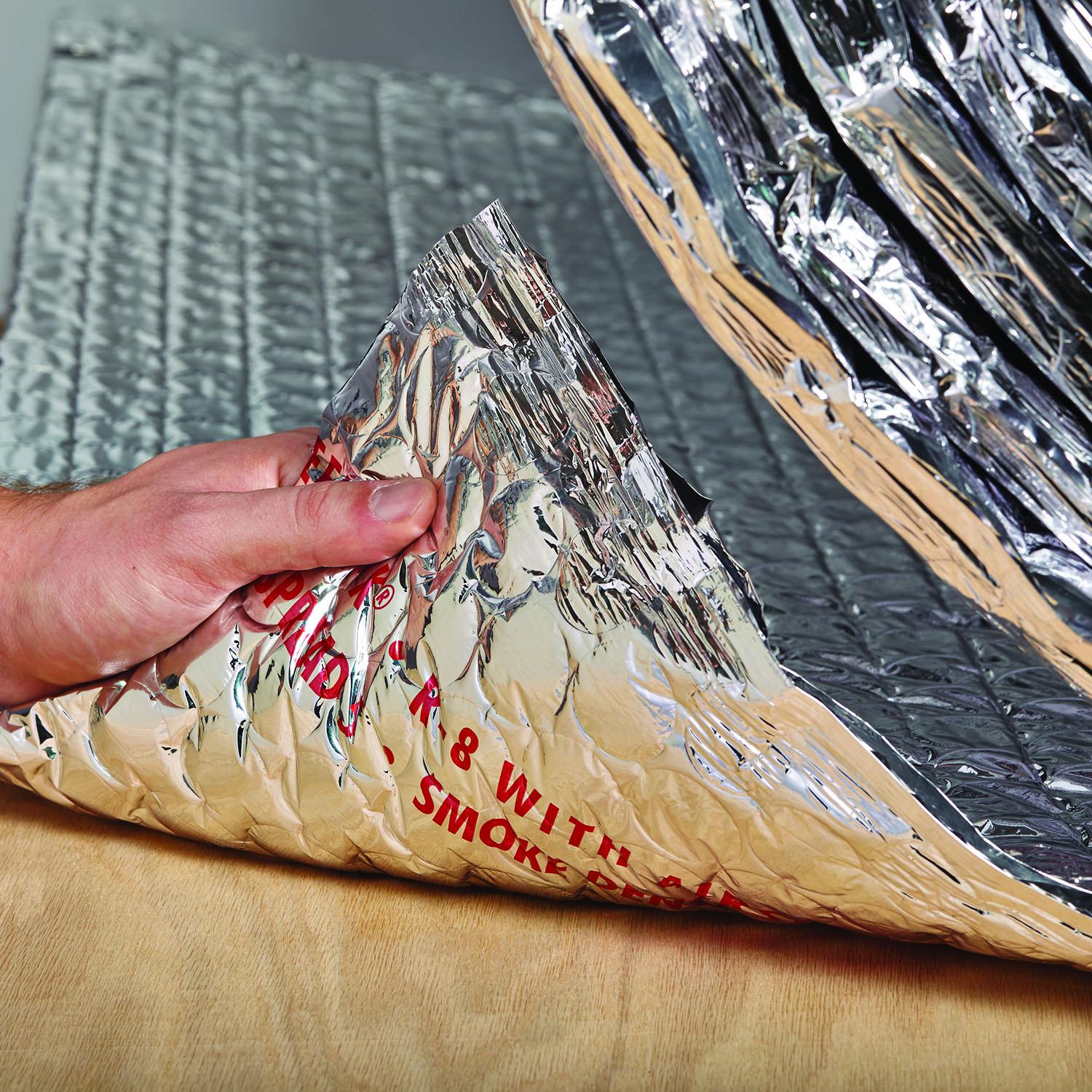

Reflectix Duct Wrap Insulation, 32-1/2 in Length, 32-1/2 in Width, 1 in Thickness, 180 deg F, Metalized Film/Polyethylene Bubble, Metalized Polyester Film, Gray, Domestic

• Easy to handle and cost less to install
• Non-toxic, non-carcinogenic
• Lightweight and clean
• Not affected by moisture or humidity
• Resists growth of fungi, mold and mildew
• No need for protective garments or respirators when installing
• When sealed properly, aids in reducing duct leakage

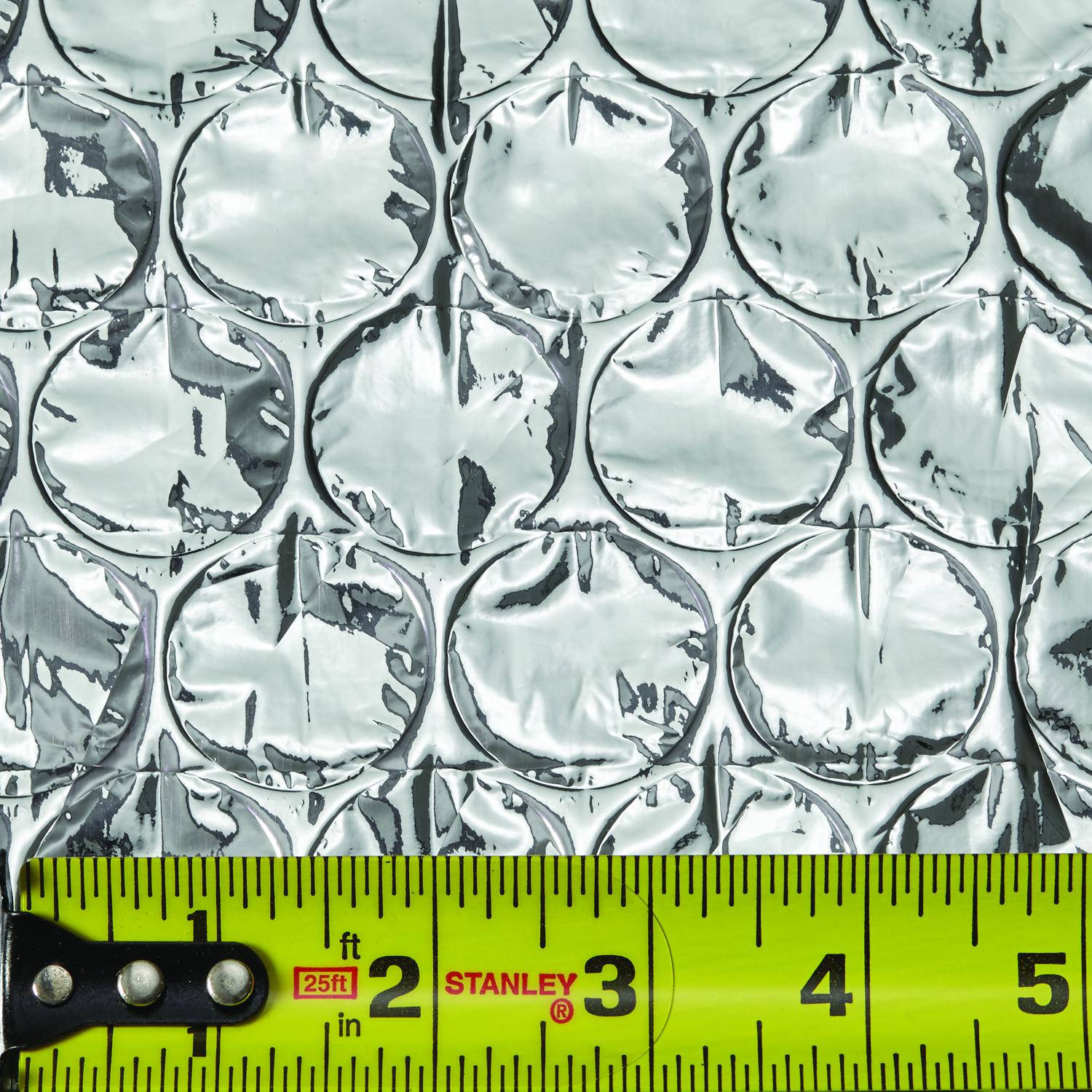

• Duct insulation (R-8.0 with air space), big bubble foil duct wrap is energy efficient and fiber-free
• Reflects 97% of radiant heat
• Class A/Class 1 flame/smoke rating
• R-value, duct wrap R 5.4 without airspace R 8.0 with 3/4 in airspace
• Requires less space than fiberglass to achieve R-8.0
• 180 deg F with direct contact/300 deg F with 1 in airspace
