| Amperage Rating | : | 6.51 A |
| Color | : | Beige |
| Dimensions | : | 24 in L x 19-1/2 in W x 12-1/2 in H |
| Finish | : | Powder Coated |
| Flow Rate | : | 350/400 cfm |
| Material | : | Steel |
| Power Rating | : | 5 kW |
| Series | : | MSPH Series |
| Temperature Rating | : | 40 to 90 deg F |
| Type | : | 3-Phase Concealed Comfort Plenum Rated Zero Clearance |
| Voltage Rating | : | 480 V |

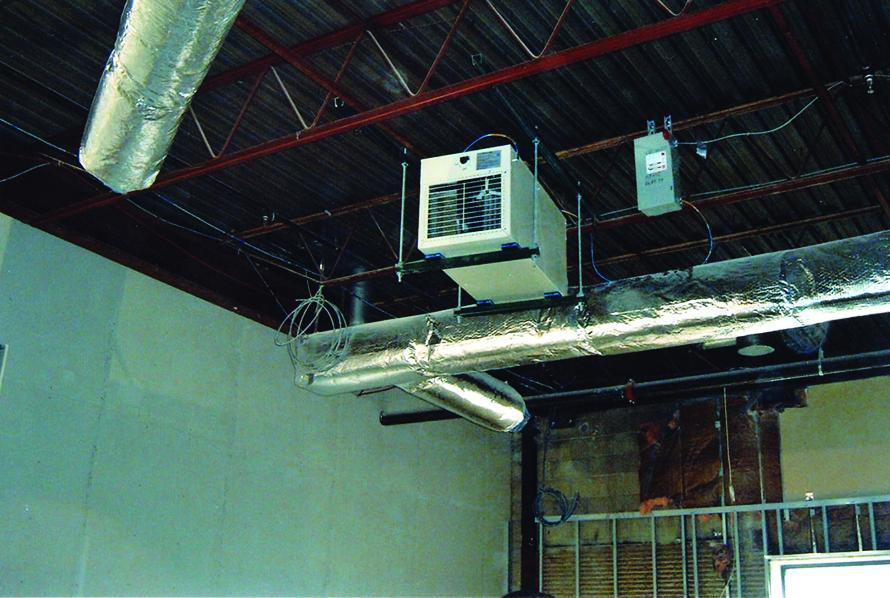

This zero-clearance, plenum-rated Unit Heater fits unobtrusively into unique spaces where you need freeze protection or extra comfort for occupants. It even connects to existing ductwork, making it easy to integrate with your building's environmental system.
QMARK® Unit Heater, 3-Phase Concealed Comfort Plenum Rated Zero Clearance, Series: MSPH Series, 480 V, 6.51 A, 5 kW Power, 350/400 cfm Flow Rate, 40 to 90 deg F, Steel, Beige, Powder Coated, 24 in L x 19-1/2 in W x 12-1/2 in H Dimensions
- Plenum rated approved for installations in concealed spaces between finished ceiling and drop ceiling, plenum space, or inside a plenum, it may be installed in areas that are not readily accessible and may be installed for freeze protection
- Compact size, zero clearance, design for horizontal installation
- Connects to duct work for home extensions - eliminates running duct work to HVAC saving money and time
- High limit thermal cutout - automatic reset
- Built-in disconnect switch
- Fan only option
- Timed blower on/off delay
- External 24 V thermostat control
- PSC-type 2-speed motor
- Multiple heat rise selection
- 20 ga all powder coated steel construction
- Acoustic fiberglass insulation
- Single point power connection
- Heavy duty steel finned heating element
- Quiet, efficient, forward curved centrifugal blower
- 350 cfm at 45 deg F low speed, 400 cfm at 39 deg F high speed
