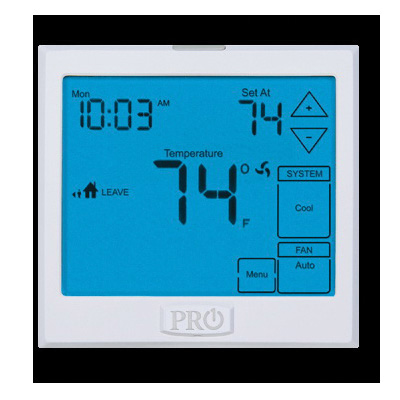

Pro1® T955

Pro1® T955 Thermostat, Programmable Thermostat, 44 to 90 deg F Control, 0.2 to 2 deg F Differential, 5-1-1 Days Programs per Week, RC, RH, C, O/B, G, Y, Y2, W/E, W2 Terminal, Import

Manufacturer: Pro1
Brand Name: Pro1®
Part#: T955
MPN: T955
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Control Range      :      44 to 90 deg F
Differential      :      0.2 to 2 deg F
Dimensions      :      4.7 in W x 1.1 in D x 4.4 in H
Display Type      :      LCD
Domestic/Import      :      Import
Fan Switching      :      Auto/On
Mounting Type      :      Junction Box/Wall
Number of Stages      :      5
Power Source      :      Battery/Hardwired
Programs per Week      :      5-1-1 Days
Stages Cool      :      2
Stages Heat      :      3
System Switching      :      Heat/Cool/Auto/Off/Emergency Heat
Terminal Designations      :      RC, RH, C, O/B, G, Y, Y2, W/E, W2
Thermostat Type      :      Programmable
Voltage Rating      :      24 VAC

Pro1® Thermostat, Programmable Thermostat, 44 to 90 deg F Control, 0.2 to 2 deg F Differential, RC, RH, C, O/B, G, Y, Y2, W/E, W2 Terminal Designations, Heat/Cool/Auto/Off/Emergency Heat System Switching, Auto/On Fan Switching, 5 Stage, 3 Stages Heat, 2 Stages Cool, 5-1-1 Days Programs per Week, LCD Display, 24 VAC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, White, 4.7 in W x 1.1 in D x 4.4 in H, Import

  • Touchscreen and auto changeover
  • Set dual fuel balance points
  • Auto changeover
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 13 sq-in display
  • Blue backlight
  • Glow in the dark light button
  • Programmable fan mode
  • Electric or gas configurable
  • Room temperature calibration adjustments
  • Separate heating and cooling swing adjustments
  • Keypad lockout
  • Heating and cooling set point limits
  • 5 minute compressor delay protection (selectable on or off)
  • Filter change indicator
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • 41 to 95 deg F display range of temperature
