Pro1® T855I

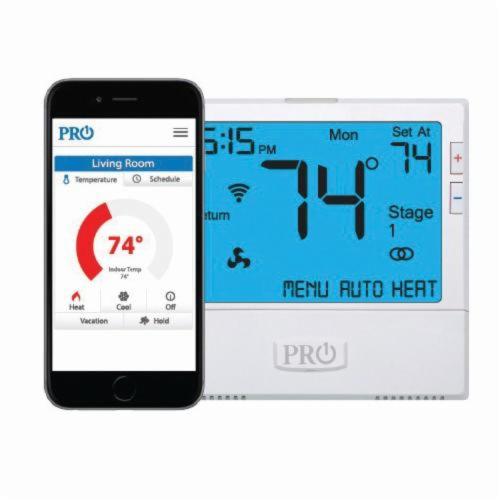

Pro1® T855I Thermostat, Wi-Fi, Programmable Thermostat, 0.2 to 2 deg F Differential, 5-1-1 Days Programs per Week, RH, RC, C, Y, Y2, W/E, W2 G, O, B Terminal, Import

Manufacturer: Pro1
Brand Name: Pro1®
Part#: T855I
MPN: T855I
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      Gray
Differential      :      0.2 to 2 deg F
Dimensions      :      4.7 in W x 1.1 in D x 4.4 in H
Display Type      :      8 sq-in LCD
Domestic/Import      :      Import
Mounting Type      :      Junction Box/Wall
Number of Stages      :      6
Power Source      :      Battery/Hardwired
Programs per Week      :      5-1-1 Days
Stages Cool      :      2
Stages Heat      :      4
Terminal Designations      :      RH, RC, C, Y, Y2, W/E, W2 G, O, B
Thermostat Type      :      Wi-Fi, Programmable
Voltage Rating      :      24 VAC

Pro1® Thermostat, Wi-Fi, Programmable Thermostat, 0.2 to 2 deg F Differential, RH, RC, C, Y, Y2, W/E, W2 G, O, B Terminal Designations, 6 Stage, 4 Stages Heat, 2 Stages Cool, 5-1-1 Days Programs per Week, 8 sq-in LCD Display, 24 VAC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, Gray, 4.7 in W x 1.1 in D x 4.4 in H Dimensions, Import

  • Auto change over easy menu driven programming, intuitive wake, leave, return, sleep programming icons, 8 sq-inch display, blue backlight
  • Glow in the dark light button, Programmable fan mode, electric or gas configurable, room temperature calibration adjustments, separate heating and cooling swing (cycle rate) adjustments
  • Keypad lockout, heating and cooling set point limits, 5 minute compressor delay protection (selectable on or off), filter change indicator(selectable on or off)
  • Simple private label badge system, easy wire color coded terminal blocks, universal sub-base, Mount on wall or junction box
  • Mount on wall or junction box
  • 2.4 GHz ISM radio band
  • 32 to 105 deg F ambient operating temperature operating temperature operating temperature operating temperature
  • Temperature ranges 41 to 95 deg F display range of temperature, 44 to 90 deg F control range of temperature
  • Humidity range - operating 90%, non-condensing maximum
  • +/- 1 deg F display accuracy, 1 A terminal, 1.5 a maximum all terminals combined load rating
  • 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire), battery power from 2 AA alkaline energizer batteries
  • 4 events/day temperature settings per day
