| Color | : | White |
| Control Range | : | 41 to 95 deg F |
| Differential | : | 0.2 to 2 deg F |
| Dimensions | : | 4.7 in W x 1.1 in D x 4.4 in H |
| Display Type | : | LCD |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto/On |
| Mounting Type | : | Junction Box/Wall |
| Number of Stages | : | 2 |
| Power Source | : | Battery/Hardwired |
| Programs per Week | : | 5-1-1 Days |
| Stages Cool | : | 1 |
| Stages Heat | : | 1 |
| System Switching | : | Heat/Cool/Auto/Off |
| Terminal Designations | : | RH, RC, C, Y, W, G, O, B |
| Thermostat Type | : | Programmable |
| Voltage Rating | : | 18 to 30 VAC |

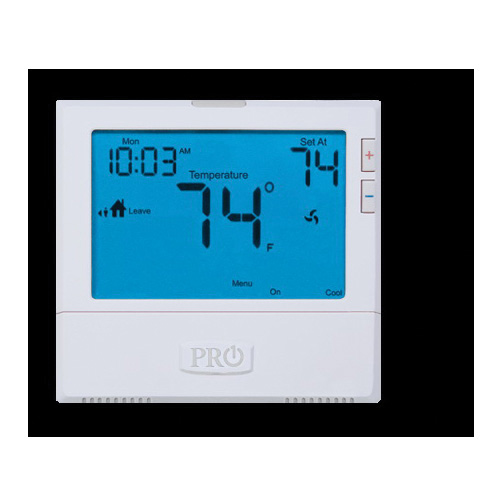

Pro1® Thermostat, Programmable Thermostat, 41 to 95 deg F Control, 0.2 to 2 deg F Differential, RH, RC, C, Y, W, G, O, B Terminal Designations, Heat/Cool/Auto/Off System Switching, Auto/On Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 5-1-1 Days Programs per Week, LCD Display, 18 to 30 VAC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, White, 4.7 in W x 1.1 in D x 4.4 in H, Import
- Auto changeover
- Easy menu driven programming
- Intuitive wake, leave, return, sleep programming icons
- 8 sq-in display
- Blue backlight
- Glow in the dark light button
- Programmable fan mode
- Electric or gas configurable
- Room temperature calibration adjustments
- Separate heating and cooling swing (cycle rate) adjustments
- Keypad lockout
- Heating and cooling set point limits
- 5 minute compressor delay protection (selectable on or off)
- Filter change indicator (selectable on or off)
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- Battery or 24 V power
- 7/5-1-1 days programs per week
