| Color | : | White |
| Control Range | : | 44 to 90 deg F |
| Dimensions | : | 4.7 in W x 1.1 in D x 4.4 in H |
| Display Type | : | LCD |
| Domestic/Import | : | Import |
| Fan Switching | : | Auto/On |
| Humidity Range | : | 90% Non-Condensing |
| Mounting Type | : | Junction Box/Wall |
| Number of Stages | : | 2 |
| Power Source | : | Battery/Hardwired |
| Stages Cool | : | 1 |
| Stages Heat | : | 1 |
| System Switching | : | Heat/Cool/Off |
| Terminal Designations | : | R, C, W/Y, G |
| Thermostat Type | : | Non-Programmable |
| Voltage Rating | : | 24 VAC |

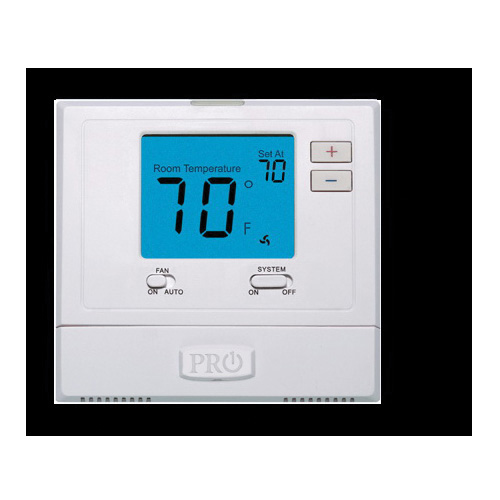

Pro1® Thermostat, Non-Programmable Thermostat, 44 to 90 deg F Control, R, C, W/Y, G Terminal Designations, Heat/Cool/Off System Switching, Auto/On Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 90% Non-Condensing Humidity, LCD Display, 24 VAC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, White, 4.7 in W x 1.1 in D x 4.4 in H, Import
- Set point range from 25 to 90 deg F (low set point is great for garage thermostats)
- Set point limits (meets building codes for garage applications)
- 4 sq-in display
- Blue backlight
- Glow in the dark light button
- Heating and cooling swing adjustments
- Easy access battery compartment
- Room temperature calibration adjustments
- Simple private label badge system
- Easy wire color coded terminal blocks
- Universal sub-base
- 41 to 95 deg F display range of temperature
- 1 A per terminal, 1.5 A maximum all terminals combined load rating
- +/- 1 deg F display accuracy
- Heating is adjustable from 0.2 to 2 deg F
- Cooling is adjustable from 0.2 to 2 deg F
- 18 to 30 VAC, NEC class II, 50/60 Hz for hardwire
- Battery power from 2 AA alkaline energizer batteries
- 32 to 105 deg F ambient operating temperature
