Pro1® T755

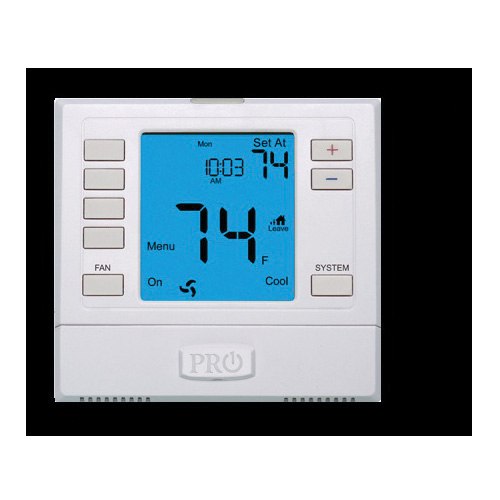

Pro1® T755 Universal Thermostat, Programmable Thermostat, 41 to 95 deg F Control, 0.2 to 2 deg F Differential, 5-1-1 Days Programs per Week, RH, RC, C, Y, Y2, W/E, W2, G, O, B Terminal, Import

Manufacturer: Pro1
Brand Name: Pro1®
Part#: T755
MPN: T755
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Control Range      :      41 to 95 deg F
Differential      :      0.2 to 2 deg F
Dimensions      :      4.7 in W x 1.1 in D x 4.4 in H
Display Type      :      LCD
Domestic/Import      :      Import
Fan Switching      :      Auto/On
Mounting Type      :      Junction Box/Wall
Number of Stages      :      5
Power Source      :      Battery/Hardwired
Programs per Week      :      5-1-1 Days
Stages Cool      :      2 Heat Pump, 2 Conventional
Stages Heat      :      2 Heat Pump, 3 Conventional
System Switching      :      Heat/Cool/Off/Emergency
Terminal Designations      :      RH, RC, C, Y, Y2, W/E, W2, G, O, B
Thermostat Type      :      Programmable
Voltage Rating      :      18 to 30 VAC

Pro1® Universal Thermostat, Programmable Thermostat, 41 to 95 deg F Control, 0.2 to 2 deg F Differential, RH, RC, C, Y, Y2, W/E, W2, G, O, B Terminal Designations, Heat/Cool/Off/Emergency System Switching, Auto/On Fan Switching, 5 Stage, 2 Heat Pump, 3 Conventional Stages Heat, 2 Heat Pump, 2 Conventional Stages Cool, 5-1-1 Days Programs per Week, LCD Display, 18 to 30 VAC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, White, 4.7 in W x 1.1 in D x 4.4 in H Dimensions, Import

  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 4 sq-in display
  • Blue backlight
  • Glow in the dark light button
  • Separate heating and cooling swing (cycle rate) adjustments
  • Electric or gas configurable
  • Separate B and O terminals
  • Filter change indicator (selectable on or off)
  • Room temperature calibration adjustments
  • 5 minute compressor delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Battery or 24 V power
  • 1 A per terminal, 1.5 A maximum all terminals combined load rating
  • +/- 1 deg F display accuracy
  • 18 to 30 VAC, NEC class II, 50/60 Hz for hardwire (common wire)
  • Battery power from 2 AA alkaline energizer batteries
  • 32 to +105 deg (0 to + 41 deg C)
