| Color | : | Red |
| Differential | : | 0.2 to 2 deg F |
| Dimensions | : | 4.7 in W x 1.1 in D x 4.4 in H |
| Display Type | : | 4 sq-in LCD |
| Domestic/Import | : | Import |
| Mounting Type | : | Junction Box/Wall |
| Number of Stages | : | 3 |
| Number of Switches | : | 2 |
| Power Source | : | Battery/Hardwired |
| Stages Cool | : | 1 |
| Stages Heat | : | 2 |
| Switch Type | : | Relay |
| Terminal Designations | : | R, C, Y, W2, E, G, B, O |
| Thermostat Type | : | Non-Programmable |
| Voltage Rating | : | 24 V AC |

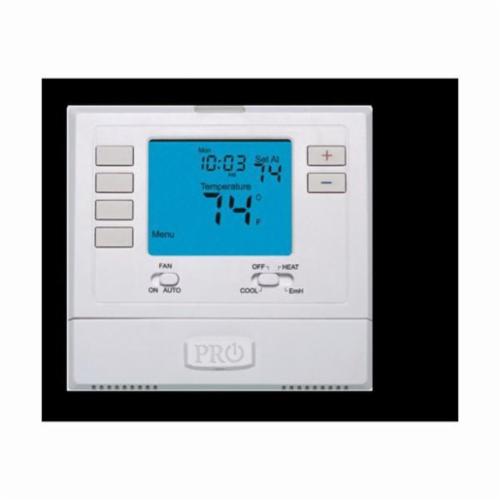

Pro1® Thermostat, Non-Programmable Thermostat, 0.2 to 2 deg F Differential, Relay Switch, 2 Switches, R, C, Y, W2, E, G, B, O Terminal Designations, 3 Stage, 2 Stages Heat, 1 Stages Cool, 4 sq-in LCD Display, 24 V AC, Battery/Hardwired Power Source, Junction Box/Wall Mounting, Red, 4.7 in W x 1.1 in D x 4.4 in H Dimensions, Import
- 4 sq-in display, blue back light glow in the dark light button, easy access battery compartment
- Electric or gas configurable, separate heating and cooling swing (cycle rate) adjustments, room temperature calibration adjustments
- 5 minute compressor delay protection (selectable on or off), simple private label badge system
- Easy wire color coded terminal blocks, universal sub-base, Mount on wall or junction box
- 32 to 105 deg F ambient operating temperature operating temperature operating temperature operating temperature
- Temperature ranges 41 to 95 deg F display range of temperature, 44 to 90 deg F control range of temperature
- Humidity range - operating 90%, non-condensing maximum
- +/- 1 deg F display accuracy, 1 A terminal, 1.5 a maximum all terminals combined load rating
- 18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire), battery power from 2 AA alkaline energizer batteries
