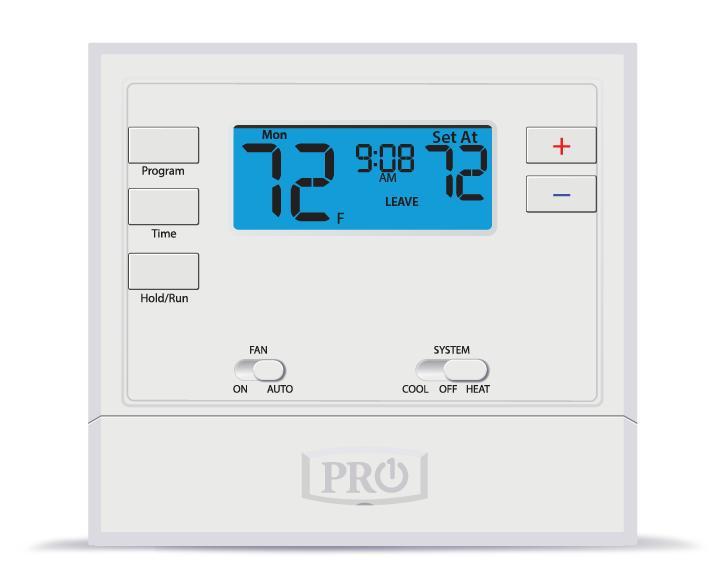

Pro1® T605-2

Pro1® T605-2 Programable Thermostat, Programmable Thermostat, 44 to 90 deg F Control, 7 or 5, 1, 1 day Programs per Week, Rc/Rh/G/Y/W/O/B Terminal

Manufacturer: Pro1
Brand Name: Pro1®
Part#: T605-2
MPN: T605-2
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Color      :      White
Control Range      :      44 to 90 deg F
Differential      :      0.2 to 2.0 deg F
Dimensions      :      4.4 in H x 4.7 in W x 1.1 in D
Display Type      :      Blue Backlit LCD
Mounting Type      :      Horizontal/Vertical
Power Source      :      Battery/Hardwired
Programs per Week      :      7 days or 5/1/1
Thermostat Type      :      Programmable
Type      :      Single Stage
Voltage Rating      :      18 to 30 VAC

Pro1®, T605-2, Programable Thermostat, Programmable Thermostat, 44 to 90 deg F Control, Rc/Rh/G/Y/W/O/B Terminal Designations, 1 Stage, 1 Stages Heat, 1 Stages Cool, 7 or 5, 1, 1 day Programs per Week, 90 % Humidity, Backlight Display, 18 to 30 VAC, 1.5 A Full Load, Wall Mounting, 4.7 in W x 4.4 in H x 1.1 in D Dimensions

  • 2 sq. inch display
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 5/1/1 programmable
  • Blue backlight
  • Separate B and O terminals
  • Separate heating and cooling swing (cycle rate) adjustments
  • Room temperature calibration adjustments
  • 5 minute compress or delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power
