PDM LGW1412-50

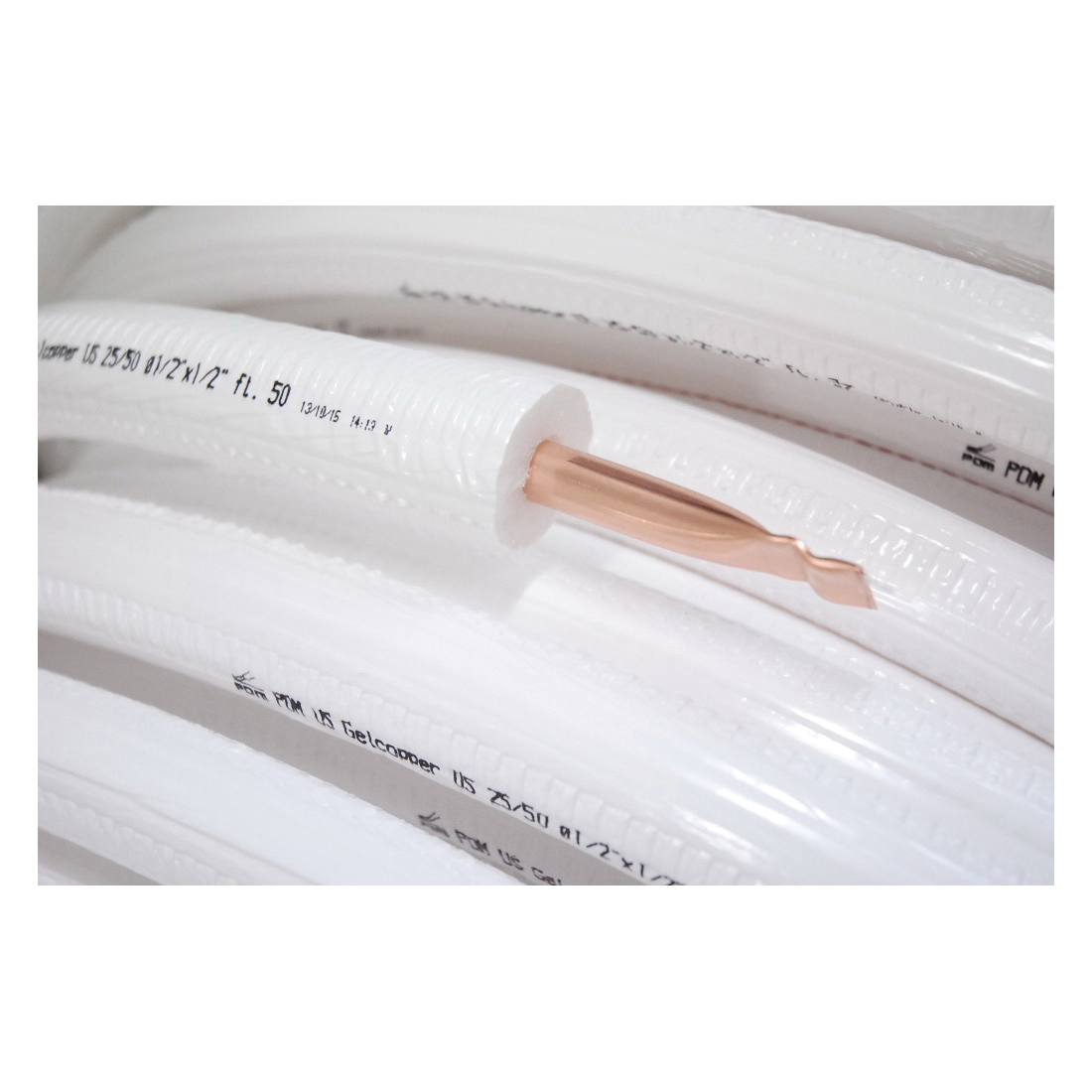

PDM GelCopper™ Line set, 1/4 in Liquid Line, 1/2 in Suction Line, 50 ft Length, 1/2 in Insulation Thickness, Copper

• Polyethylene closed cell foam: assures thermal insulation from surroundings
• ASTM C 1427-07 Grade I (insulation material for use on typical commercial system non-crosslinked)
• Low-density polyethylene foam: closed cells foam, CFC and HCFC gas free
• R value: between 6.0 and 4.0 (depending on pipe Dia)
• Copper: No C122200 DHP (phosphorous deoxidized, high residual phosphorous), 99.90%
• Outer Jacket: additional white polyethylene jacket cover protects foam insulation from tearing during installation process
• Marking: insulation incrementally marked by every foot to ensure accurate initial unit charge
• R410a approved: Gel copper can be used in applications where high-pressure gases are used as refrigeration source
• Gel copper UV resistant
• Paintable: the insulation can be painted to match the surroundings

• PDM F100 GUS788212 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PDM_F100_GUS788212_Catalog.pdf
• PDM F100 LSIN141212050 Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/PDM_F100_LSIN141212050_Specification_Sheet.pdf
