Panasonic FV08-11VFL5

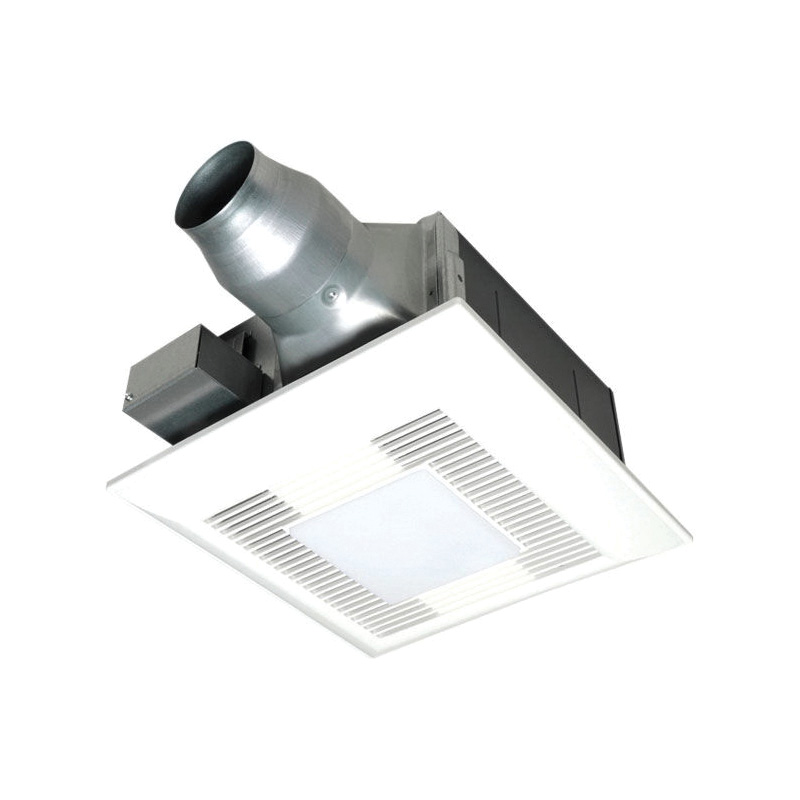

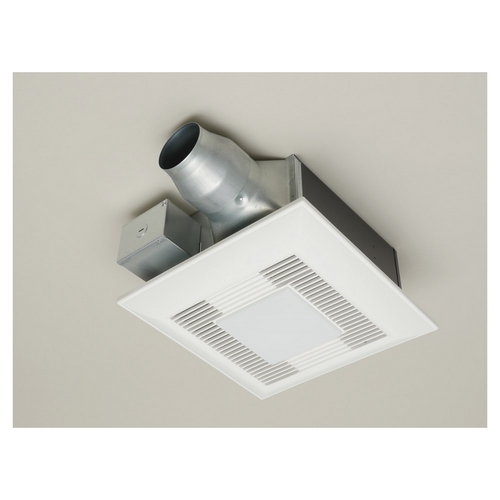

Panasonic WhisperFit® EZ FV-08-11VFL5 Bath Ventilation Fan, 80/110 cfm, 4 and 3 in Dia Duct, 20.9/26.6 W, 120 VAC, 0.18 to 0.23 A, 0.3 Sones, Import
| Color | : | White |
| Current/Amps | : | 0.18 to 0.23 A |
| Domestic/Import | : | Import |
| Duct Diameter | : | 4 and 3 in |
| Flow Rate | : | 80/110 cfm |
| Frequency Rating | : | 60 Hz |
| Grille Length | : | 13 in |
| Grille Material | : | Polypropylene |
| Grille Width | : | 13 in |
| Housing Height | : | 5-5/8 in |
| Housing Length | : | 10-1/4 in |
| Housing Material | : | Galvanized Steel |
| Housing Width | : | 10-1/4 in |
| Humidity Sensing | : | No |
| Motion Sensing | : | No |
| Mounting Type | : | Ceiling |
| Sones | : | 0.3 |
| Type | : | Bath |
| Voltage Rating | : | 120 VAC |
| Wattage Consumption | : | 20.9/26.6 W |
WhisperFit® EZ is the perfect solution for any remodeler looking to quickly and easily replace an existing fan from below the ceiling. Low profile WhisperFit® fans are an affordable choice for delivering quiet, energy efficient and effective exhaust ventilation for the many bathrooms in your portfolio. Ideal for residential remodeling and hotel new construction or renovation, these fans fit where you need to put them (even in 2x6 construction). Because Panasonic fans are long lasting, this may be the last time you need to replace them.
Panasonic WhisperFit® EZ Ventilation Fan, Bath, 80/110 cfm, 4 and 3 in Duct Dia, 120 VAC, 0.18 to 0.23 A, 60 Hz, 20.9/26.6 W, 0.3 Sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 5-5/8 in Housing Height, Galvanized Steel Housing, Ceiling Mount, Humidity Sensing: No, Motion Sensing: No, White, Import
- Pick-A-Flow™ speed selector - one fan, you choose the cfm (80 or 110)
- Flex-Z Fast™ bracket provides flexible, fast and easy installation and detachable installation adapter provides even greater flexibility
- Detachable installation adapter provides even greater flexibility
- Low profile housing design fits in 2 x 6 construction
- Lighted model features a flush mount grille with (2) 13W self ballasted GU24 base CFL lamps
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- Lighted model features 75 lpw, the highest LPW in the industry
- Fan model FV-08-11VFM5 incorporates a SmartAction® motion sensor
- 1016 Ohm-cm volume resistivity
- 0.4 s sampling time
- Round duct adapter
