METAL-FAB® 4M45

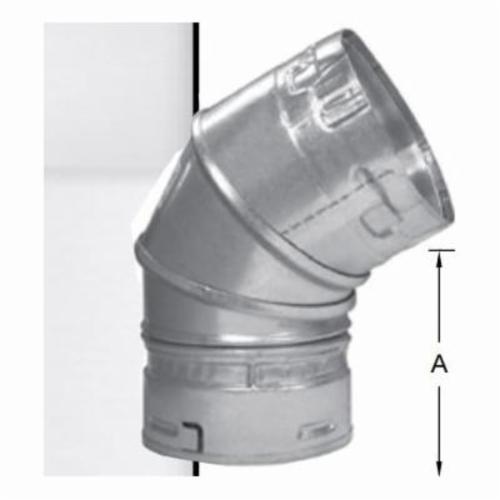

METAL-FAB® 4M45/60 Adjustable Elbow, 4 in, Hub x Spigot Connection, 45 to 60 deg, Hot Dipped Galvanized, Domestic

Manufacturer: Metal Fab
Brand Name: METAL-FAB®
Part#: 4M45
MPN: 4M45/60
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Angle      :      45 to 60 deg
Connection Type      :      Hub x Spigot
Domestic/Import      :      Domestic
Finish      :      Hot Dipped Galvanized
Length      :      12.86 in
Size      :      4 in
Suitable For Use With      :      Double Wall Type-B Gas Vent System
Type      :      Adjustable

METAL-FAB® Elbow, Adjustable, 4 in Size, Hub x Spigot Connection, 45 to 60 deg Angle, 12.86 in Length, For Use With: Double Wall Type-B Gas Vent System, Hot Dipped Galvanized, Domestic

  • Products tested and listed to UL 441 requirements to ensure safety and efficiency
  • The four-piece M45/60 short radius elbow is fully adjustable from 0 to 60 deg
  • The 360 deg rotating collar allows for desired orientation of vent pipe
  • SureLock™ locking system, no sheet metal screws required
  • The outer wall is constructed of galvanized steel, 0.018 in THK G-90 for sizes 3 to 14 in Dia and 0.024 in THK G-90 for sizes 16 to 30 in Dia
  • The inner wall is constructed of aluminum alloy, 0.012 in THK for sizes 3 to 8 in Dia and 0.018 in THK for sizes 10 to 30 in Dia
  • The vent includes an integral, annular insulating air space, 1/4 in THK for sizes 3 to 6 in Dia and 1/2 in THK for sizes 7 to 30 in Dia
