| Coil Voltage | : | 24 VAC |

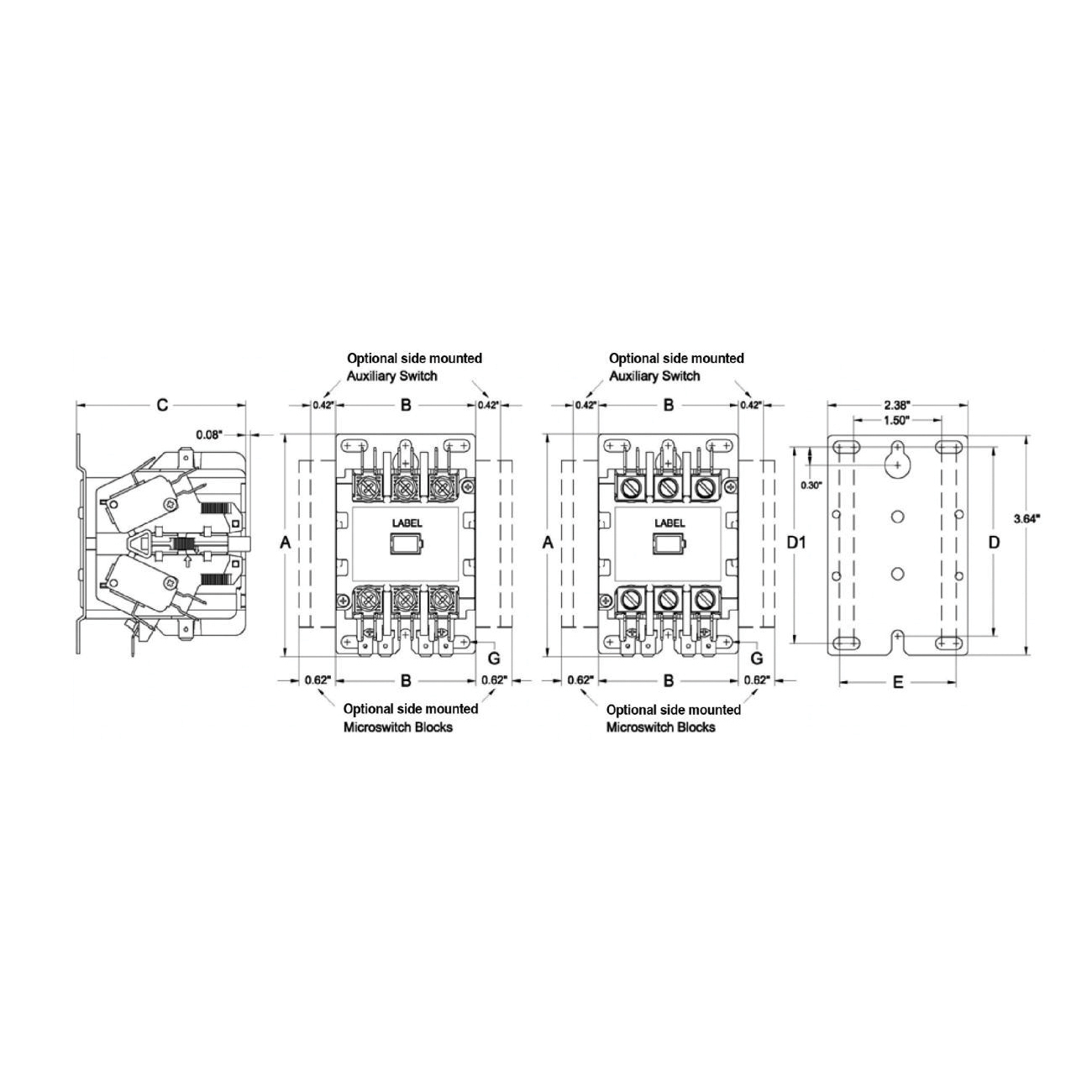

| Dimensions | : | 2.4 in W x 3.69 in D x 2.81 in H |
| Frequency Rating | : | 50/60 Hz |
| Maximum Load Current | : | 50 FLA |
| Number of Poles | : | 3 |
| Type | : | Definite Purpose |
Mars® definite purpose contactors are designed for use on refrigeration, air conditioning, and electric heating systems. They are available in one pole with shunt (one and one half pole) configurations, from 30 thru 40 A. Mars® brand definite purpose contactors are also available in 2-pole models (30 and 40 A) and 3-pole models (30 through 75 A). The universal mounting base allows replacement of most contactor brands. Straight-thru wiring and small size speeds installation.

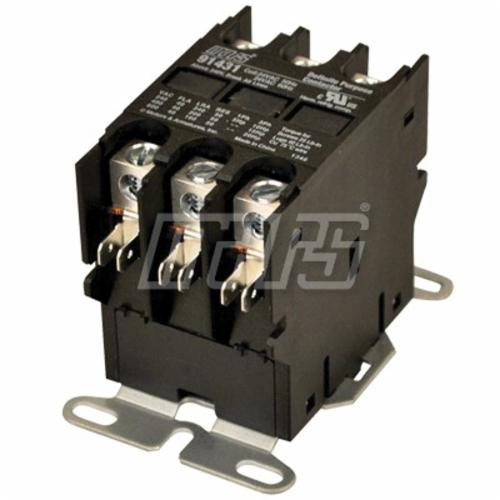

Mars® Contactor, Definite Purpose, 24 VAC Coil, 50 FLA Maximum Load Current, 3 Pole, 50/60 Hz, 2.4 in W x 3.69 in D x 2.81 in H
- Box lug terminations speed installation
- Universal mounting base
- Contact cover and enclosed coils reduce dirt and insect intrusion
- Compact design
- 40 A full load/50 A resistive
