Mars® M90970
Mars® Super-Fit™ 90970 Shaded Pole AC Motor, Open Enclosure, 35/746 hp, 120/240 VAC, 50/60 Hz, 1 ph Phase, NEMA C Frame, 2660 to 2940/3040 to 3360 rpm Speed, Horizontal/Vertical Mount
| Amperage Rating | : | 0.37/0.48 A Full Load |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open |
| Frame | : | NEMA C |
| Frequency Rating | : | 50/60 Hz |
| Horsepower | : | 35/746 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Horizontal/Vertical |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | CW |
| Shaft Size | : | 0.1875 in Dia x 2.13 in L |
| Speed | : | 2660 to 2940/3040 to 3360 rpm |
| Temperature Rating | : | 50 deg C |
| Type | : | Shaded Pole |
| Voltage Rating | : | 120/240 VAC |

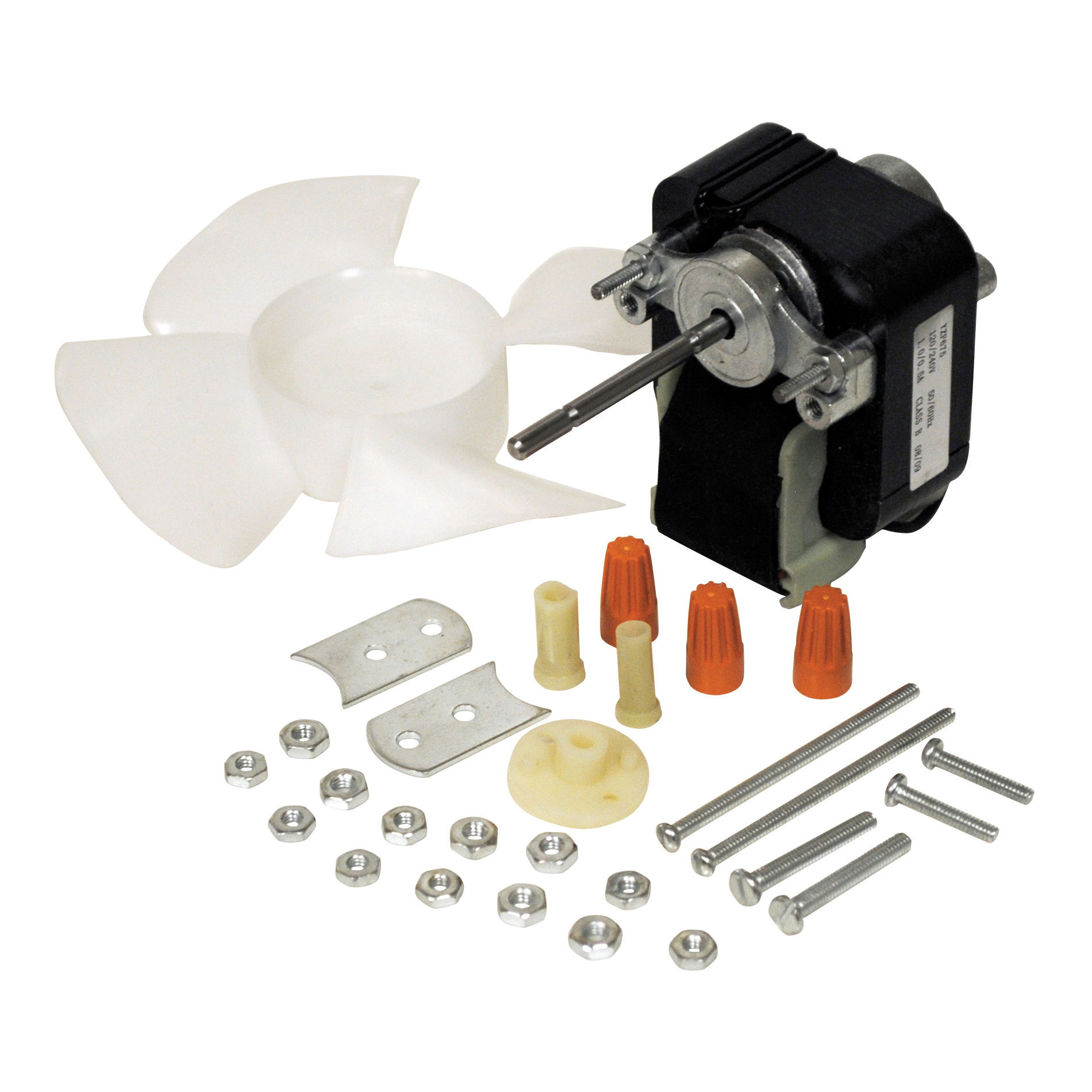

MARS 90970 Super-Fit™ commercial evaporator fan motor is the most versatile, easy-to-use, heavy-duty replacement evaporator fan motor available. MARS 90970 is the first motor of this type with a dual voltage coil so you can stock one motor for both 115 volt and 230 volt applications. The unique system of slide locator screws lets you match OEM mountings quickly and easily. The reversible 90970 features rugged, die cast bearing housings with self-aligning bearings and generous oil reservoir. The break-off shaft has adaptors to fit 1/8, 3/16, 1/4, 5/16 inch bores and hubless fan blades.
Mars® Super-Fit™ AC Motor, Shaded Pole, 35/746 hp, 120/240 VAC, 0.37/0.48 A Full Load, 50/60 Hz, 1 ph, 2660 to 2940/3040 to 3360 rpm, 1 Speed, Open, NEMA C Frame, 0.1875 in Dia x 2.13 in L Shaft, CW, Sleeve Bearing, Horizontal/Vertical Mount, 50 deg C, Insulation Class: Class B
- Dual voltage coil, 110 to 120/208 to 240 VAC
- Mechanically reversible
- Thermal overload protection
- Capacitor not included
