| Coil Voltage | : | 24 VAC |

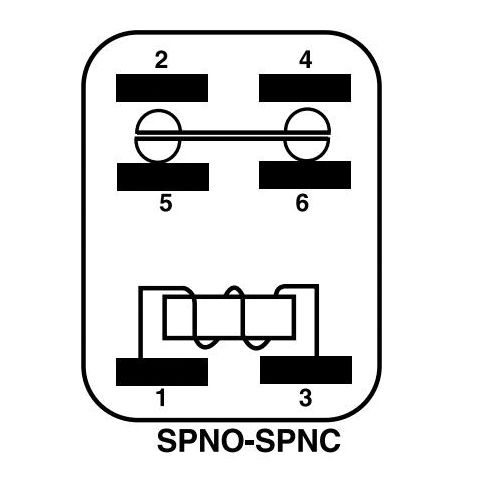

| Contact Form | : | NO-NC 1 Form A/1 Form B SPST |
| Contact Rating | : | 12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V |
| Dimensions | : | 2.056 in W x 2.5 in H |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Surface |
| Number of Poles | : | 1 |
| Series | : | 903 |
| Terminal Type | : | Quick-Connect |
| Type | : | Heavy Duty |

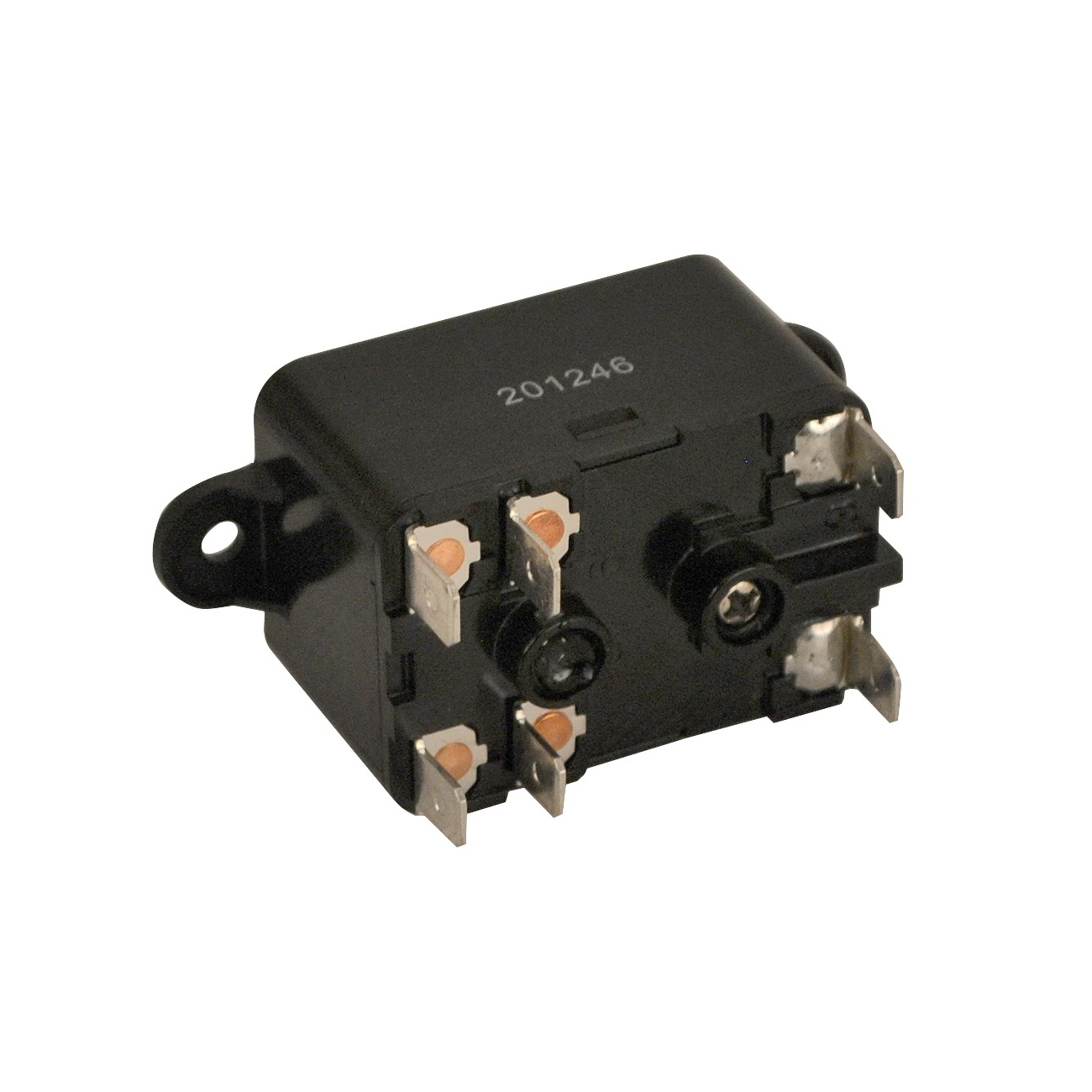

Mars® Heavy Duty Fan Relays are used on heating and air conditioning equipment to provide switching of heavier loads with a compact size relay. Mars® Heavy Duty Fan Relays replace WR/Essex/RBM type 184.
Mars® Fan Relay, Heavy Duty, Series: 903, 60 Hz Frequency, 24 VAC Coil, NO-NC 1 Form A/1 Form B SPST Contact Form, 12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V Contact, 1 Pole, Surface Mounting, Quick-Connect Terminal, 2.056 in W x 2.5 in H Dimensions
- 1/4 in quick - connect terminal
- Packaged with instructions and cross reference
- Replaces WR/Essex/RBM type 184
