| Amperage Rating | : | 15 A |
| Coil Voltage | : | 24 VAC |
| Contact Form | : | 2 Form C DPDT |
| Contact Rating | : | 3/4 hp 12 FLA/15 A/60 LRA at 120 V, 3/4 hp 6 FLA/15 A/35 LRA at 208/240 V |
| Dimensions | : | 2.13 in L x 1.88 in W x 2.25 in H |
| Frequency Rating | : | 50/60 Hz |
| Number of Poles | : | 2 |
| Series | : | 903 |
| Terminal Type | : | Double Quick-Connect |
| Type | : | General Purpose |

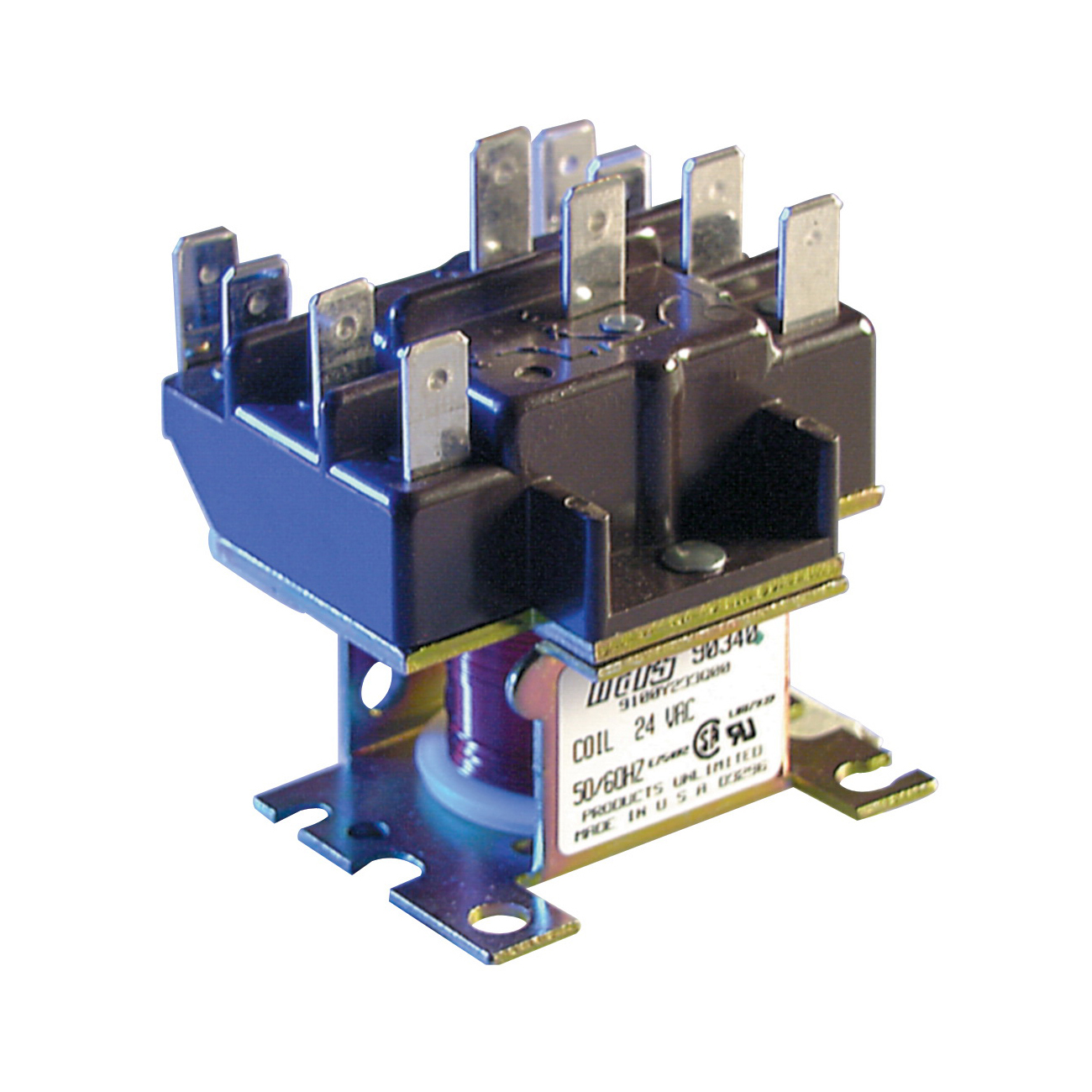

The Mars® Series 903 switching relays are intended for many applications in air conditioning, refrigeration, and heating. Other uses include general purpose switching in appliances, fan controls, and vending machines. Our relays are available in 24, 110/120 and 208/240 coil voltages with various combinations of power and pilot duty contacts.
Mars® Switching Relay, General Purpose, Series: 903, 15 A, 50/60 Hz Frequency, 24 VAC Coil, 2 Form C DPDT Contact Form, 3/4 hp 12 FLA/15 A/60 LRA at 120 V, 3/4 hp 6 FLA/15 A/35 LRA at 208/240 V Contact, 2 Pole, Double Quick-Connect Terminal, 2.13 in L x 1.88 in W x 2.25 in H Dimensions
- Replaces Honeywell and White - Rodgers/RBM - cross reference on package
- Double quick - connect terminals on coil
- Base designed for easy replacement of competitive relays
- Molded terminal numbers and circuit diagram on top of relay
