| Coil Voltage | : | 24 VAC |
| Contact Form | : | 1 Form C SPDT |
| Contact Rating | : | 12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V |
| Dimensions | : | 2.38 in L x 1.63 in W x 1.50 in H |
| Frequency Rating | : | 60 Hz |
| Mounting Type | : | Flange |
| Number of Poles | : | 1 |
| Series | : | 903 |
| Terminal Type | : | Quick-Connect/Screw |

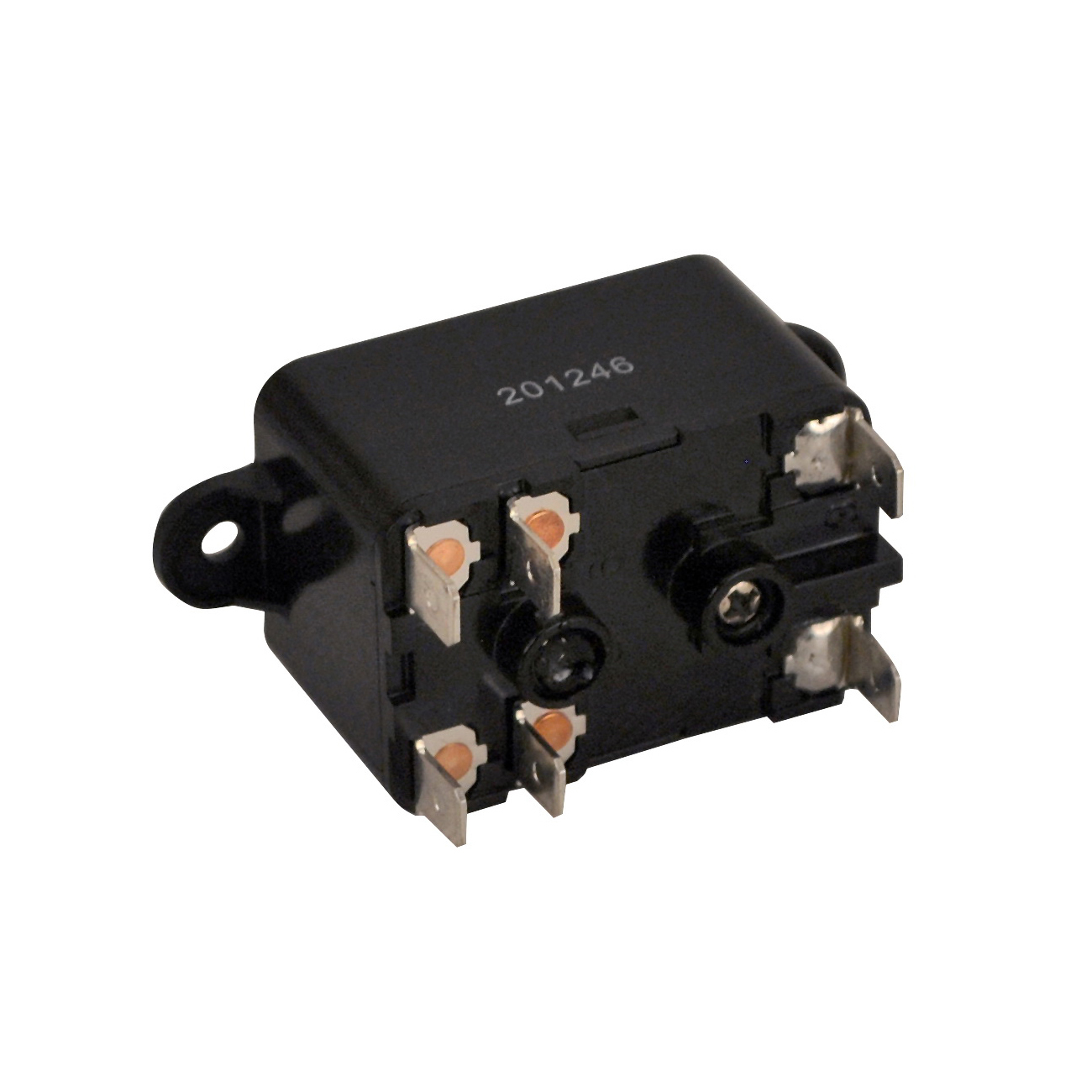

The Mars® Series 903 relays are among the most popular relays used in air conditioning today. They will replace the WR/Essex/RBM Type 84 (90-290 thru 90-295) quick-connect and screw terminal versions.
Mars® Power Fan Relay, Series: 903, 60 Hz Frequency, 24 VAC Coil, 1 Form C SPDT Contact Form, 12 FLA/60 LRA/18 A at 120 V, 8 FLA/48 LRA/18 A at 240, 7 FLA/42 LRA/18 A at 277 V Contact, 1 Pole, Flange Mounting, Quick-Connect/Screw Terminal, 2.38 in L x 1.63 in W x 1.50 in H Dimensions
- 1/4 in quick - connect terminal
- Packaged with instructions and cross reference
- Replace 90 - 290 thru 90 - 295 and 90 - 290Q thru 90 - 295Q
