| Amperage Rating | : | 60 A |
| Dimensions | : | 6 in W x 3 in D x 10.51 in H |
| Enclosure Type | : | NEMA 3R |
| Finish | : | Anti-UV Powder Coated |
| Horsepower | : | 10 hp |
| Material | : | Cold Rolled Steel |
| Phase | : | 1 |
| Type | : | Side Open Non-Fused |
| Voltage Rating | : | 240 VAC |
The Mars® Side Open Disconnect with GFCI Receptacle provides a convenient low cost means to satisfy NEC 2003 code changes requiring that a GFCI receptacle with a "while in use" cover be within a 25ft line of sight of the condenser unit. The pre-wired receptacle with stripped wire ends makes installation of disconnect and receptacle quick and easy. This unit provides a significantly lower "installed cost" to the contractor when compared to installing a standard disconnect and separate GFCI receptacle with "while in use" cover to comply with the new NEC code change.

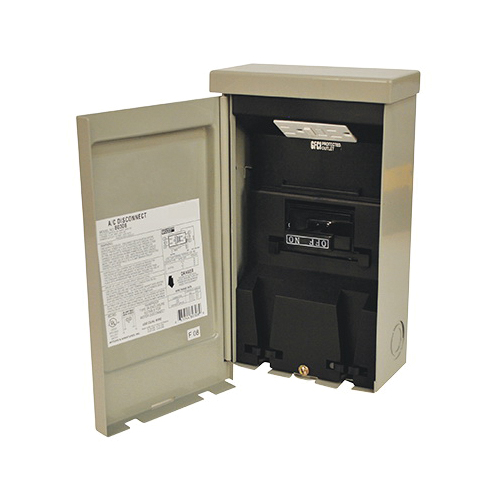

Mars® AC Disconnect Switch, Side Open Non-Fused, 240 VAC, 60 A, 10 hp, 1 ph, NEMA 3R, 6 in W x 3 in D x 10.51 in H, Cold Rolled Steel, Anti-UV Powder Coated
- Convenient electrical power cord channel w/retaining clip for easy and safe use of portable tools
- Large wiring compartment for both disconnect switch and receptacle
- Angled receptacle mounting to eliminate the possibility of crushing portable electrical plugs when closing "while in use" cover
- Attractive side opening cover design for ease of installation
- Ultra UV powder coating
- 10000 A rated
- Multiple patents pending
- Rated for 10 hp at 240 VAC
- Rain proof, NEMA 3R enclosure
