| Amperage Rating | : | 13 A |
| Coil Voltage | : | 24 VAC |
| Contact Form | : | 3 Form C 3PDT |
| Dimensions | : | 2 in L x 1-1/2 in W x 1-3/8 in H |
| Enclosure Type | : | Enclosed |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Number of Poles | : | 3 |
| Power Rating | : | 1/3 hp at 120 VAC, 1/2 hp at 240 VAC |
| Terminal Type | : | Plug-In/Solder/Quick-Connect |
| Type | : | General Purpose |
Mars® enclosed switching relays are heavy duty general purpose relays suitable for a variety of applications. They are commonly used in heating, air conditioning, vending machines, office machines, control panels and other general purpose applications. They are available in single pole, two pole and three pole models for either bracket or plug-in mounting. All Mars® enclosed switching relays are protected by a tough polycarbonate cover to keep out dust and dirt. Blade type terminals fit standard plug-in mounts plus allow use with 3/16 in quick-connect terminals or direct soldering.

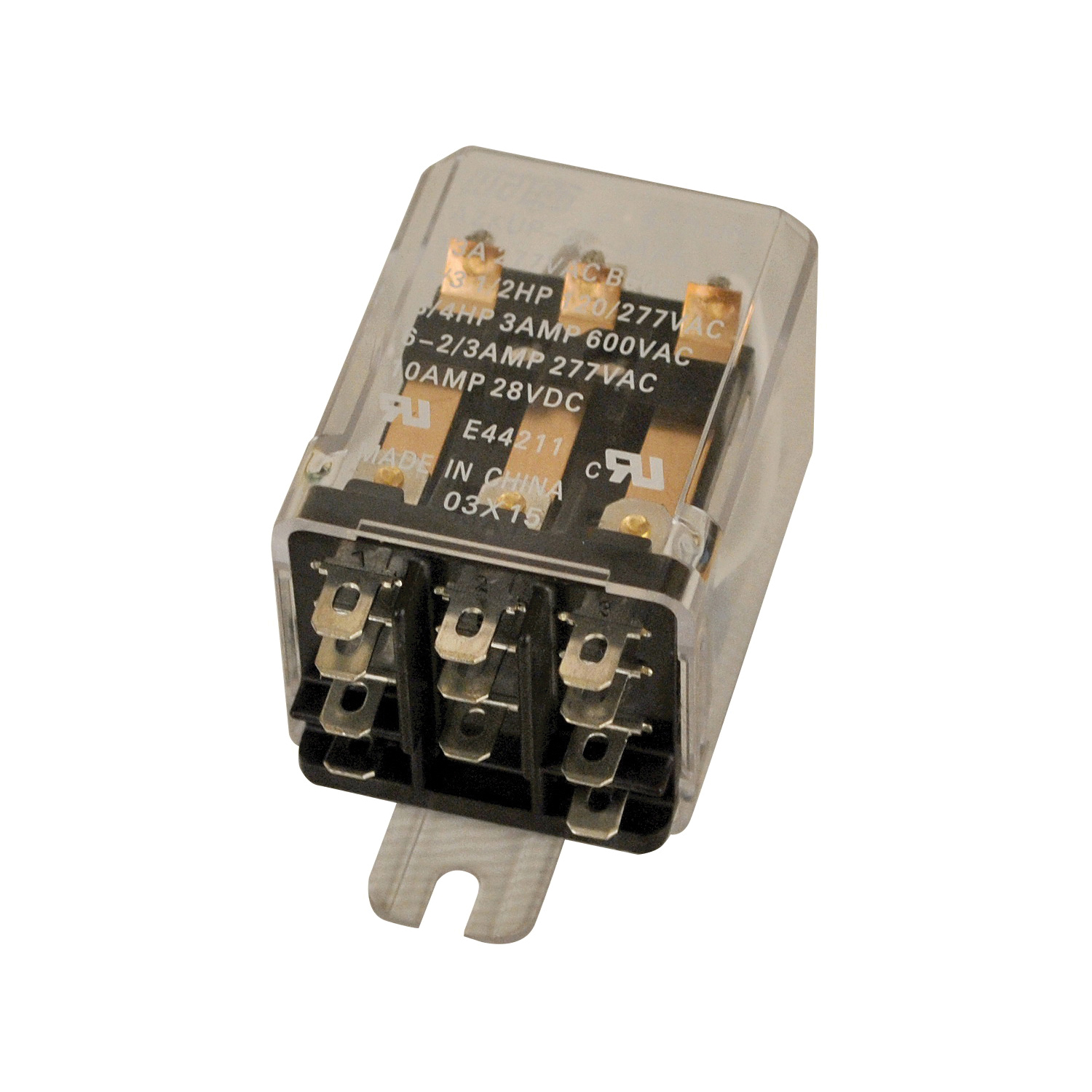

Mars® Power/Ice Cube Switching Relay, General Purpose, 13 A, 1/3 hp at 120 VAC, 1/2 hp at 240 VAC Power, 50/60 Hz Frequency, 24 VAC Coil, 3 Form C 3PDT Contact Form, 3 Pole, Panel Mounting, Plug-In/Solder/Quick-Connect Terminal, Enclosed Enclosure, 2 in L x 1-1/2 in W x 1-3/8 in H Dimensions
- Simple connections
- See - through Protective cover
- Three - way blade terminals, plug - in, quick - connect or solder
- Silver alloy contact material
