| Amperage Rating | : | 1 A Full Load |
| Application Type | : | Condenser Fan |
| Bearing Type | : | Ball |
| Enclosure Type | : | TEAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/3 hp |
| Insulation Class | : | Class F |
| Mounting Type | : | All Angle/Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | REV |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 6.5 in L |
| Speed | : | 825 rpm |
| Temperature Rating | : | 70 deg C |
| Type | : | PSC |
| Voltage Rating | : | 460 V |

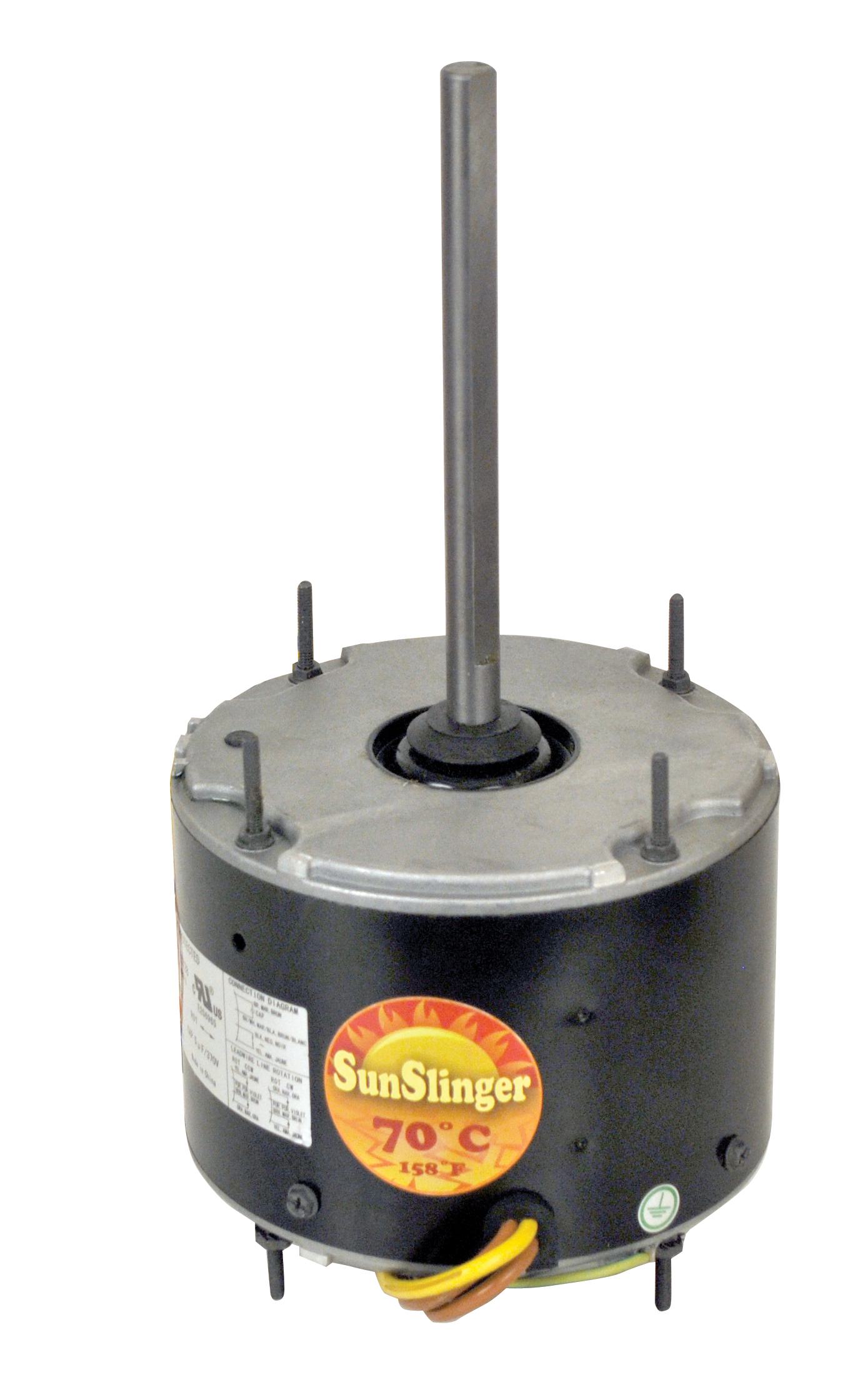

Mars®, 20881, AC Motor, PSC, Condenser Fan Application, 1/3 hp, 460 V, 1 A Full Load, 60 Hz Frequency, 1 ph, 825 rpm Speed, 1 Speed, TEAO Enclosure, 48 Frame, 1/2 in Dia x 6.5 in L Shaft, REV Rotation, 1 Service Factor, Ball Bearing, All Angle/Thru-Bolt Mounting, 70 deg C
- Thermal Overload, Continuous Duty
- Ball Bearing, Single Phase
- Rheem mounting holes with screws installed
- Trane 4.33 bolt circle mtg holes with self tap screws
- Thru Bolt or Band Mounting
- Water Slinger on shaft
