| Amperage Rating | : | 2 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | TENV |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 3/4 hp |
| Insulation Class | : | Class F |
| Mounting Type | : | All Angle/Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 70 deg C |
| Voltage Rating | : | 460 VAC |

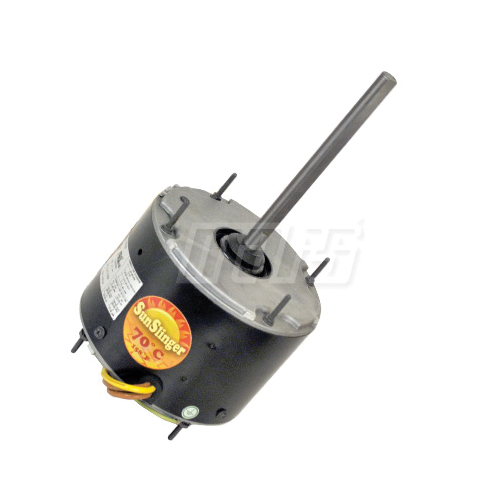

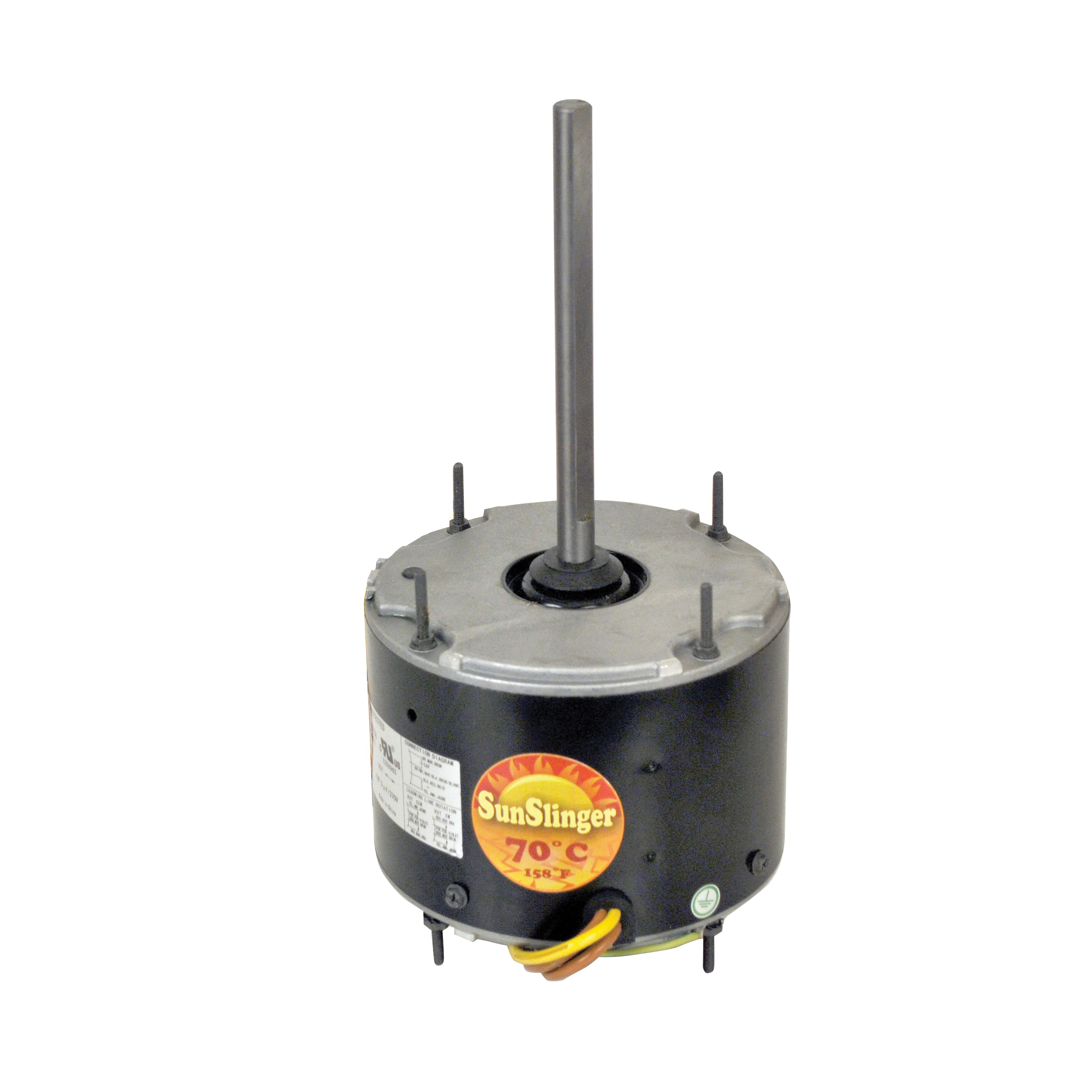

MARS 70 deg C SunSlinger totally enclosed outdoor condenser fan motors are designed for all angle air conditioning or heat pump applications. A weep hole is provided in each end shield to allow condensate to drain.
Mars® Condenser Fan Motor, Condenser Fan Motors Application, 3/4 hp, 460 VAC, 2 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TENV Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, Ball Bearing, All Angle/Thru-Bolt Mounting, 70 deg C, Insulation Class: Class F, 5-1/2 in Dia Dimensions
- Rheem® mounting holes with screws installed
- Trane® 4.33 in bolt circle mounting holes with self-tapping screws
- Extended thru-bolt or band mounting and extra nut
- Capacitor requirement noted on motor label
- Water slinger on shaft
- End shield drain holes with plug
- Thermal overload protection
- Capacitor not included
- 10 uF at 440 VAC capacitor required
