| Amperage Rating | : | 3.6 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | DP |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/2 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle |
| Number of Speeds | : | 2 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 70 deg C |
| Voltage Rating | : | 208 to 230 VAC |

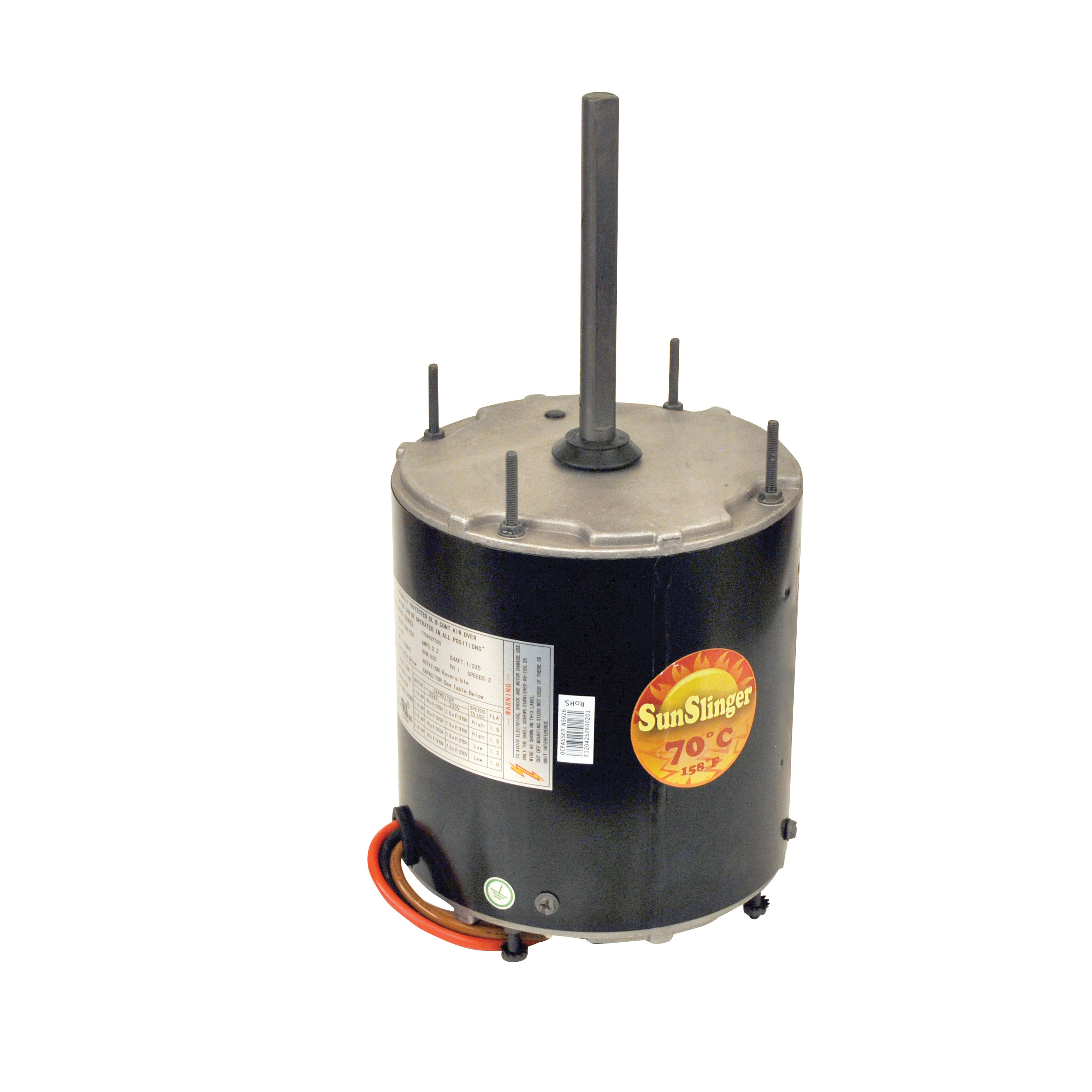

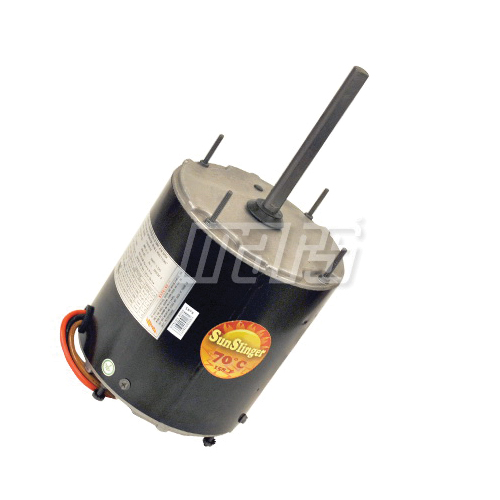

Mars® 70 deg C multi-horsepower SunSlinger condenser fan motors are ideal for truck stock. They are designed to provide reliable operation in a wide range of ambient temperatures. Three 1075 RPM models cover 208-230 volt applications from 1/6 to 1/2 HP. Two 825 RPM models cover 208-230 volt applications from 1/8 to 1/3 HP.
Mars® Condenser Fan Motor, Condenser Fan Motors Application, 1/2 hp, 208 to 230 VAC, 3.6 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 2 Speed, DP Enclosure, 48 Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, Ball Bearing, All Angle Mounting, 70 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Rheem® shell mounting holes with screws installed
- Trane® 4.33 in bolt circle mounting holes with self-tapping screws
- Thru-bolt or band mounting
- Water slinger on shaft
- Extra set of nuts on mounting studs
- Automatic thermal overload protected
- Fan duty, continuous, air-over
- Multi-rated hp: 1/5 to 1/2 hp
- Capacitor not included
- 10/12.5 uF at 370 VAC capacitor required
