Mars® M10865

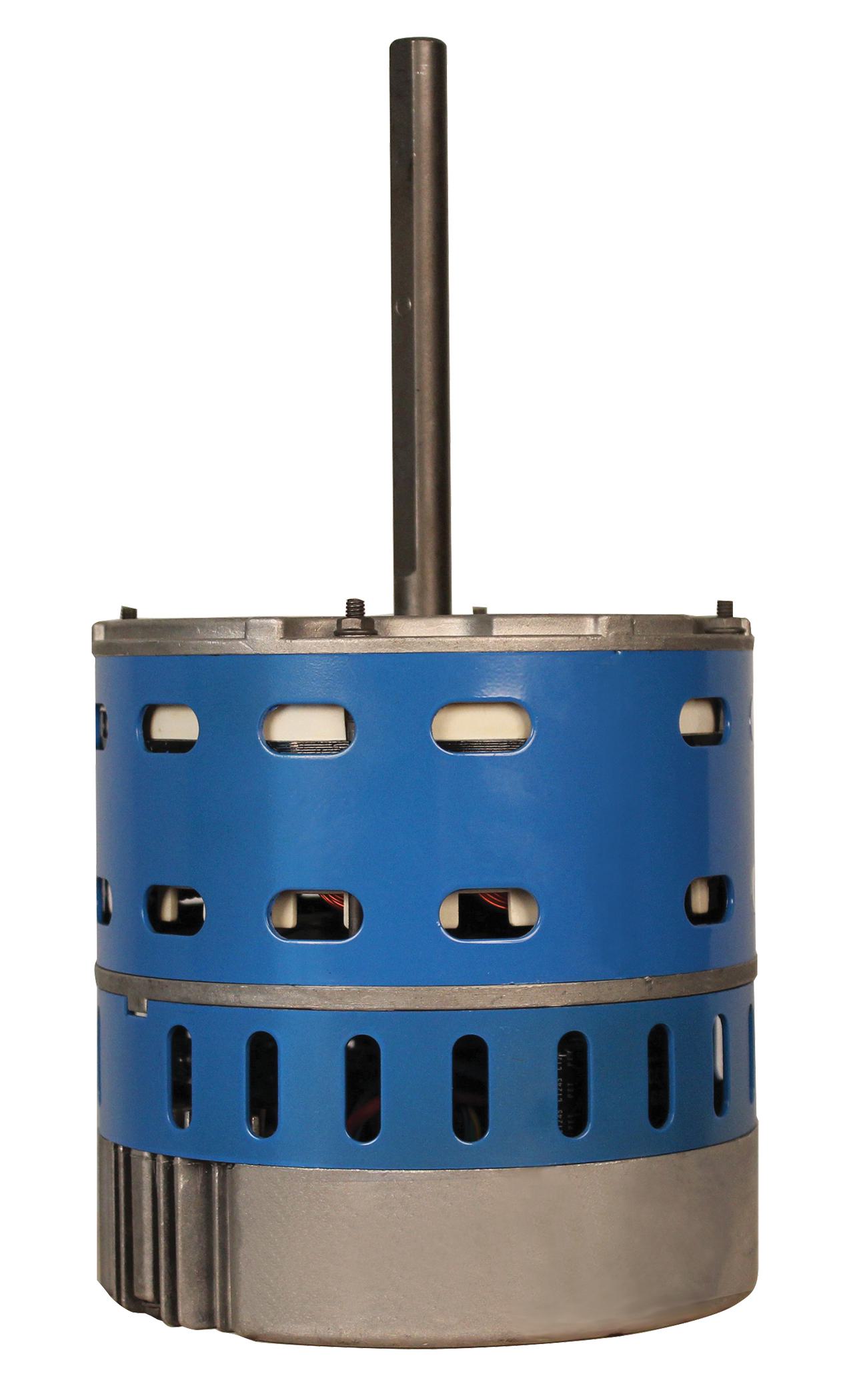

Mars® 10865 ECM AC Motor, OAO Enclosure, 1/2 hp, 120, 240 V, 60/50 Hz, 1 Phase , 48 Frame, Belly Band Mount

Manufacturer: Mars
Brand Name: Mars®
Part#: M10865
MPN: 10865
Min. Order Qty: 1
Login for Availability
Login for Price
Add / Remove CPN
Amperage Rating      :      6.4/3.8 A Full Load
Bearing Type      :      Ball
Enclosure Type      :      OAO
Frame      :      48
Frequency Rating      :      60/50 Hz
Horsepower      :      1/2 hp
Insulation Class      :      Class B
Mounting Type      :      Belly Band
Number of Speeds      :      5
Phase      :      1
Rotation      :      REV+FWD
Shaft Size      :      1/2 in Dia x 4.94 in L
Temperature Rating      :      55 deg C
Type      :      ECM
Voltage Rating      :      120, 240 V

Mars®, 10865, AC Motor, ECM, 1/2 hp, 120, 240 V, 6.4/3.8 A Full Load, 60/50 Hz Frequency, 1 ph, 5 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia x 4.94 in L Shaft, REV+FWD Rotation, Belly Band Mounting, 55 deg C

  • Azure ECM Direct Drive PSC
  • Replaces All PSC Motors
  • Azure connects directly to OEM harnesses
  • Ball bearing, Thermal Overload Protection
  • Airflow Adjustment - 08502 Hand Held Programmer
  • High efficiency 85 Percent
  • Ultimate Truck Stock
