| Amperage Rating | : | 0.75 A Full Load |
| Application Type | : | Condenser Fan Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5 in Dia |
| Enclosure Type | : | TEAO |
| Frame | : | 42 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/8 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | All Angle/Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 3 in L |
| Speed | : | 1075 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 VAC |

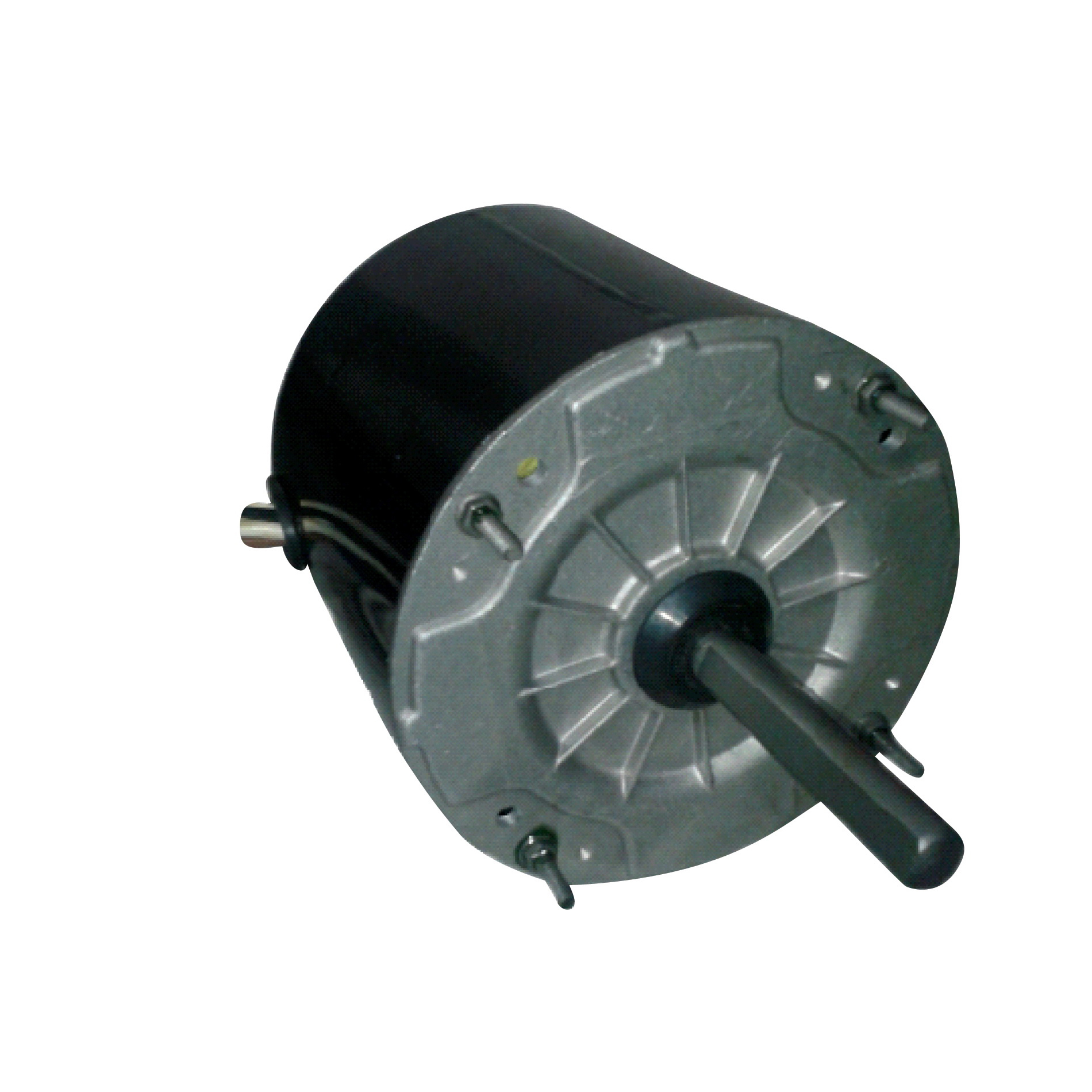

Mars® 42 frame Super-Fit™ multi-horsepower condenser fan motors are ideal for truck stock. Two models cover 208-230V applications from 1/12 HP through 1/4 HP replacing many AOS, Westinghouse, Fasco, Emerson and GE motor designs.
Mars® Condenser Fan Motor, Condenser Fan Motors Application, 1/8 hp, 208 to 230 VAC, 0.75 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 1 Speed, TEAO Enclosure, 42 Frame, 1/2 in Dia x 3 in L Shaft, Reversible Rotation, Ball Bearing, All Angle/Thru-Bolt Mounting, 60 deg C, Insulation Class: Class B, 5 in Dia Dimensions
- Super-Fit™ mounting holes for Trane® 4.33, 4.42 and 4.62 bolt circle mounting
- Capacitor requirement noted on motor label
- Flatted shaft
- Continuous air-over
- Multi-rated hp: 1/8, 1/10, 1/12 hp
- Continuous duty
- Capacitor not included
- 5 uF at 370 VAC capacitor required
