| Amperage Rating | : | 4.3 A Full Load |
| Application Type | : | Fan & Blower Motors |
| Bearing Type | : | Ball |
| Dimensions | : | 5-1/2 in Dia |
| Enclosure Type | : | OAO |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/4 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Bracket/Thru-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | Reversible |
| Service Factor | : | 1.35 |
| Shaft Size | : | 0.5 in Dia x 1.85 in L |
| Speed | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 VAC |

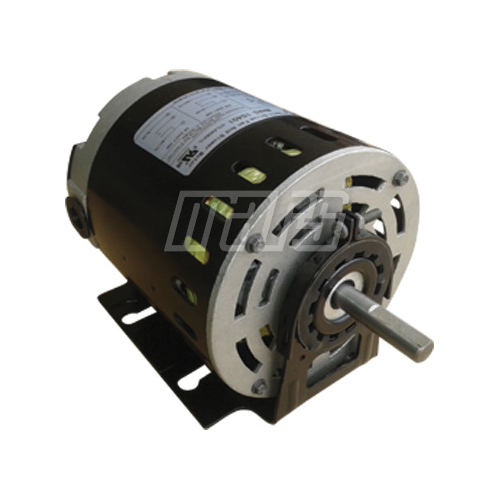

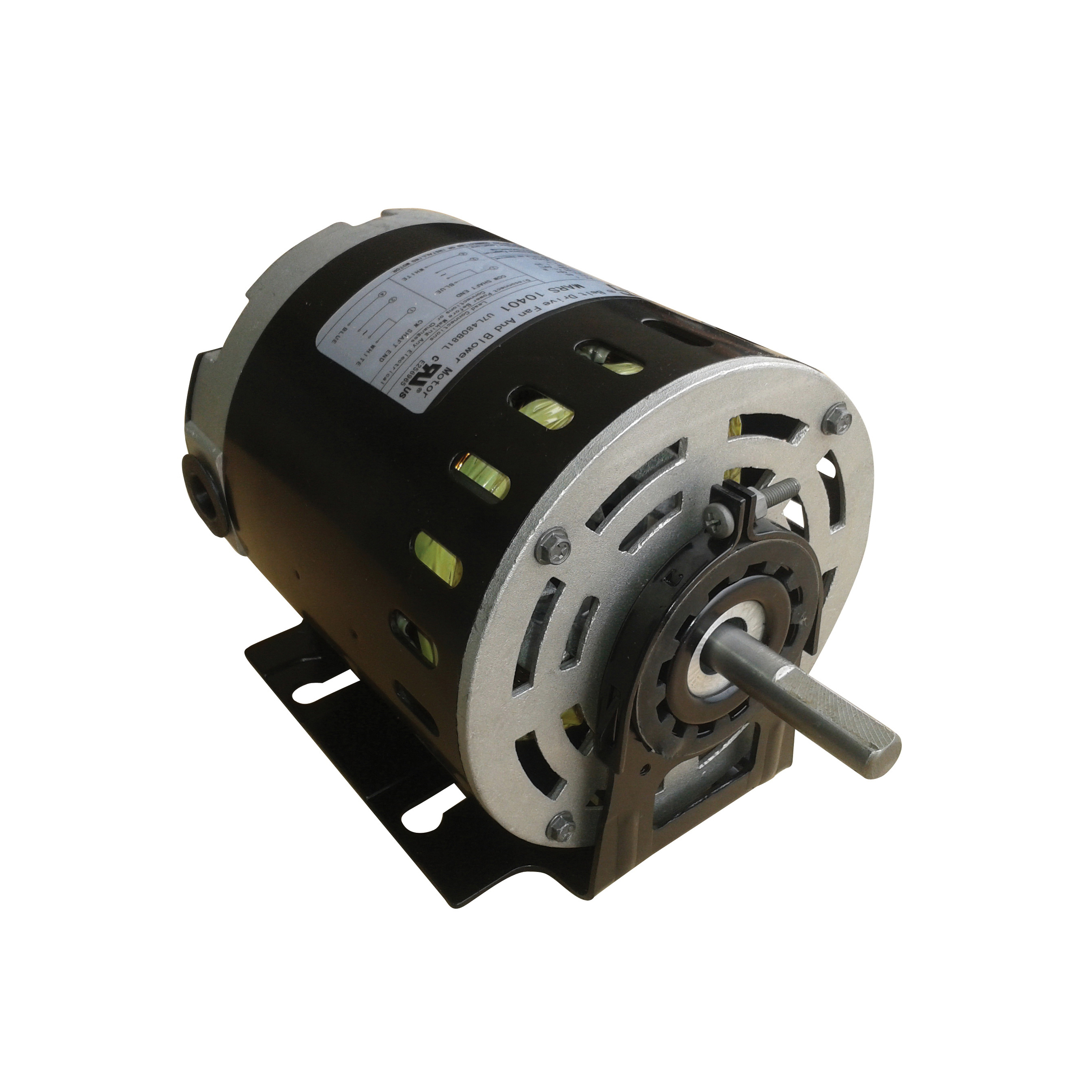

MARS belted blower motors are designed to meet manufacturer's requirements for belted fan or blowers.
Mars® Belted Fan and Blower Motor, Fan & Blower Motors Application, 1/4 hp, 115 VAC, 4.3 A Full Load, 60 Hz Frequency, 1 ph, 1725 rpm Speed, 1 Speed, OAO Enclosure, 48 Frame, 0.5 in Dia x 1.85 in L Shaft, Reversible Rotation, 1.35 Service Factor, Ball Bearing, Bracket/Thru-Bolt Mounting, 40 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
- Slotted holes in base match 48 or 56 frame bolt patterns
- Continuous duty
- Automatic thermal overload protected
- Capacitor not included
