Mars® M09917

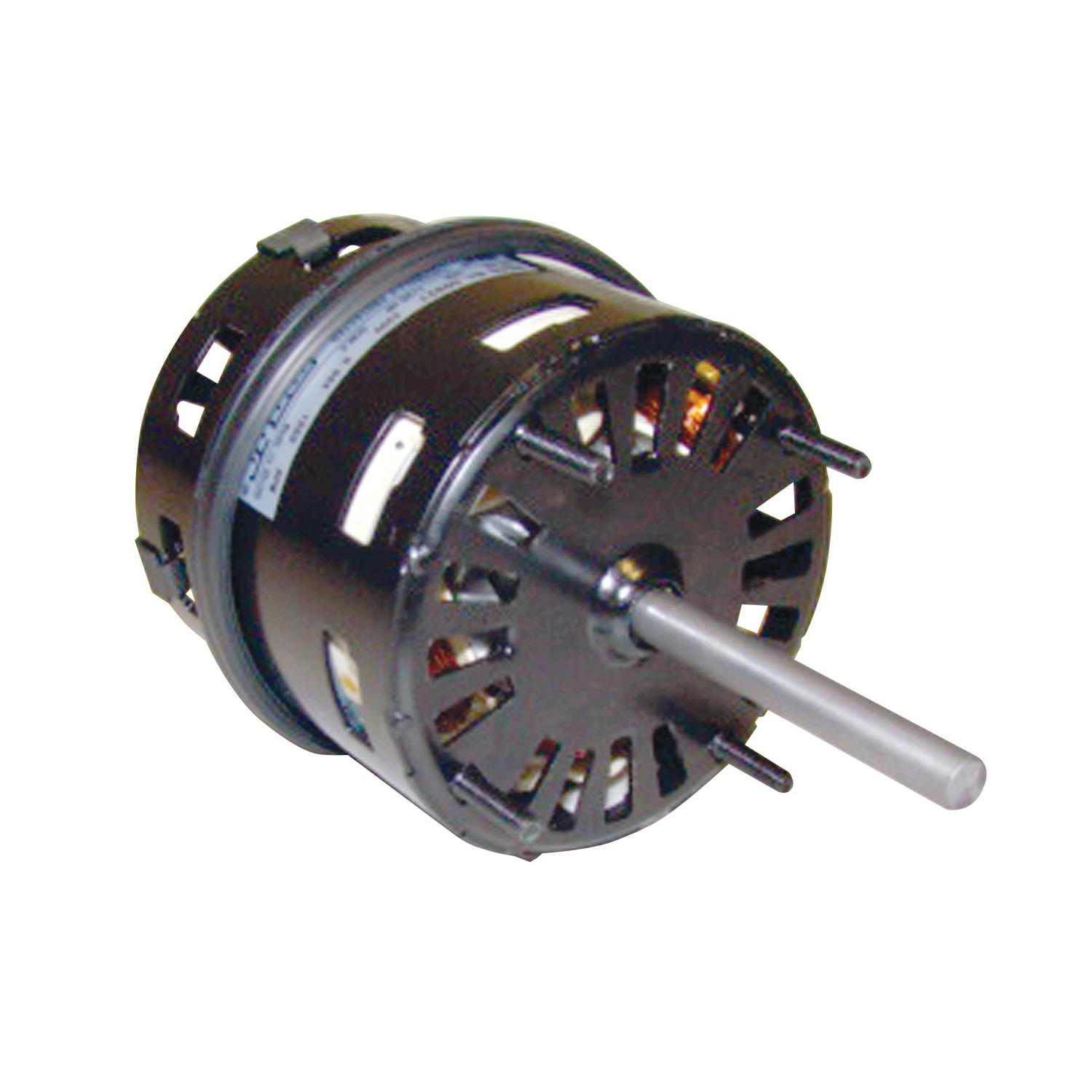

Mars® Super-Fit™ 09917 Shaded Pole Refrigeration Fan Motor, Open Enclosure, 1/20 hp, 115 VAC, 60 Hz, 1 ph Phase, NEMA 3.3 Frame, 1550 rpm Speed, Through Bolt Mount
Manufacturer: Mars
Brand Name: Mars®
Part#: M09917
MPN: 09917
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
| Amperage Rating | : | 1.7 A Full Load |
| Application Type | : | Refrigeration Motors |
| Bearing Type | : | Sleeve |
| Dimensions | : | 3.3 in Dia |
| Enclosure Type | : | Open |
| Frame | : | NEMA 3.3 |
| Frequency Rating | : | 60 Hz |
| Horsepower | : | 1/20 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Through Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 |
| Rotation | : | CW |
| Shaft Size | : | 5/16 in Dia x 2-1/2 in L |
| Speed | : | 1550 rpm |
| Temperature Rating | : | 40 deg C |
| Type | : | Shaded Pole |
| Voltage Rating | : | 115 VAC |
Mars® Super-Fit™ Refrigeration Fan Motor, Shaded Pole, Application Type: Refrigeration Motors, 1/20 hp, 115 VAC, 1.7 A Full Load, 60 Hz, 1 ph, 1550 rpm, 1 Speed, Open, NEMA 3.3 Frame, 5/16 in Dia x 2-1/2 in L Shaft, CW, Sleeve Bearing, Through Bolt Mount, 40 deg C, Insulation Class: Class B, 3.3 in Dia
- Adaptable to front or rear mount
- All-angle operation
- Full flatted black oxide shafts
- Automatic thermal protection
- Capacitor not included
