Mars® M05822

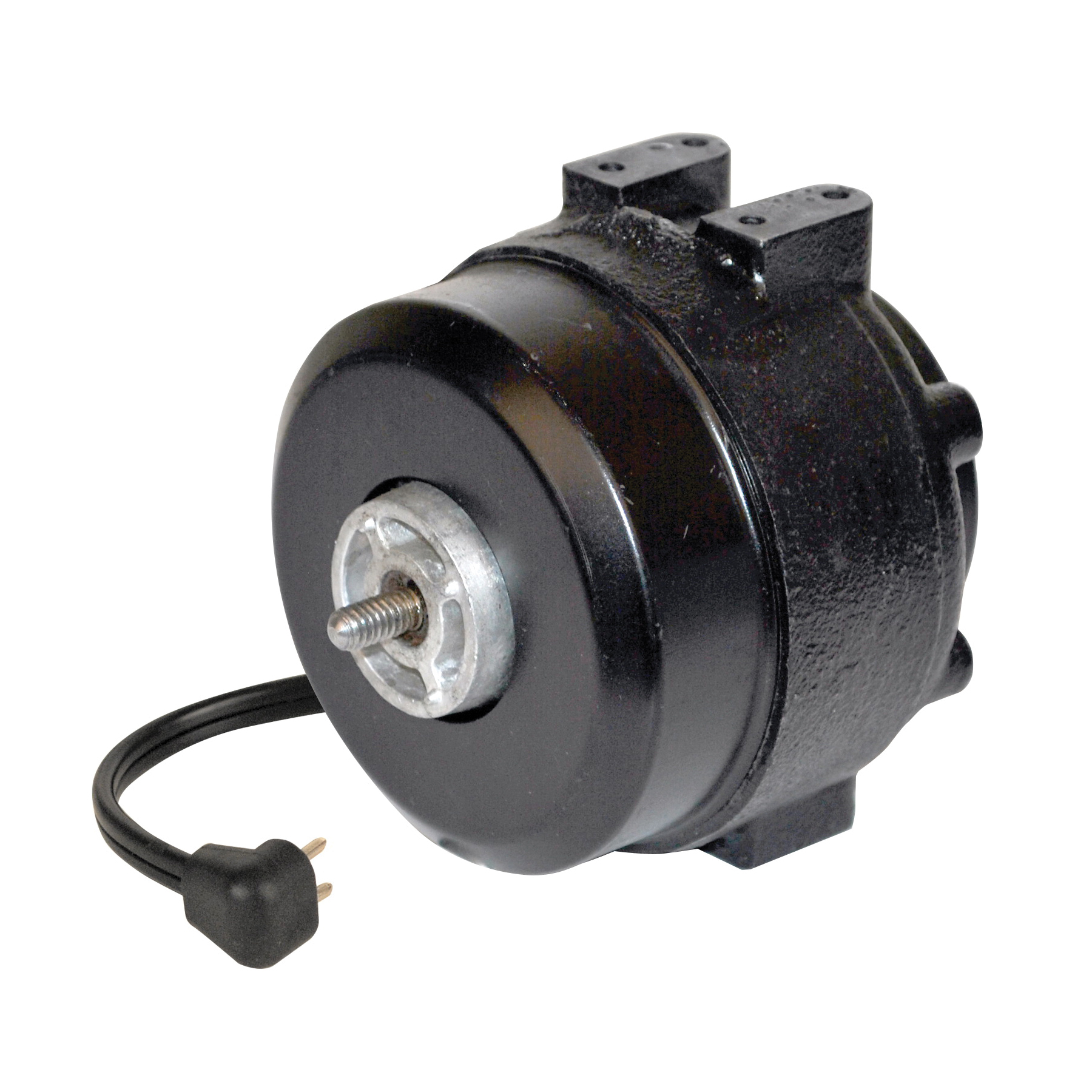

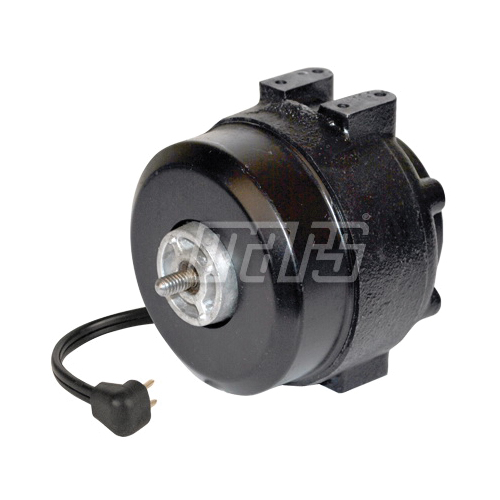

Mars® 05822 Shaded Pole AC Motor, TEFC Enclosure, 230 VAC, 50/60 Hz, 1 ph Phase, NEMA 51 Frame, 1550 rpm Speed, All Angle Mount

Manufacturer: Mars
Brand Name: Mars®
Part#: M05822
MPN: 05822
Min. Order Qty: 1
Sold As: EACH
Login for Availability
Login for Price
Amperage Rating      :      0.48 A Full Load
Application Type      :      Refrigeration Motors, Fan & Blower Motors
Bearing Type      :      Unit
Dimensions      :      3-1/2 in Dia
Enclosure Type      :      TEFC
Frame      :      NEMA 51
Frequency Rating      :      50/60 Hz
Insulation Class      :      Class B
Material      :      Cast Iron
Mounting Type      :      All Angle
Number of Speeds      :      1
Phase      :      1
Rotation      :      CCW
Shaft Size      :      0.25 in Dia x 0.66 in L
Speed      :      1550 rpm
Temperature Rating      :      125 deg C
Type      :      Shaded Pole
Voltage Rating      :      230 VAC

Mars® AC Motor, Shaded Pole, Refrigeration Motors, Fan & Blower Motors Application, 230 VAC, 0.48 A Full Load, 50/60 Hz Frequency, 1 ph ph, 1550 rpm Speed, 1 Speed, TEFC Enclosure, NEMA 51 Frame, 0.25 in Dia x 0.66 in L Shaft, CCW Rotation, Unit Bearing, All Angle Mounting, 125 deg C, Insulation Class: Class B, Cast Iron, 3-1/2 in Dia Dimensions

  • Packed with vibration dampener, speed nut and screws
  • Fan duty, continuous, air-over
  • Automatic reset thermal overload protection
  • 1/4-20 threaded shaft
  • Capacitor not included
  • Mars 30004 Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Mars_30004_Catalog.pdf
