| Amperage Rating | : | 0.95 A Full Load |
| Application Type | : | Refrigeration Motors, Fan & Blower Motors |
| Bearing Type | : | Unit |
| Enclosure Type | : | TEFC |
| Frame | : | NEMA 51 |
| Frequency Rating | : | 50 to 60 Hz |
| Insulation Class | : | Class B |
| Material | : | Cast Iron |
| Mounting Type | : | Pad/Foot/5-Rear Hole |
| Number of Speeds | : | 1 |
| Phase | : | 1 pH |
| Rotation | : | CCW |
| Shaft Size | : | 1/4 in Dia x 0.66 in L |
| Speed | : | 1550 rpm |
| Temperature Rating | : | 125 deg C |
| Type | : | Shaded Pole |
| Voltage Rating | : | 115 V |

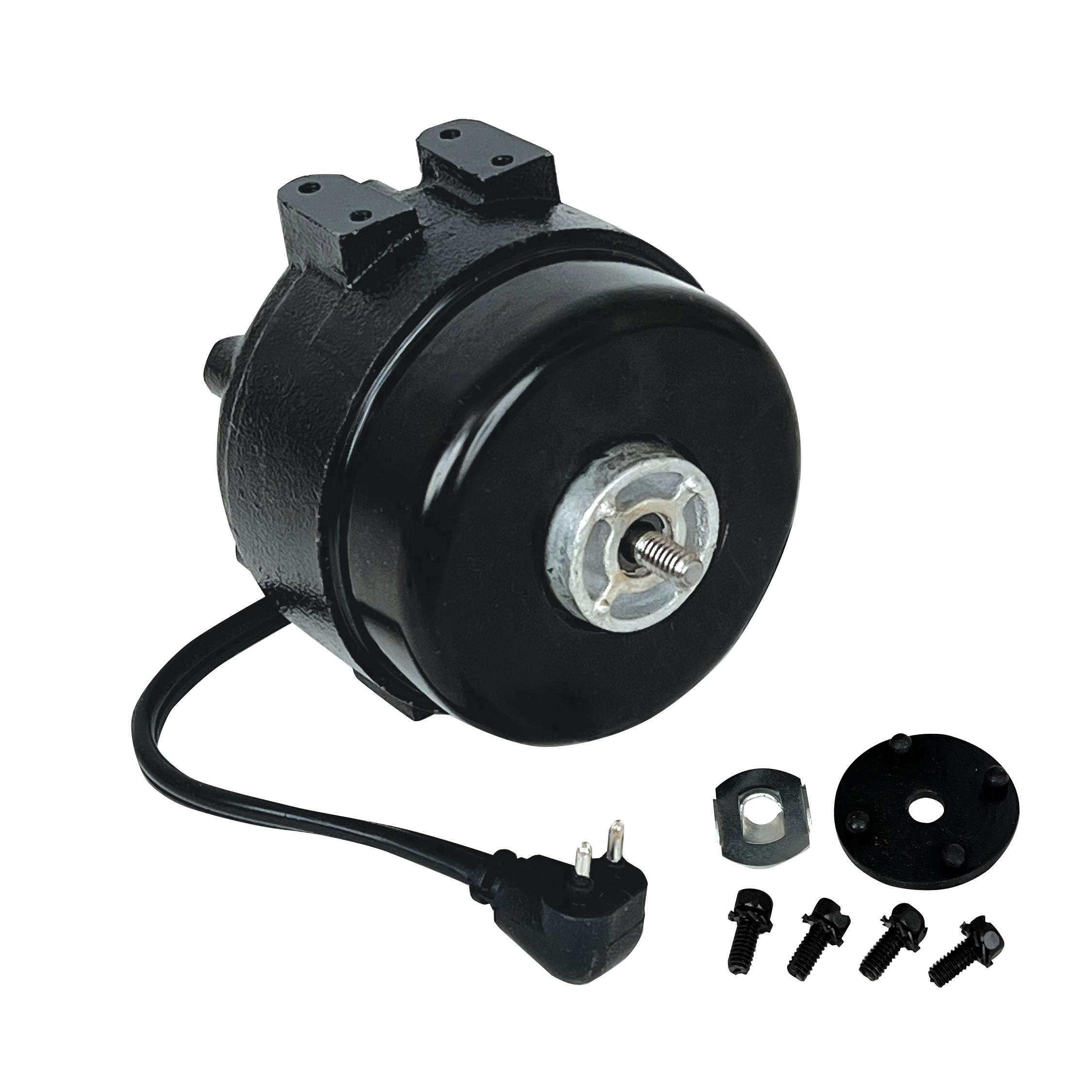

Mars®, 05812, Motor, Shaded Pole, Refrigeration Motors, Fan & Blower Motors Application, 115 V, 0.95 A Full Load, 50 to 60 Hz Frequency, 1 ph, 1550 rpm Speed, 1 Speed, NEMA 51 Frame, 1/4 in Dia x 0.66 in L Shaft, CCW Rotation, Unit Bearing, Pad/Foot/5-Rear Hole Mounting, 125 deg C, Cast Iron
- Use on refrigerators, freezers, food & beverage coolers, vending machines, display cases, and many other fan duty applications
- Packed with vibration dampener, speed nut & screws
